1 3 times peak power, excellent loading capability.

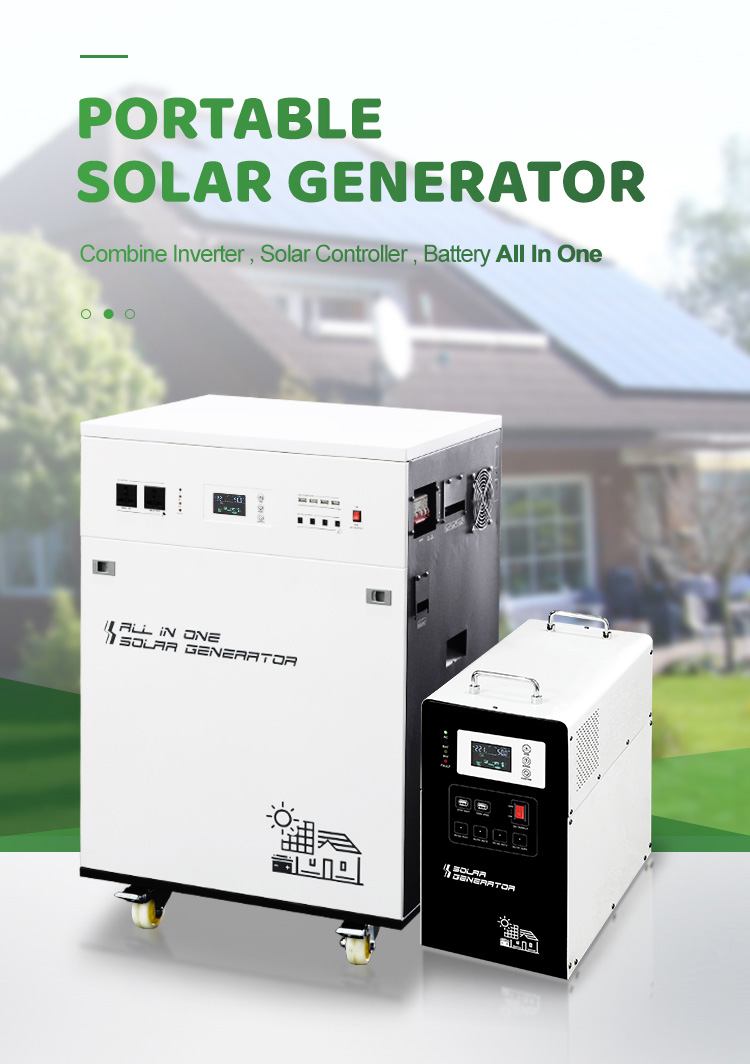

2 Solar inverter generator combine inverter/solar controller/battery all in one.

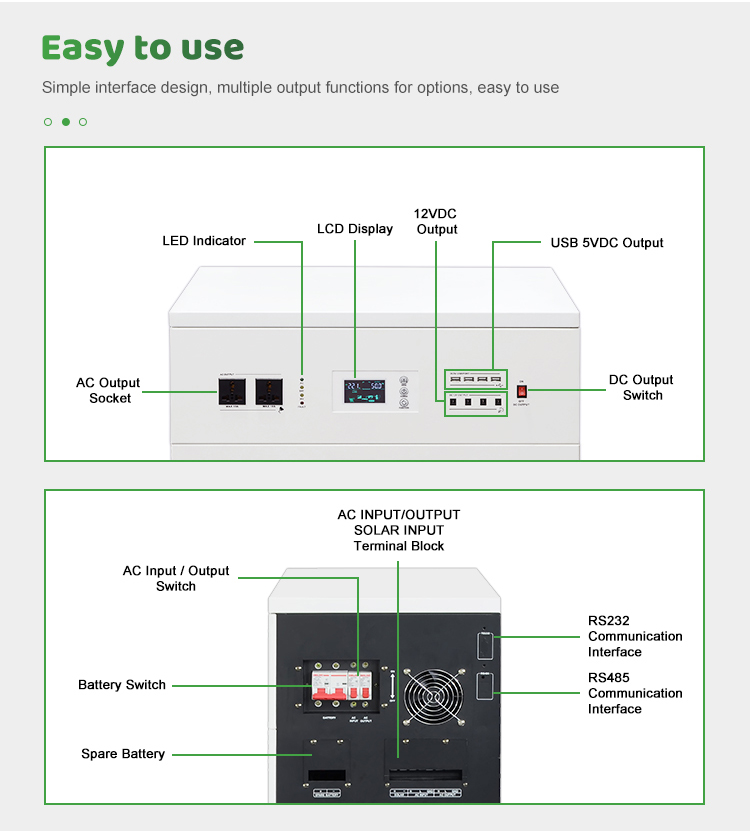

3 Multiple output: 1*AC output socket, 4*DC 12V, 2*USB.
4 Working mode AC prior/ECO mode/Solar prior selectable.
5 AC charging current 0-30A selectable.
6 LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7 Adding fault code to monitor real-time work situations.
8 Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9 Digital LCD and LED for visualization of operation status of the equipment.
0 Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
| Specification | ||||
| Capacity | Rated power | 1500W | 2000W | 3000W |
| Peak power(20ms) | 4500VA | 6000VA | 9000VA | |
| Input | Stardard battery voltage | 24VDC | ||
| AC input voltage range | 85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC) / 190VAC~295VAC (240VAC) |
|||
| AC input frequency range | 45Hz~55Hz(50Hz);55Hz~65Hz(60Hz) | |||
| Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) | ||
| AC Output voltage | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode) |
|||
| AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |||
| AC Output waveform | Pure Sine Wave | |||
| THD | ≤3%(Linear load) | |||
| DC Output voltage | 4*DC 12V; 4*USB(5V) | |||
| AC charger | AC charging current | 0~30A(Depends on model) | ||
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||

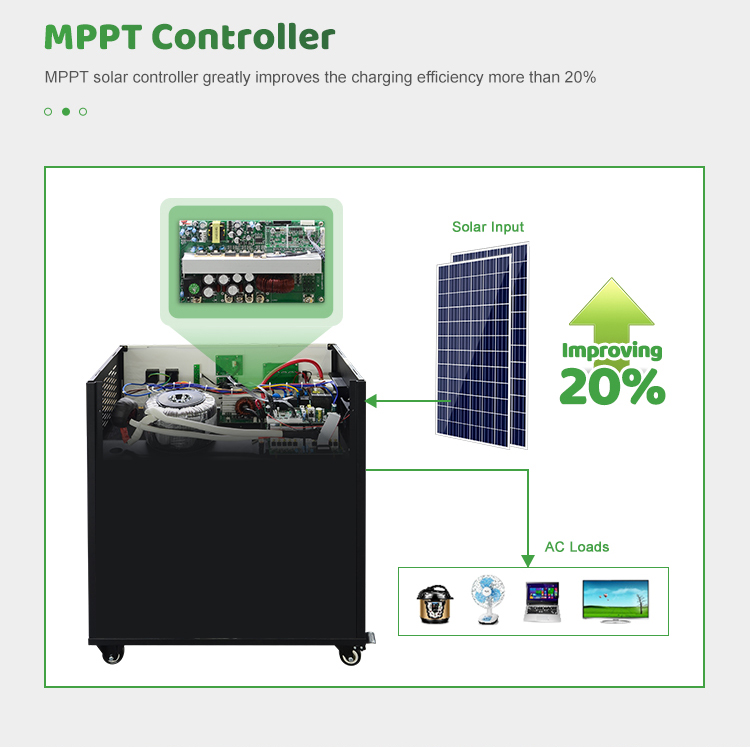

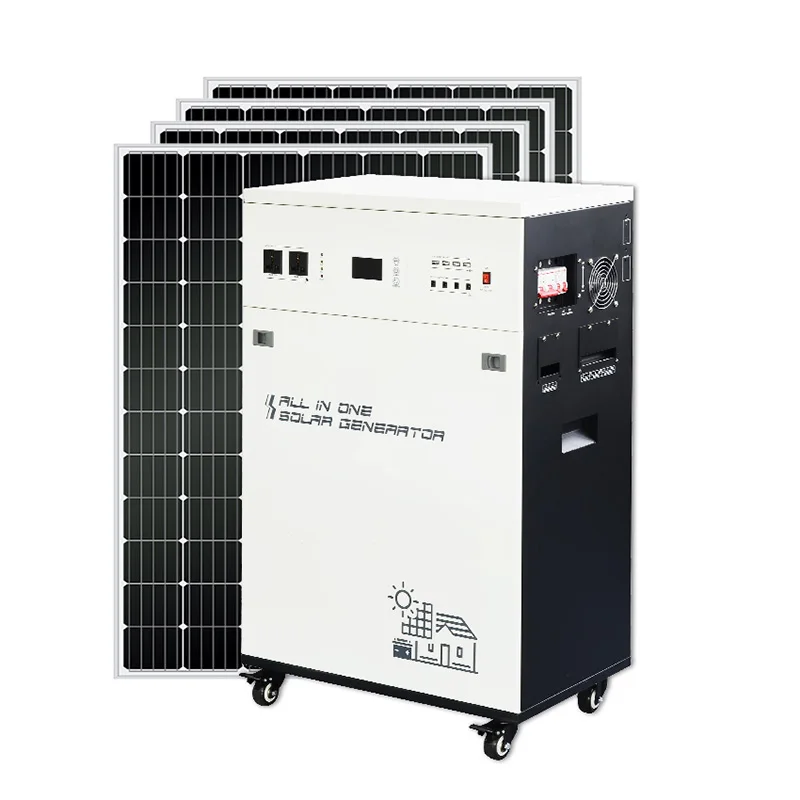

| solar charger (Optional) | Charging mode | PWM/MPPT | ||
| Max PV input voltage(Voc) (At the lowest temperature) |
PWM: 50V; MPPT: 150V | |||
| PV input voltage range | PWM:30V~44V; MPPT: 30V~120V | |||
| Charge & discharge current | 60A | |||
| Max PV input power | 1680W | |||

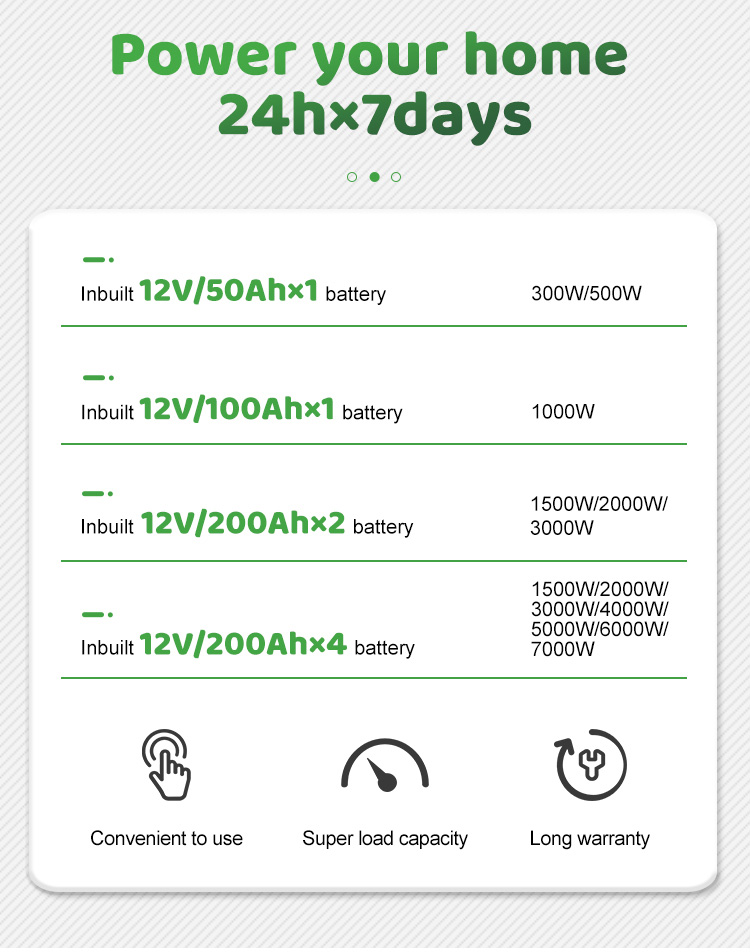

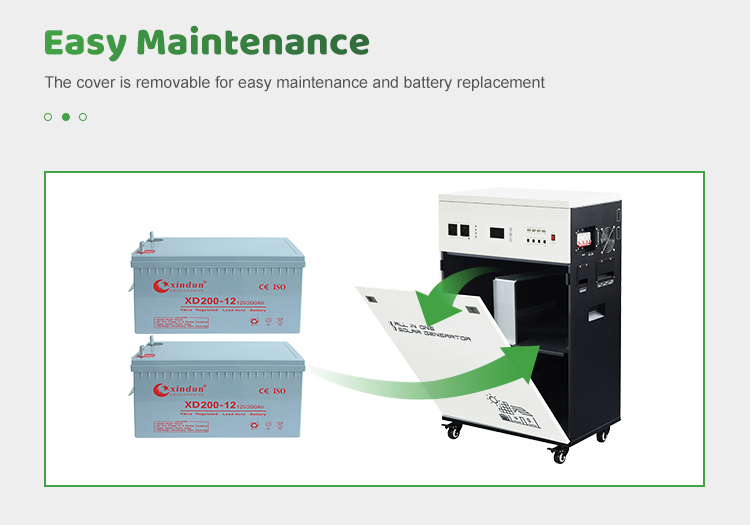

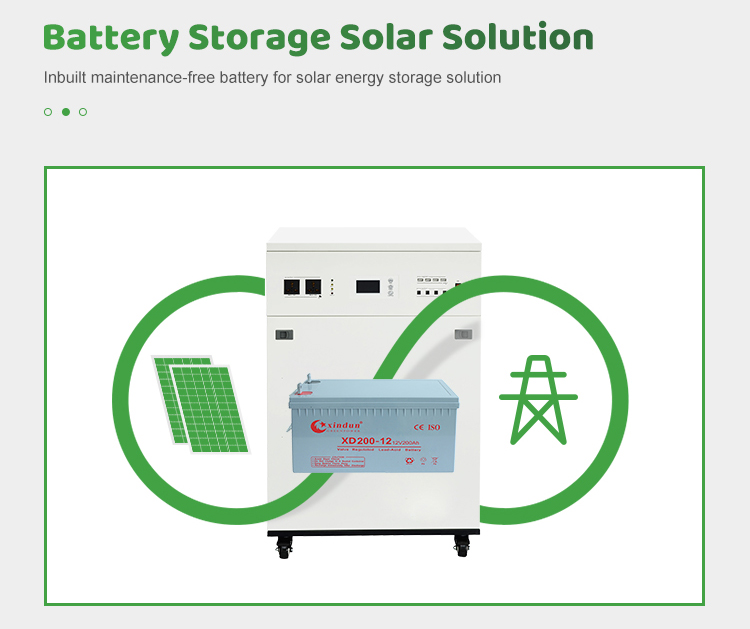

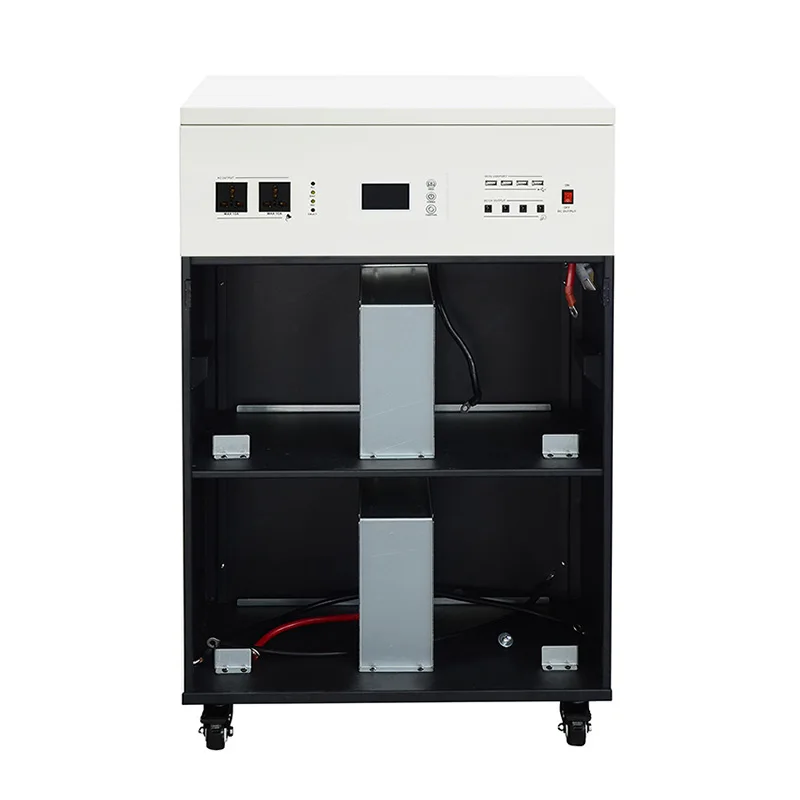

| Inbuilt battery | Capacity | 2*200AH | ||
| Battery size(LxWxH)/pcs | 522*240*218(244) | |||
| Other | Transfer time | ≤4ms | ||
| Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |||
| Display | LCD & LED | |||
| Cooling way | Cooling fan in intelligent control | |||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | |||
| Working mode (selectable) |
d1 | AC priority mode | ||
| d2 | ECO mode | |||
| d3 | Solar priority mode | |||
| Work environment |
Operating temperature | -10℃~40℃ | ||
| Storage temperature | -15℃~60℃ | |||
| Elevation | 2000m(More than derating) | |||
| Humidity | 0%~95% ,No condensation | |||
| Physical | Dimention L x W x H(mm) | 560*350*928 | ||
| Net weight(kg)(without battery) | 37 | 39 | 43 | |
| Packing | Dimention L x W x H(mm) | 638*427*1063 | ||
| Gross weight(kg)(without battery) | 47 | 49 | 53 | |
| Quantity/CTN | 1pcs per wooden case | |||
If you have any question, Please do not hesitate to contact us >>>>>>>

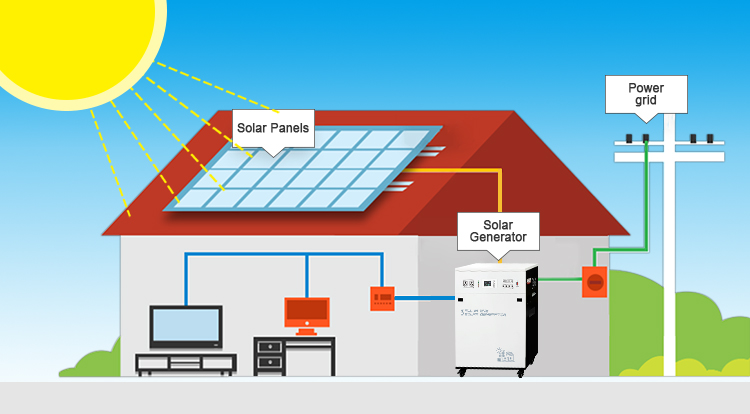

We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the power grid and battery are connected to the generator inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via generator inverter. When the grid is cut off, the battery will automatically continue to supply power via generator inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the generator inverter’s rated power, there will be no output from the generator inverter. Only the chip of generator inverter is working. The power consumption of the generator inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the generator inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the power grid and battery are connected to the generator inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
Package
Wooden box advised for sample or wholesale goods to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
