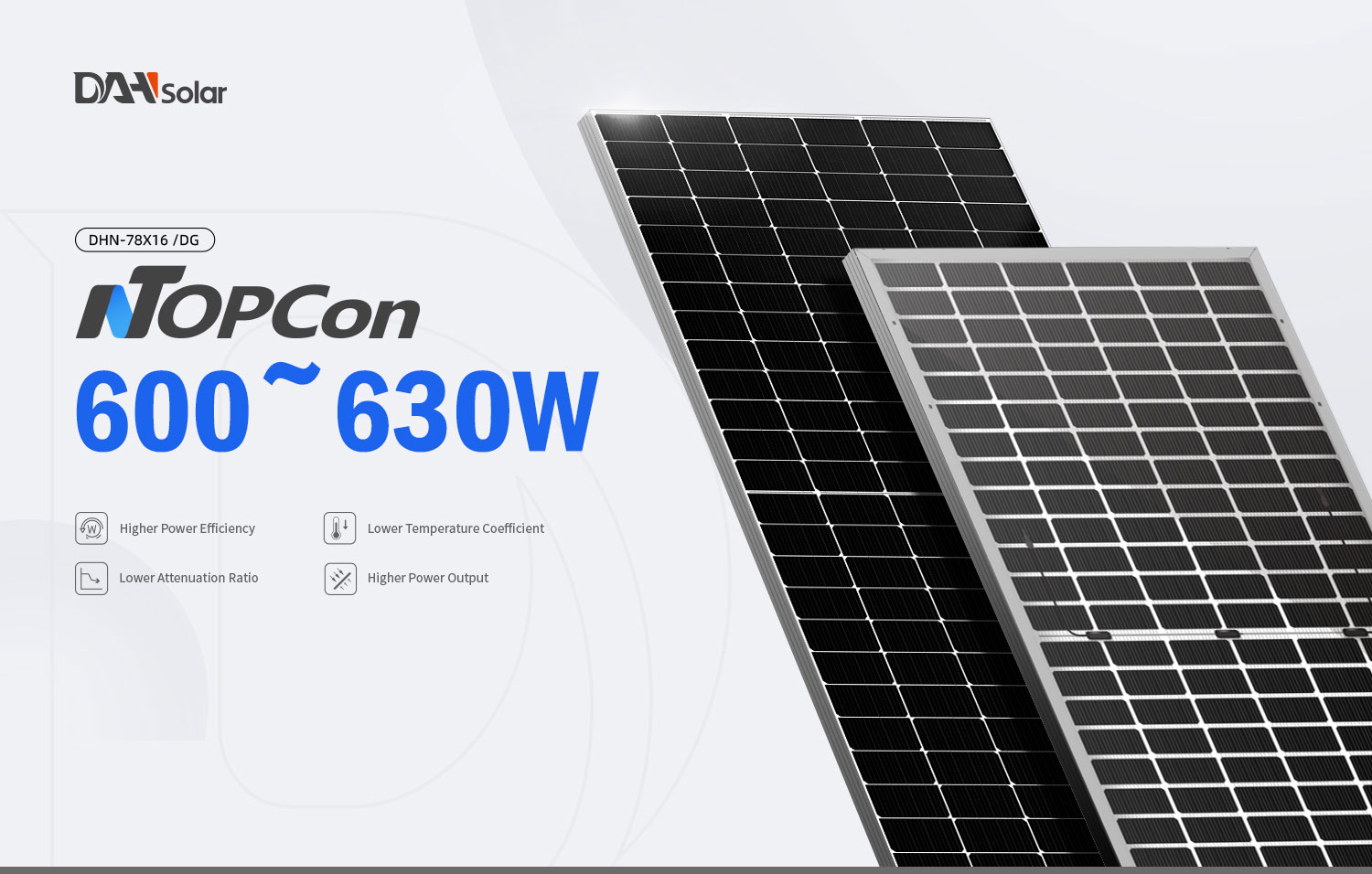

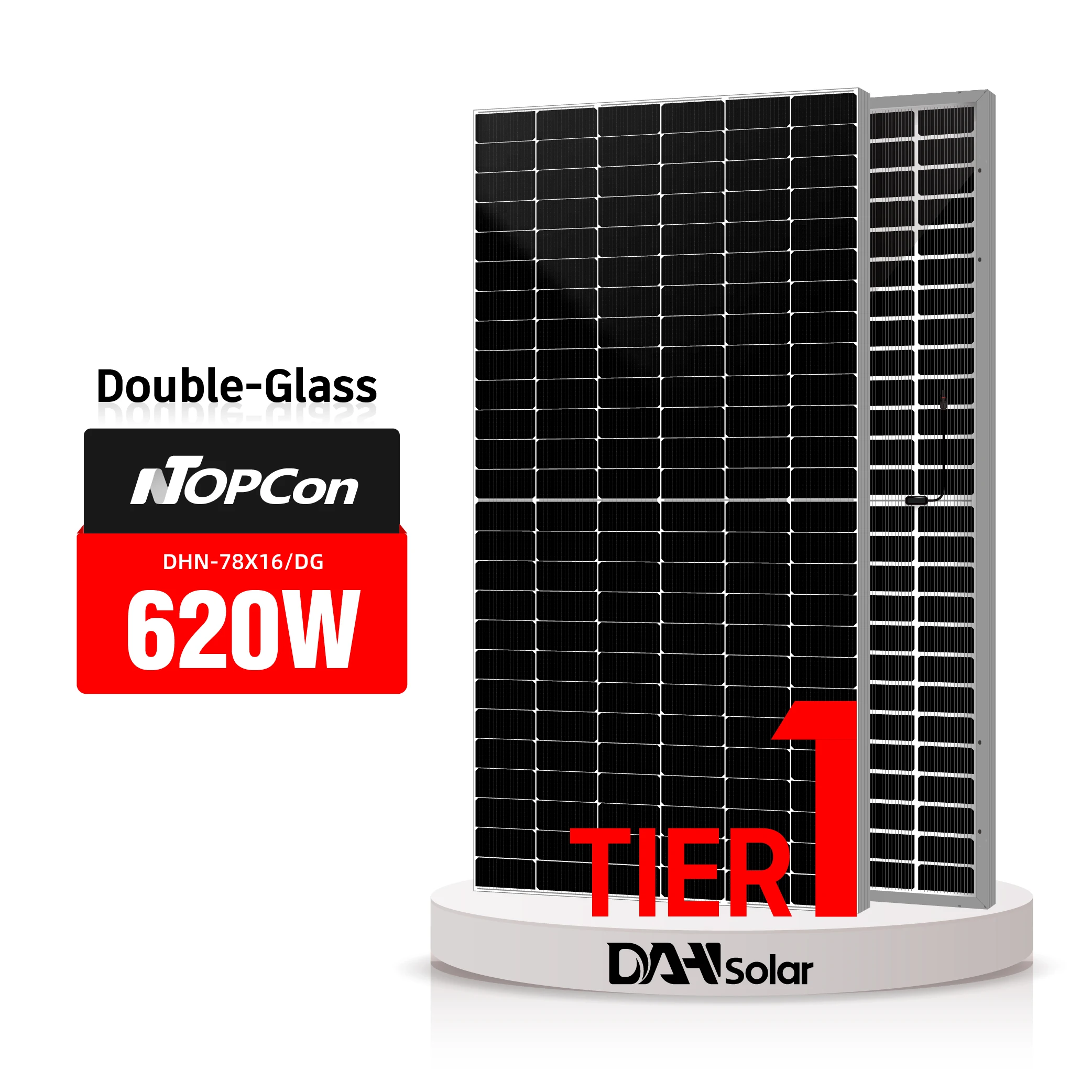

High Efficiency 630W 625W 620W TOPCon Module Double Glass Manufacturer Residential Solar Panels

DAH Solar Co., Ltd.

An Hui China

Summary

No.1600952485018

More

$63.80

Specifications

Max. Power:

620W

630W

625W

Material:

Monocrystalline Silicon

Power Range:

600W-650W

Number of Cells:

156 (6*26)

INQUIRY

Description Download

Key attributes

Industry-specific attributes

Cell size

182mmx182mm

Type

PERC, Half Cell, Double-glass, All Black, N-TYPE, TOPCON

Panel Efficiency

22.54%

Other attributes

Place of Origin

Anhui, China

Panel Dimensions

2465*1134*30mm

Brand Name

DAH

Model Number

DHN-78X16/DG

Product name

TOPCon Module Double Glass Manufacturer Residential Solar Panels

Junction Box

IP68 Rated

Connector

MC4 Compatible Connector

Material

Monocrystalline Silicon Solar Cells

Front Glass

3.2mm HighTransmission

Maximum Series Fuse Rating

30A

Application Level

Class A

Cells Type

N-type 182*91mm

Packing

36pcs/Pallet, 576pcs/40HQ

Cable

4.0mm2 , 300/200mm in Length

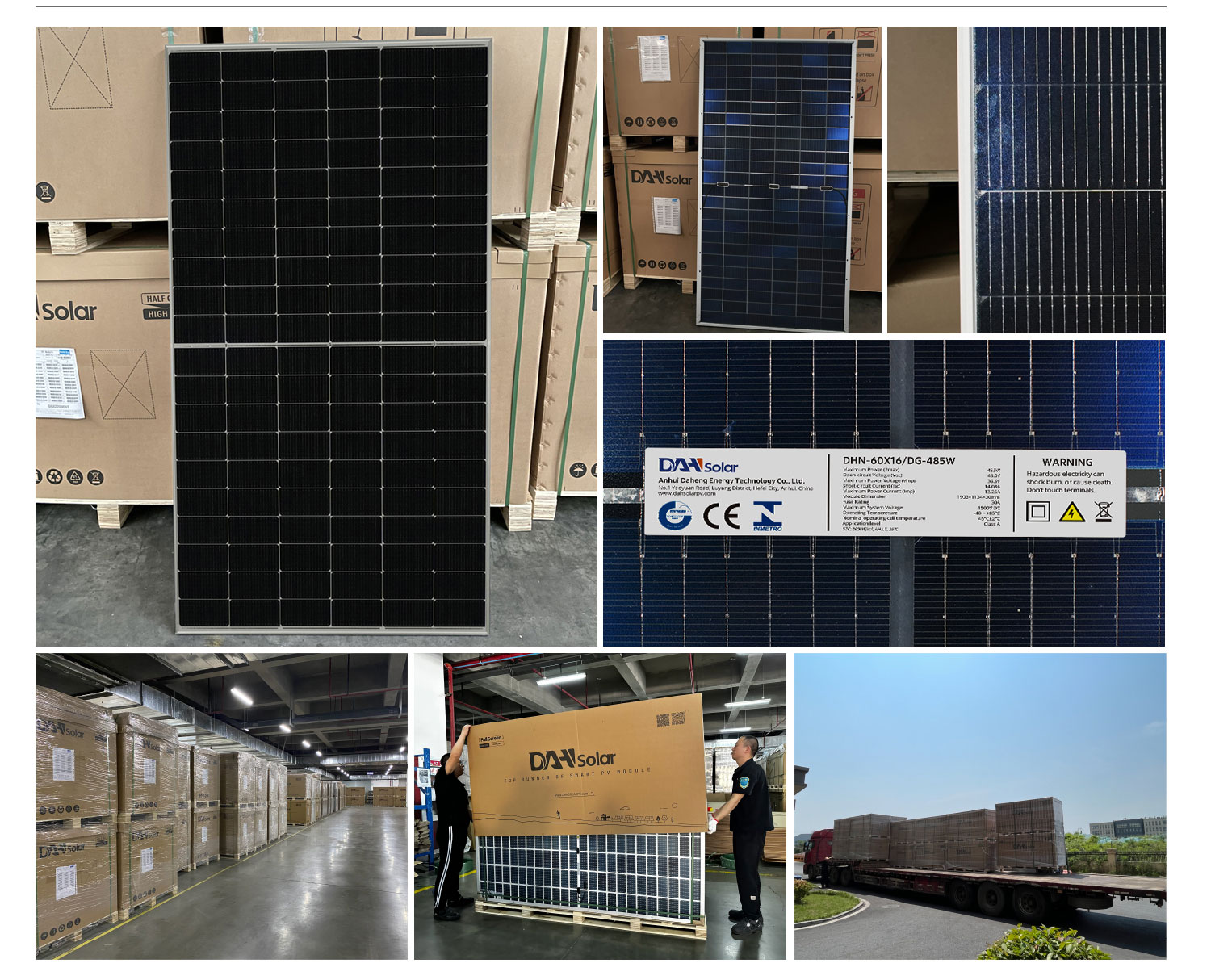

Packaging and delivery

Selling units

Single item

Single package size

2294X1134X30 cm

Single gross weight

60.000 kg

Module Type	STC	Noct	STC	Noct	STC	Noct
Maximum Power(Pmax)	600W	451W	605W	455W	610W	459W
Open-circuit Voltage (Voc)	54.8V	52.1V	55V	52.3V	55.2V	52.4V
Maximum Power Voltage(Vmp)	46V	43.7V	46.2V	43.9V	46.4V	44.1V
Short-circuit Current (Isc)	13.84A	11.17A	13.9A	11.22A	13.96A	11.27A
Maximum Power Current (Imp)	13.04A	10.32A	13.1A	10.37A	13.15A	10.41A
Solar Panel Efficiency	21.46%			21.64%			21.82%

Module Type

STC

Noct

STC

Noct

STC

Noct

STC

Noct

Maximum Power(Pmax)

615W

462W

620W

466W

625W

470W

630W

474W

Open-circuit Voltage (Voc)

55.4V

52.6V

55.6V

52.8V

55.8V

53V

56V

53.2V

Maximum Power Voltage(Vmp)

46.6V

44.3V

46.8V

44.5V

47V

44.7V

47.2V

44.8V

Short-circuit Current (Isc)

14.02A

11.32A

14.08A

11.37A

14.14A

11.42A

14.2A

11.46A

Maximum Power Current (Imp)

13.2A

10.45A

13.25A

10.49A

13.3A

10.53A

13.35A

10.57A

Solar Panel Efficiency

22%

22.18%

22.36%

22.54%

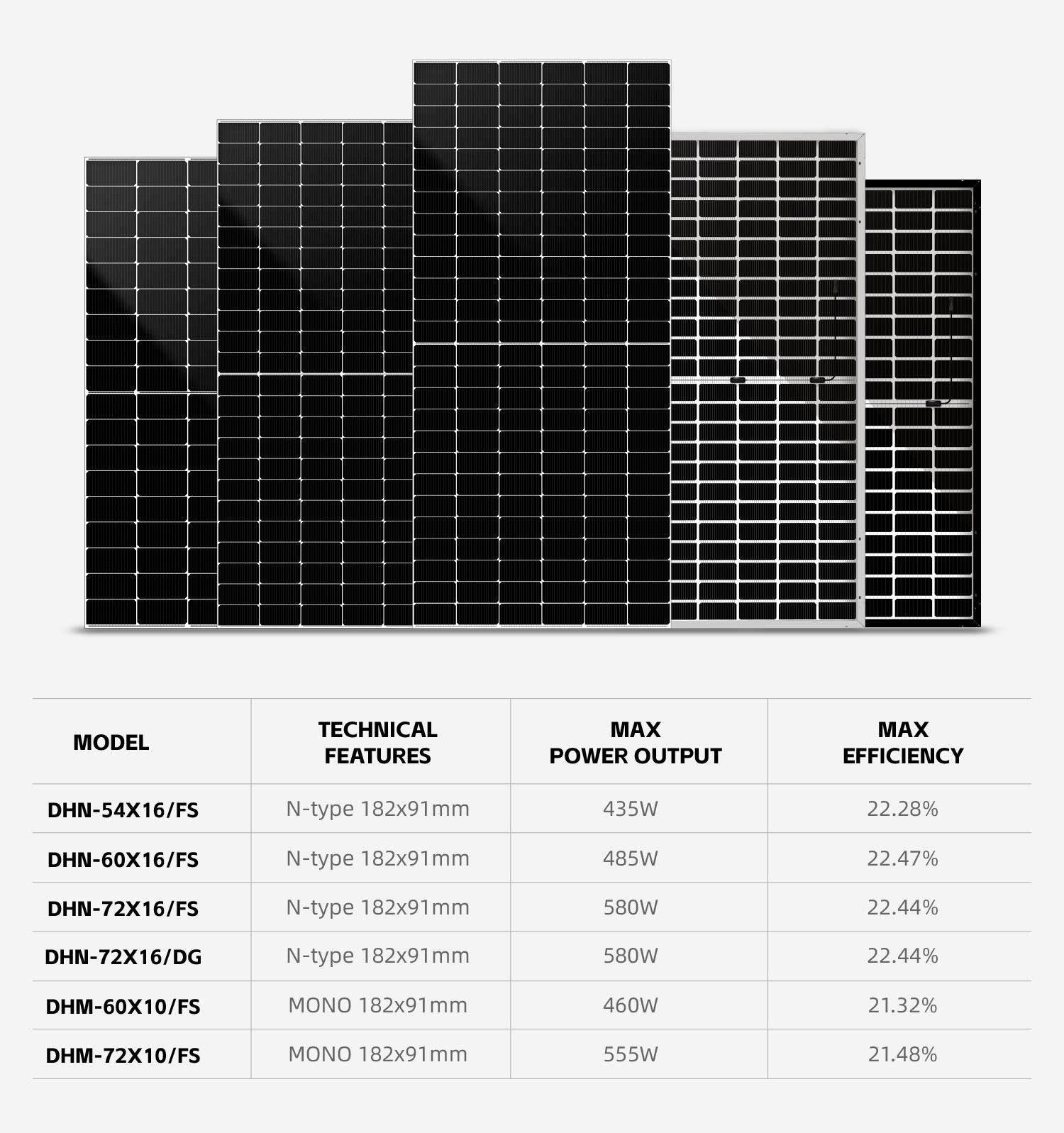

DAH Series

Products Category

DAH Warehouse

About Us

Quality Control

Technical Certification

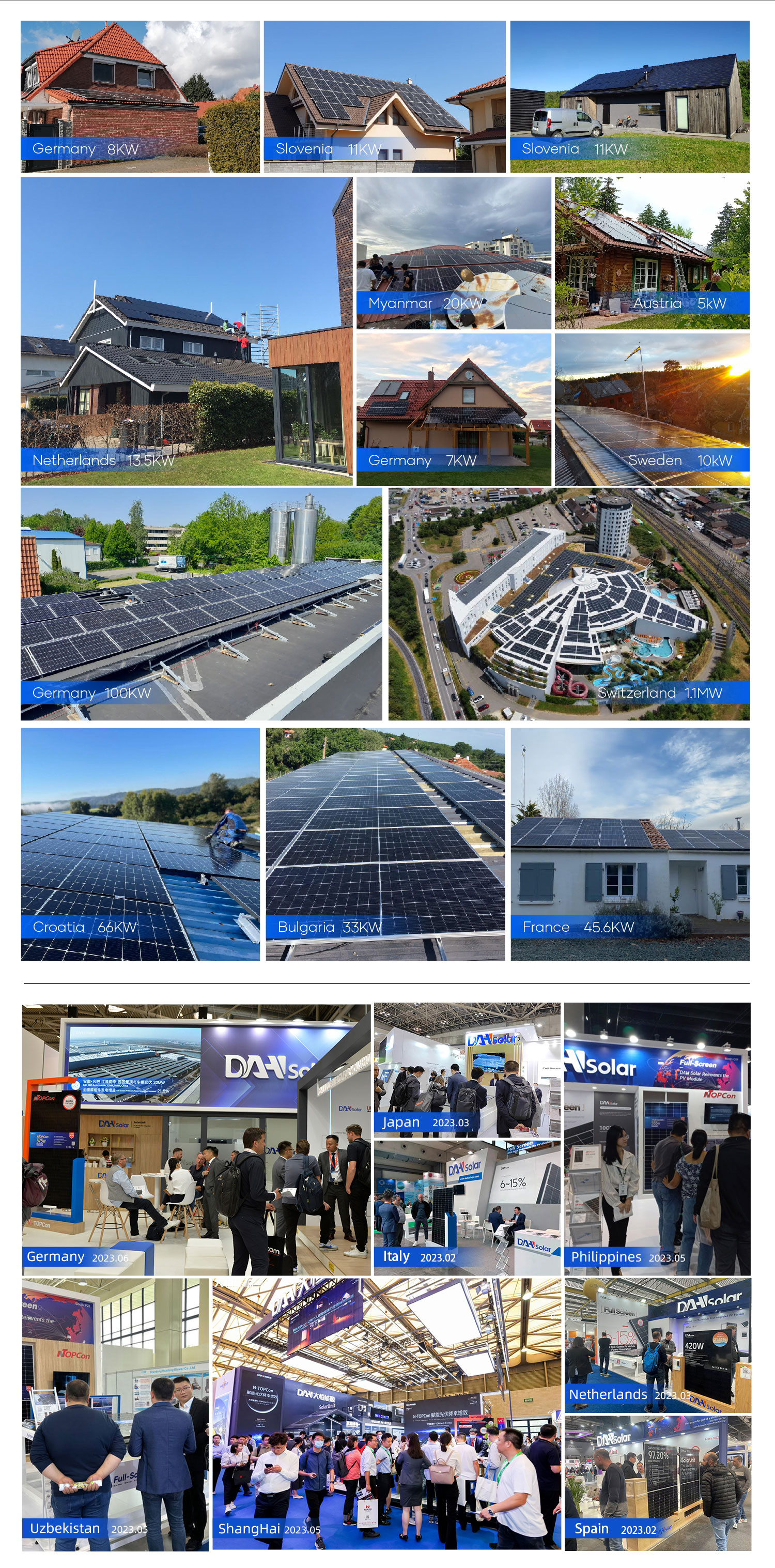

Projects & Exhibition
