Summary

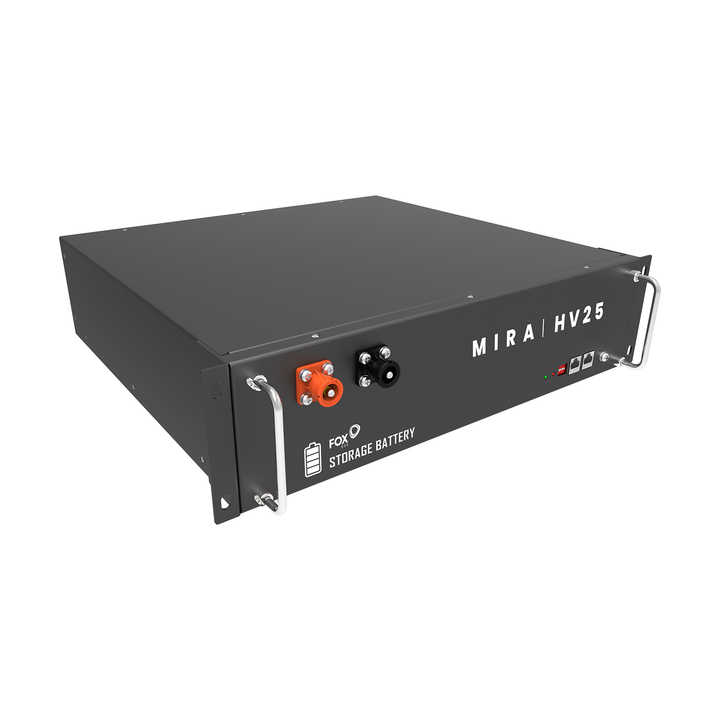

The FOXESS High Voltage Battery Energy Storage System is a 51.2V, 2.45kWh lithium LiFePO4 battery designed for hybrid grid, wall-mounted, and rack-mounted applications. Featuring a long cycle life of ≥6000 cycles, high round-trip efficiency (>95%), and scalable up to 8 modules in series, this energy storage solution offers reliable and efficient performance for residential and commercial use. With advanced safety certifications including IEC 62619 and IEC 62477-1, the system ensures stable operation in diverse environments. Compact dimensions (480*122*420 mm) and lightweight design (26 kg) make it ideal for space-constrained installations, while communication ports (CAN, RS485) enable seamless integration with smart energy systems.More
Specifications
Color:
Black
Capacity:
2.45KWH
  • High Voltage Battery Energy Storage System 51.2V 2.45kWh Lithium LiFePO4 Battery for Hybrid Grid Wall-Mounted Applications FOXESS
  • High Voltage Battery Energy Storage System 51.2V 2.45kWh Lithium LiFePO4 Battery for Hybrid Grid Wall-Mounted Applications FOXESS
  • High Voltage Battery Energy Storage System 51.2V 2.45kWh Lithium LiFePO4 Battery for Hybrid Grid Wall-Mounted Applications FOXESS
  • High Voltage Battery Energy Storage System 51.2V 2.45kWh Lithium LiFePO4 Battery for Hybrid Grid Wall-Mounted Applications FOXESS

Key attributes

System Voltage
51.2 V
Output Power Range
Other
Grid connection
Hybrid grid
Battery Type
LiFePO4
System Type
Wall-mounted, Stackable, Rack-mounted
Model Number
MAIR HV25
Brand Name
FOXESS
Place of Origin
Zhejiang, China
Dimension (L*W*H)
480*122*420
Weight
26
Type
Split
Communication Port
CAN, rs485
Protection Class
IP21
Recommend Discharge Current [A]
24
Max.Charge/Discharge Current [A]
48
Battery Pack Round-Trip Efficiency [%]
>95
Cycle Life
≥6000
Scalability
Max. 8 Modules in Series
Display
Mira-HV25: 2*LED, Mira-BMS: 6*LED
Altitude [m]
Max. 2,000
Ingress Protection
IP21
Safety
IEC 62619, IEC 62477-1,EN IEC 61000-6-1/2/3/4
Warranty
5 Year
