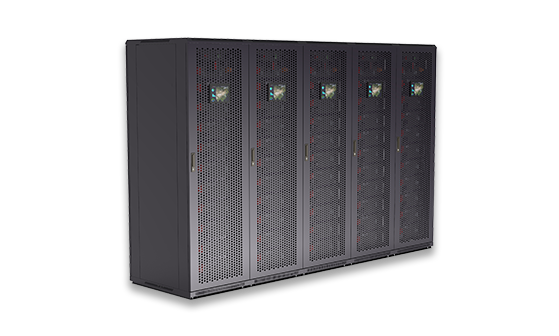

High Voltage Lithium battery system, which integrated top-grade high discharge rate lithium-iron-phosphate (LiFePO4) with build-in smart BMS with monitor and protection function! Designed with an LCD screen shows the main parameters and other monitor parts together, it’s convenient for checking detailed data during use.
This series of high voltage batteries can match with different brand UPS, customers can communicate and manage different UPS by choosing different communication like RS232, RS485, SNMP, CAN, Modbus. The direct voltage range from 96V to 600V for choosing, providing 15 minutes standard emergency standby power! This high voltage battery has high compatibility, which can apply to UPS, IDC data center, financial institutions, rail system, as bank-up power in no electric area, etc.
Customized solutions are available based on different applications and requirements!
? Safety: Adopted by deep cycle, reliable and safety LFP cells. Four levels of protection (single cell, battery pack, battery module, rack system) Reliable system connection assurance. The charge and discharge of the system circuit are managed separately, which can realize no-gap switching.
? Saving costs Saving cost on rent; saving the cost and expenses of using the room by save using space and reduce weight. Saving power by reducing the power consumption near 0 at the stand by mode.
? Reliable Highly consist cells matching scheme; Reliable module assemble technology; Adopt pre-charge to ensure a stable start-up and power supply.
? High Efficiency Top-grade, low resistance cells, the energy conversion rate higher than 98%; High-efficiency discharge performance, more suitable for more than 3C multiplier discharge.
? Flexible Modular design with free combination;
? Long life span 15 years of design life
? Customized Can provide a customized systems based on customer various demands.
It can be used for many different applications, the direct voltage range from 96V to 600V for choosing, providing 15 minutes standard emergency standby power! It is highly recommended for high discharge short-time emergency power supply!
? UPS ? IDC data center ? Financial institutions ? Rail system ? Bank-up power in no electric area
Series | Specific | Dimension (mm) | Ref. Weight (kg) | Standard. Conts. Output Power (kW) | Standard bank-up time (min) | ||
Width | Depth | Height | |||||
SHUIFP series | SHUIFP19250D | 600 | 800 | 1400 | 236 | 38.4 | 15 |
SHUIFP38450D | 600 | 800 | 2000 | 384 | 76.8 | 15 | |
SHUIFP48050D | 600 | 800 | 2000 | 440 | 96 | 15 | |
SHUIFP51250D | 600 | 800 | 2000 | 455 | 102.4 | 15 | |
SHUIFP192100D | 600 | 1000 | 2000 | 425 | 76.8 | 15 | |
SHUIFP384100D | 600 | 1000 | 2000 | 653 | 153.6 | 15 | |
SHUIFP480100D | 600 | 1000 | 2000 | 767 | 192 | 15 | |
SHUIFP512100D | 600 | 1000 | 2000 | 797 | 204.8 | 15 | |
SHUIFP192100A | 600 | 800 | 1400 | 286 | 19.2 | 60 | |
SHUIFP384100A | 600 | 800 | 2000 | 488 | 38.4 | 60 | |
SHUIFP480100A | 600 | 800 | 2000 | 570 | 48 | 60 | |
SHUIFP512100A | 600 | 800 | 2000 | 595 | 51.2 | 60 | |
