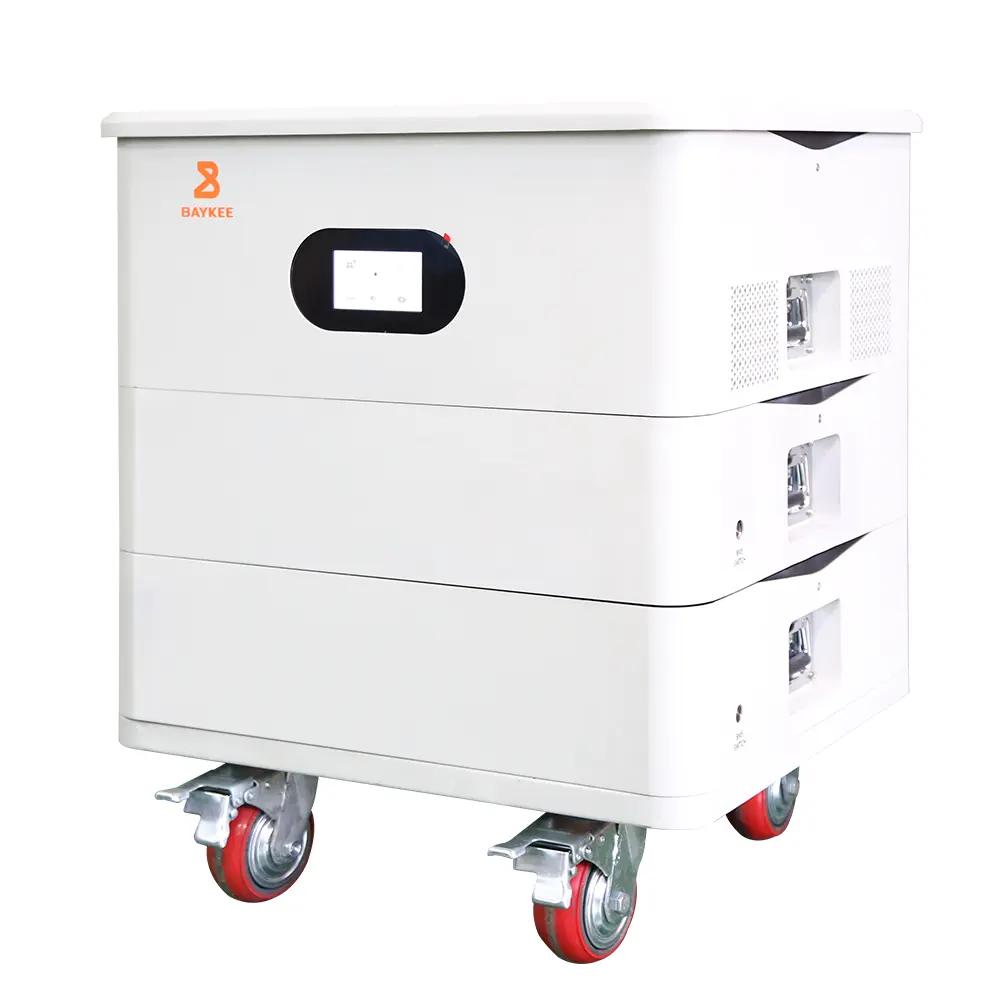

home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE

home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE

  • home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE
  • home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE
  • home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE
  • home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE
Summary
 BAYKEE-ESS-5, a state-of-the-art home energy storage system from BAYKEfor modern households manage and utilize their energy resources. More
Specifications
Model+Capacity:
BK-ESS-5 5.12KWh/ 12KW
BK-ESS-10 10.24KWh/ 12KW
BK-ESS-15 15.36KWh/ 12KW
BK-ESS-20 20.48KWh / 12KW
Rated PV input voltage:
360VDC
Cooling method:
Natural cooling
  • home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE
  • home energy storage system 5Kwhall in one stacked48v 100ah BK-ESS-5 BAYKEE

Core Features & Advantages:

  • Stacked Home Energy Storage System: The BK-ESS-5 boasts a revolutionary stacked design, maximizing energy density while minimizing footprint. This not only enhances your home's aesthetic appeal but also ensures efficient use of available space, an ideal choice for modern households.
  • High-Performance Intelligent BMS Protection: At the heart of this system lies an advanced Battery Management System (BMS) that intelligently monitors and protects your LiFePO4 battery. This ensures optimal battery health, prevents overcharge/over-discharge, and safeguards against temperature extremes, prolonging the battery's lifespan and maintaining peak performance.
  • Flexible Configuration: Recognizing the unique energy needs of every household, the BK-ESS-5 offers unparalleled flexibility in configuration modular design allows for easy integration with various renewable energy sources (such as solar panels) and can be tailored to meet your specific energy storage requirements, ensuring maximum efficiency and cost-effectiveness.
  • Modular Design, Easy Quick Stacking: Say goodbye to complex installations and time-consuming setups. The BK-ESS-5's modular architecture allows for quick and effortless stacking, enabling homeowners to expand their energy storage capacity as their needs grow without the need for major renovations or additional hardware. This streamlined approach ensures a seamless user experience, installation to long-term maintenance.
  • High Voltage, Larger Capacity, Greater Efficiency: With a 48V rating and a 5Kwh capacity, the BK-ESS-5 offers a significant boost in energy storage capacity compared to traditional systems. This higher voltage and larger capacity translate into more efficient energy transfer, reduced energy loss during transmission, and an overall increase in your home's energy self-sufficiency.

Technical Specifications:
Model BK-ESS-5 BK-ESS-10 BK-ESS-15 BK-ESS-20
Capacity 5.12KWh/ 12KW 10.24KWh/ 12KW 15.36KWh/ 12KW 20.48KWh / 12KW
Standard discharge current 80A 80A 80A 80A
Max. discharge current 160A 160A 160A 160A
Working voltage range 40V-58V 40V-58V 40V-58V 40V-58V
Standard Voltage 51.2VDC 51.2VDC 51.2VDC 51.2VDC
Max. charging current 160A 160A 160A 160A
Max. charging voltage 57.6V 57.6V 57.6V 57.6V
Rated PV input voltage 360VDC
MPPT tracking voltage range 80V-500V
Max input voltage (VOC) at lowest temperature 550V
Max input power 12000W
Number of MPPT tracking paths 3/2+1
DC input voltage range 40V-58VDC
Inverter output efficiency 94%(MAX)
Inverter output voltage 220VAC±2%/230VAC±2%/240VAC±2%(Inverter mode)
Inverter output frequency 50/60 Hz
Inverter output waveform Pure sine wave
Grid output efficiency ≥97%
DC Max. Efficiency ≥96%
Max mains charging current 60A
Max PV charging current 100A
Max charging current(Grid+PV) 160A
Optional mode Gird priority/PV priority/Battery priority
Communication Optional: RS485/ RS232/CAN Wi-Fi/4G/ Bluetooth
BATTERY
Model 48100 48200
Specification 48V100Ah 51. 2V100Ah 48V200Ah 51. 2V200Ah
Combination 15S1P 16S1P 15S1P 16S1P
Capacity 4.8KWh 5.12KWh 9.6KWh 10.24KWh
Standard discharge current 50A 60A 100A 100A
Max. discharge current 100A 100A 150A 150A
Working voltage range 43.5~58VDC 43.5~58VDC 43.5~58VDC 43.5~58VDC
Standard Voltage 48VDC 51.2VDC 48VDC 51.2VDC
Max. charging current 50A 50A 100A 100A
Max. charging voltage 54V 57.6V 54V 57.6V
Cycle 3000~6000 cycles @DOD 80%/25°C/ 0.5C
Working humidity <60%
Operating temperature -20~50℃
Working altitude ≤2500m
Cooling method Natural cooling
Installation Stack installation
Protection level IP65
Max of parallel 8PCS
Communication Default: RS485/ RS232/ CAN Optional: Wi-Fi/ 4G/ Bluetooth
Certified CB CE UN38.3 MSDS
