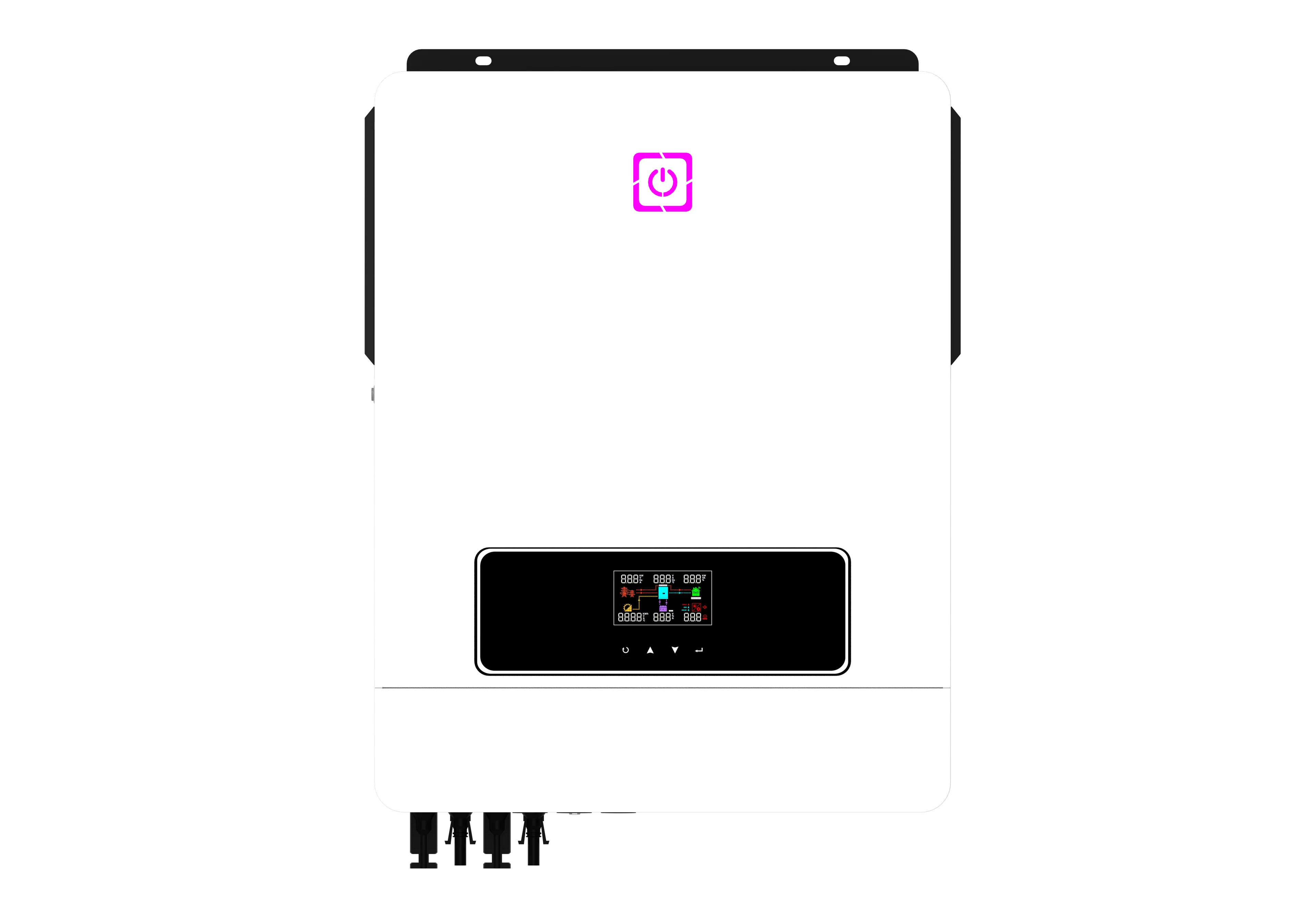

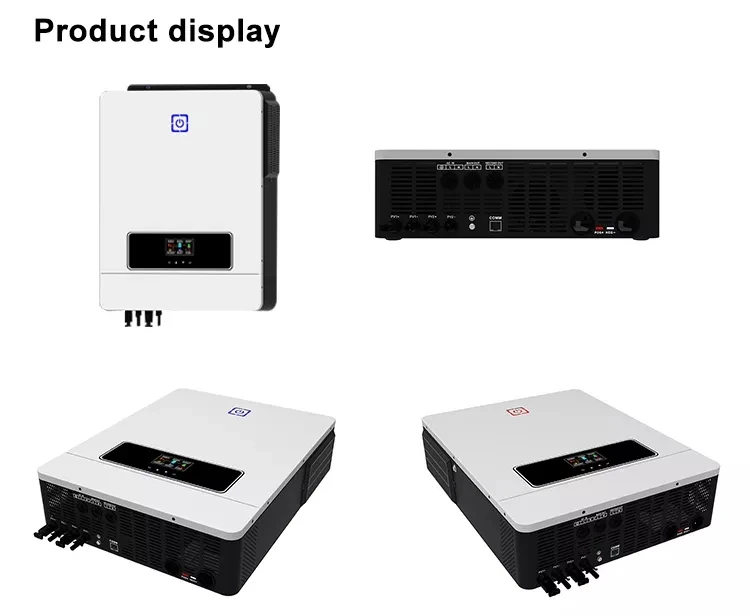

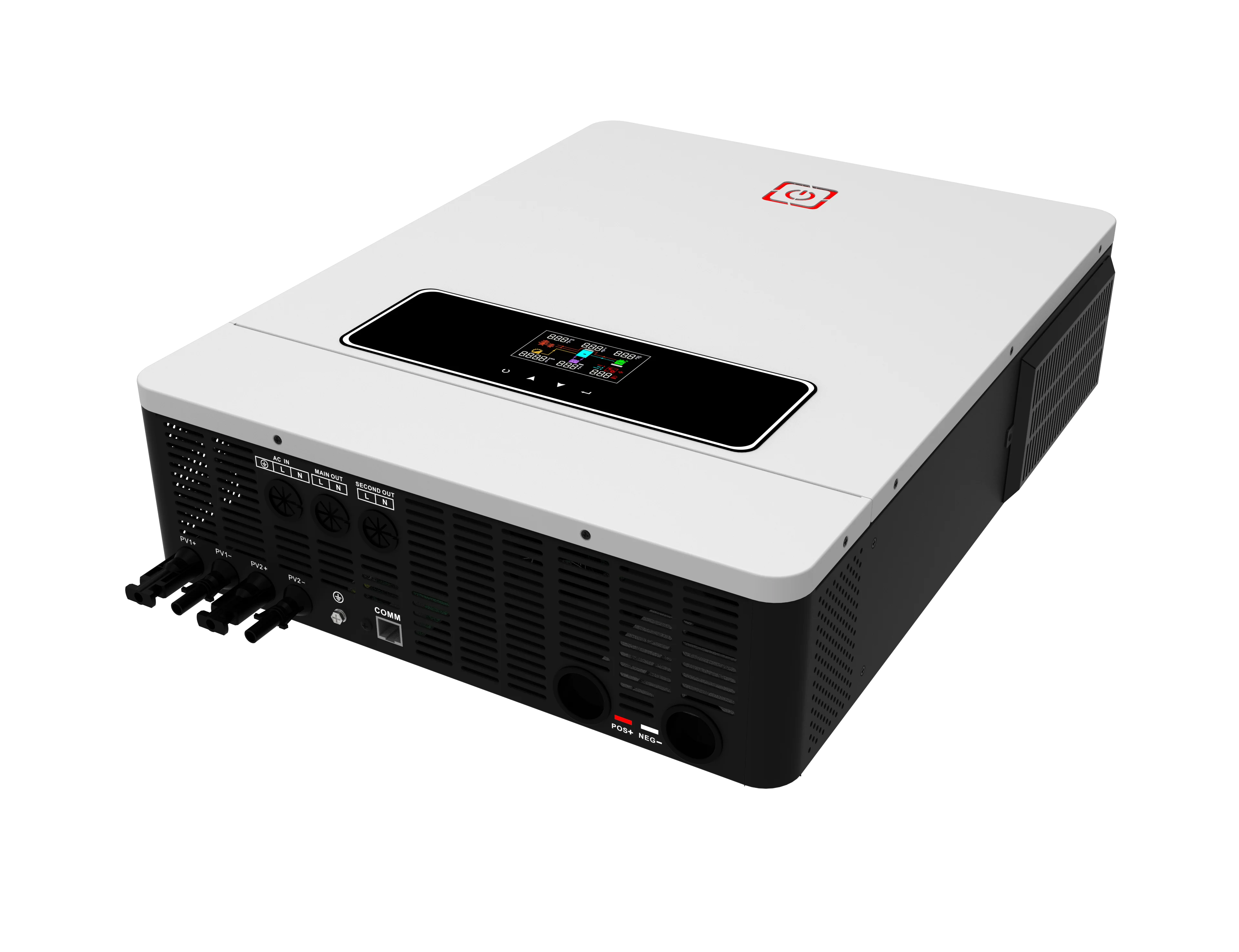

Model | VICTOR MAX-8.2KW | VICTOR MAX-10.2KW | ||
Phase | 1-Phase | |||
Maximum PV Input Power | 8200W | 10200W | ||
Rated Output Power | 8200W/8200VA | 10200W/10200VA | ||
Maximum Solar Charging Current | 160A | |||
GRID-TIE OPERATION | ||||
PV Input(DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Number of MPPT/Max Input Current | 1/27A | |||
GRID OUTPUT(AC) | ||||
Norminal Output Voltage | 220/230/240VAC | |||
Output Valtage Range | 195~253VAC | |||
Norminal Output Current | 35.6A | 44.3A | ||
Power Factor | >0.99 | |||
Feed-in Grid Frequency Range | 49~51±1Hz | |||
EFFICIENCY | ||||
Max Conversion Efficiency(DC/AC) | 98% | |||
TWO LOAD OUTPUT POWER | ||||
Full Load | 8200W | 10200W | ||
Maximum Main Load | 8200W | 10200W | ||
Max Second Load(battery mode) | 2733W | 3400W | ||
Main Load Cut Off Voltage | 44VDC | |||
Main Load Return Voltage | 54VDC | |||
OFF-GRID OPERATION | ||||
AC Input | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||
Maximum AC Input Current | 40A | 50A | ||
Nominal operating frequency | 50/60Hz | |||
Surge power | 16400W | 20400W | ||
PV INPUT(DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Numben of MPPT/Max Input Current | 1/27A | |||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Waveform | Pure sine wave | |||
Efficiency(DC to AC) | 94% | |||
BATTERY&CHARGER | ||||
Nominal DC Voltage | 48VDC | |||
Maximum Solar Charging Current | 160A | |||
Maximum AC Charging Current | 140A | |||
PHYSICAL | ||||
Dimension,D*W*H(mm) | 420*310*110 | |||
Carton Dimension,D*W*H(mm) | 588*463*205 | |||
Net Weight(Kg) | 14.2 | 14.5 | ||
Gross Weight(Kgs) | 15.7 | 16 | ||
INTERFACE | ||||

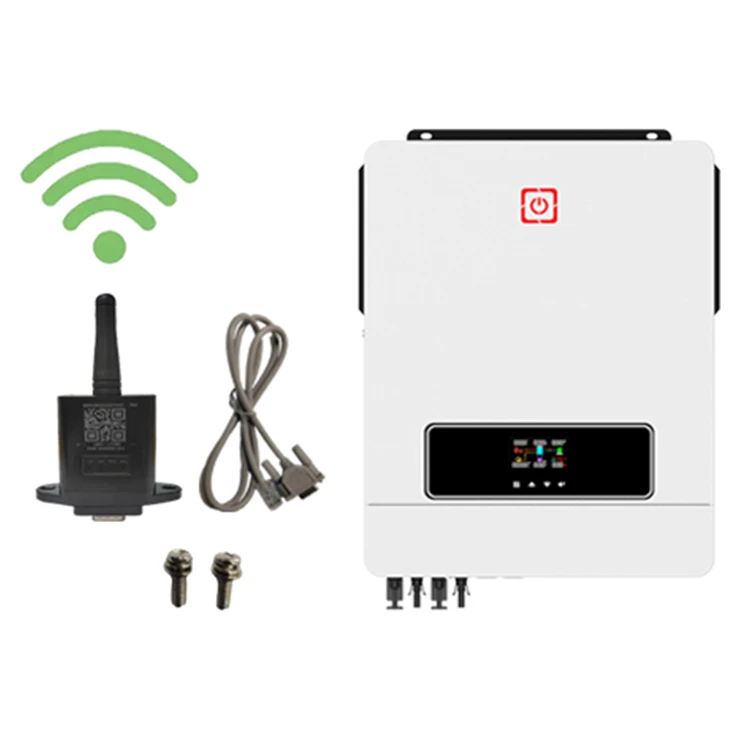

Communication Port | RS232/WiFi/Remove LCD/GPRS | |||
Operating Temperature | -10~50℃ | |||
