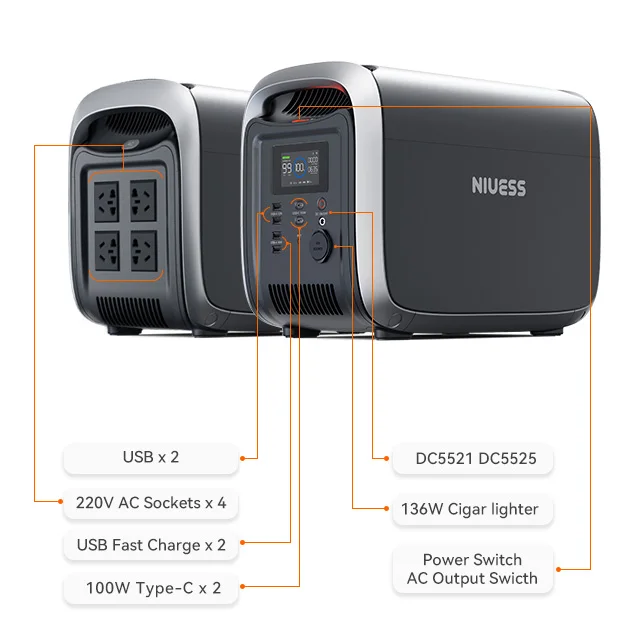

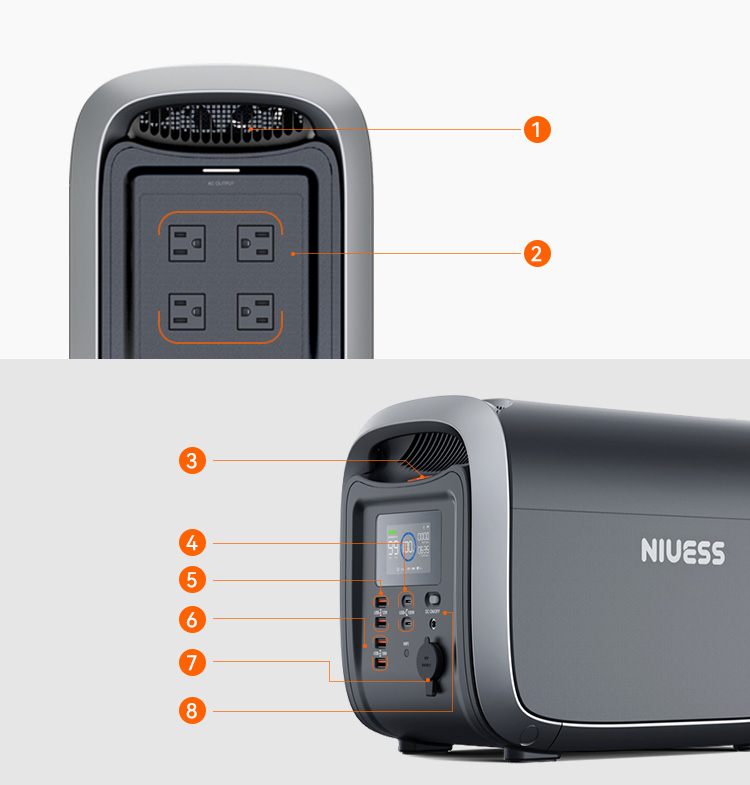

①Cooling System
②220V AV Sockets*4
③Power Switch
④100W Type-C*2
⑤USB*2
⑥USB Fast Charge*2
⑦136W Cigar Ligher
⑧DC5521 DC5525
|
General Specs
|
Net Weight
|
18Kg
|
|

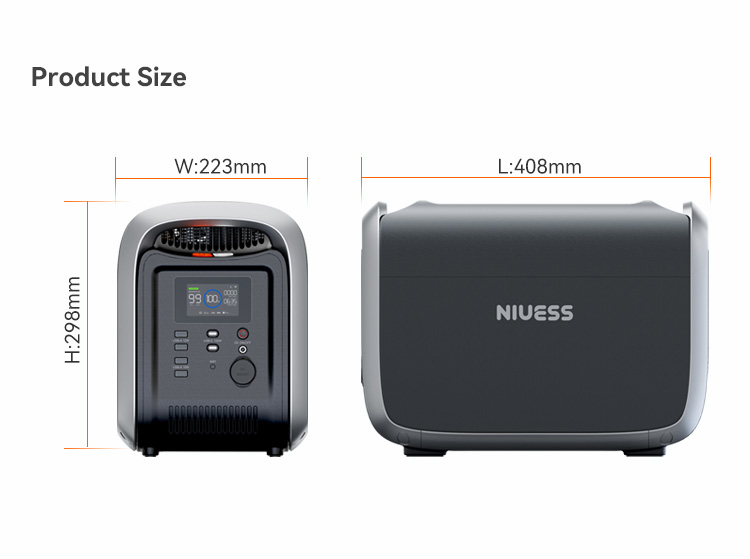

Size
|
403*223*298 (mm)
|
|
|
Capacity
|
1228Wh
|
|
|
Certificates & Test Reports
|
CE/FCC/PSE/RoHS/UKCA/UL 2743
|
|
|

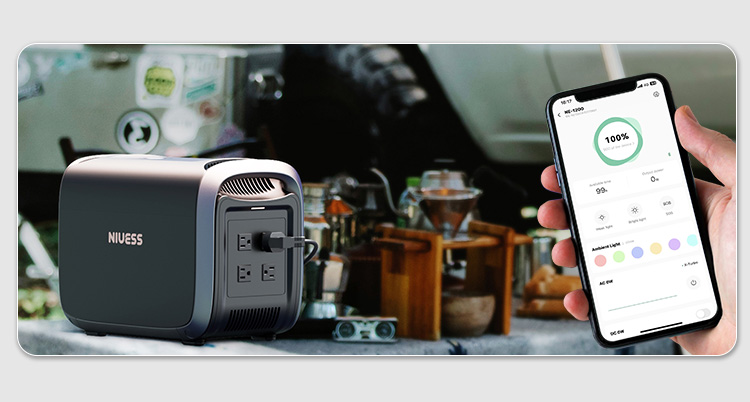

Remote Control
|
Support APP control
|
|
|
Output
|
AC Output (pure sine wave)
|
Rated power 1200W, peak power 2400W, 90V-2640V
AC (50Hz/60Hz)
Intelligent inverter system: support 1200W-2400W equipments |
|
USB-A (x2)
|
DC 5V, 12W (max)
|
|
|
USB-A Fast Charge (x2)
|
QC3.0, DC 5V/3.4A, 9V/2.5A, 12V/2A, 30W (max)
|
|
|
USB-C Fast Charge (x2)
|
PD3.0, DC 5V/9V/12V/15V/3A, 20V/5A, 100W (max)
|
|
|
Cigar lighter Output
|
136W,13.6VDC,10A (max)
|
|
|
DC 5521 Output
|
13.6VDC,10A (max)
|
|
|

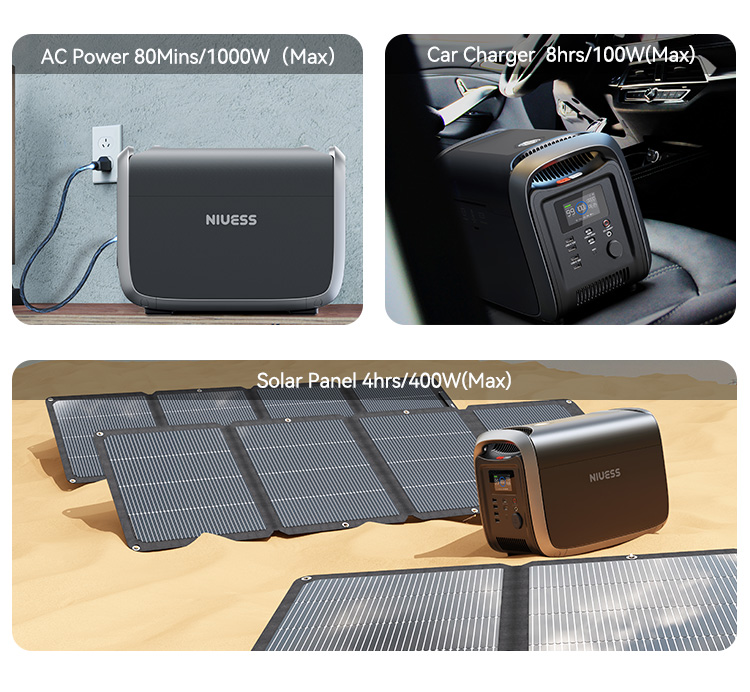

Input
|
AC Charging Voltage
|
90V~264Vac 50Hz/60Hz
|
|
AC Input Power
|
1000W max.
|
|
|

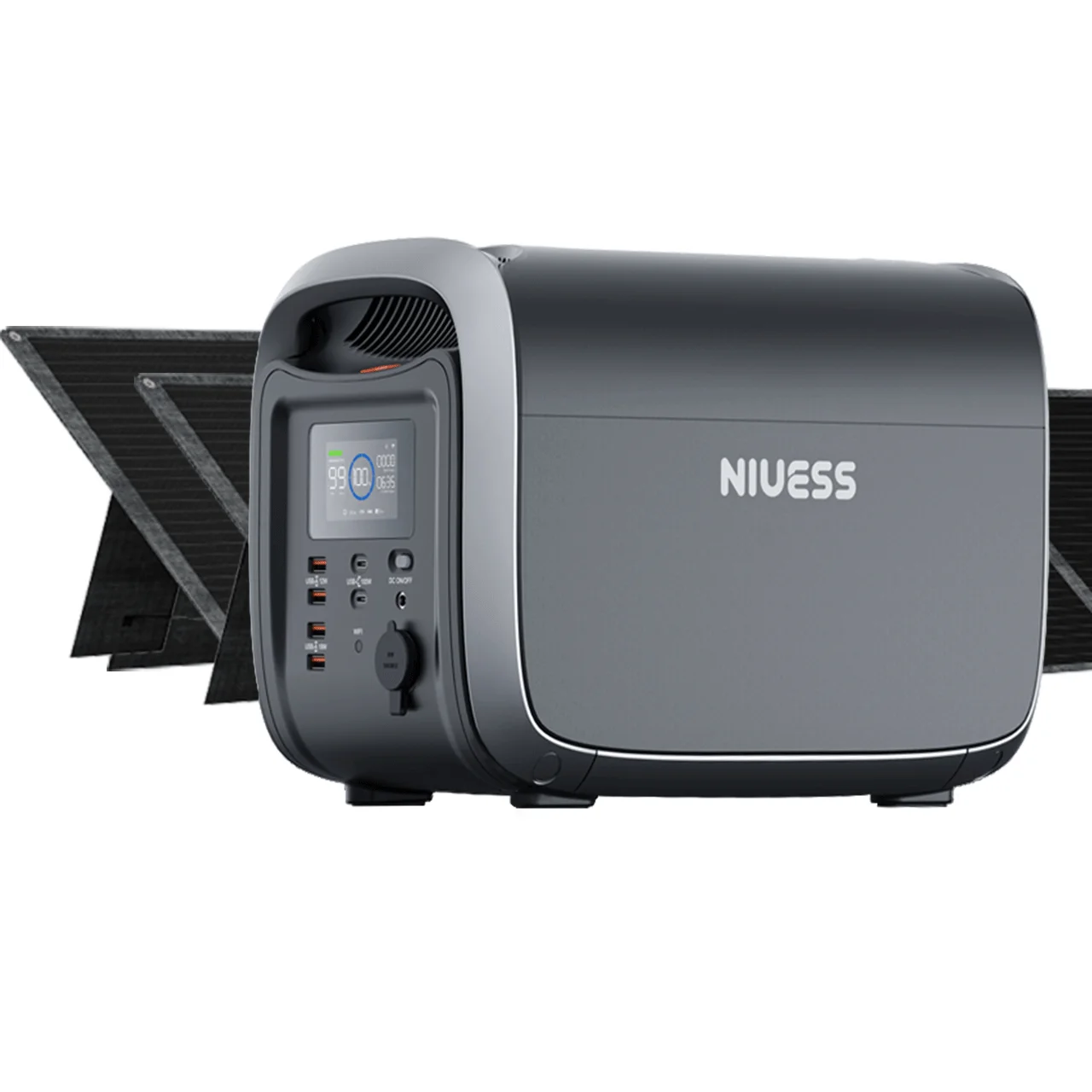

Solar Input
|
400W, 11-65VDC, 10A(max)
|
|
|
Cigar Lighter Input
|
12V/24V DC, 10A(max)
|
|
|

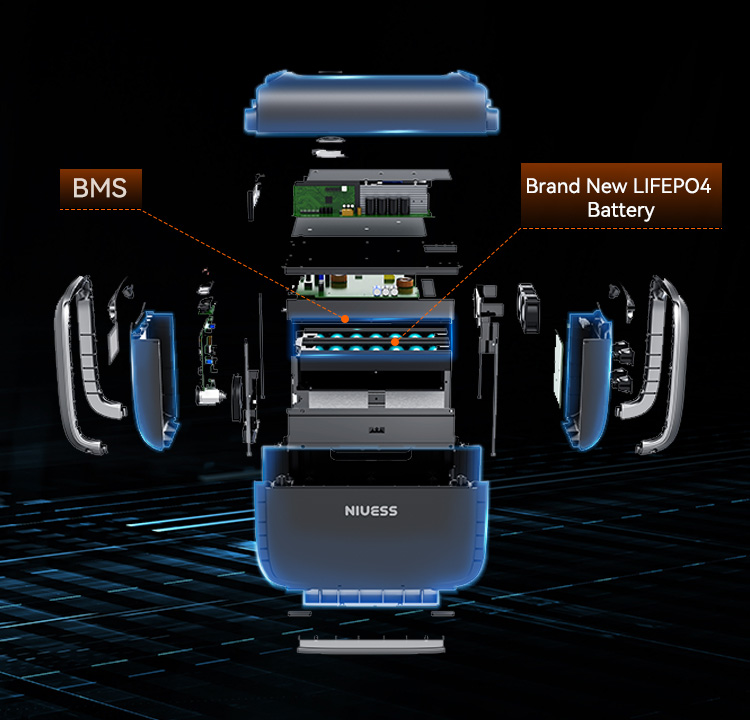

Battery
|
Cell Type
|
Lithium Iron 51.2V 24AH
|
|
Discharge Temperature
|
-20°C-50°C土3°C
|
|
|
Charge Temperature
|
0C-45°C土3°C
|
|
|
Cycle Life
|
2500cycles(80%+)
|
