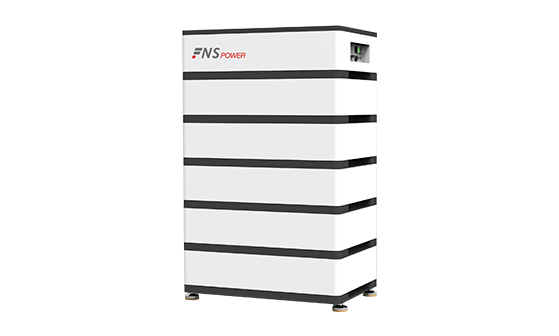

Product features:
(1) High energy capacity up to 30kWh, to meet a family's 24-hour standby power.
(2) 6000+ cycles, 7 to 10 years warranty.
(3) Scalable design, easy Installation, stacked design, no wiring.
(4) Proven safety with advanced BMS and lithium iron phosphate cells, safe integration for home storage.
(5) High capacity, single block 5.12kWh Up to 6 combinations.
(6) Wide compatibility with a range of hybrid inverters. Independent operation possible without serial communication.
--- | HVB 10.24 | HVB 15.36 | HVB 20.48 | HVB 25.6 | HVB 30.72 |
System Selection | |||||
Modules | 2 | 3 | 4 | 5 | 6 |
Type | SHSIFP204050A | SHSIFP307050A | SHSIFP409050A | SHSIFP512050A | SHSIFP614050A |
Battery Tower Parameters | |||||
Module Capacity (kWh) | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
Rated Power (KW) | 5.12 | 7.68 | 10.24 | 12.8 | 15.36 |
Max. Power (KW) | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
Recommended C-Rate | ≤0.5C | ||||
Height (mm) | 619.5 | 804.5 | 989.5 | 1174.5 | 1359.5 |
Weight (kg) | 185 | 257.5 | 330 | 402.5 | 475 |
Technical Parameters | |||||
Nominal System Voltage (V) | 204.8 | 307.2 | 409.6 | 512 | 614.4 |
Module Capacity (Ah) | 50 | ||||
Min. Operating Voltage (V) | 179.2 | 268.8 | 358.4 | 448 | 537.6 |
Max. Operating Voltage (V) | 230.4 | 345.6 | 460.8 | 576 | 691.2 |
Charging and Discharging Current (A) | 25A (0.5C) | ||||
Max. Charging Current (A) | 50A (1C) | ||||
Max. Discharging Current (A) | ≤60A (1.2C for max.10min) | ||||
Max. Available Capacity (kWh) | 9 | 13.5 | 18 | 22.5 | 27 |
Single Module Dimension (L*D*H, mm) | 740*480*185 | ||||
BMU Dimension (L*D*H, mm) | 740*480*213.5 | ||||
Base Dimension (L*D*H, mm) | 740*480*221 | ||||
Charging and Discharging Efficiency | ≥98% | ||||
Operating Temperature (℃) | Discharge: -20~50 (Recommended 5~40) / Charge: 0~45 (Recommended 15~30) | ||||
Humidity (%) | 0~95 (non-condensing) | ||||
Protection Class | IP53 | ||||
Communication | CAN/RS485 (system can operate and protect independently without communication.) | ||||
Certifications and Standards | CE, UN38.3, CB (pending) | ||||
