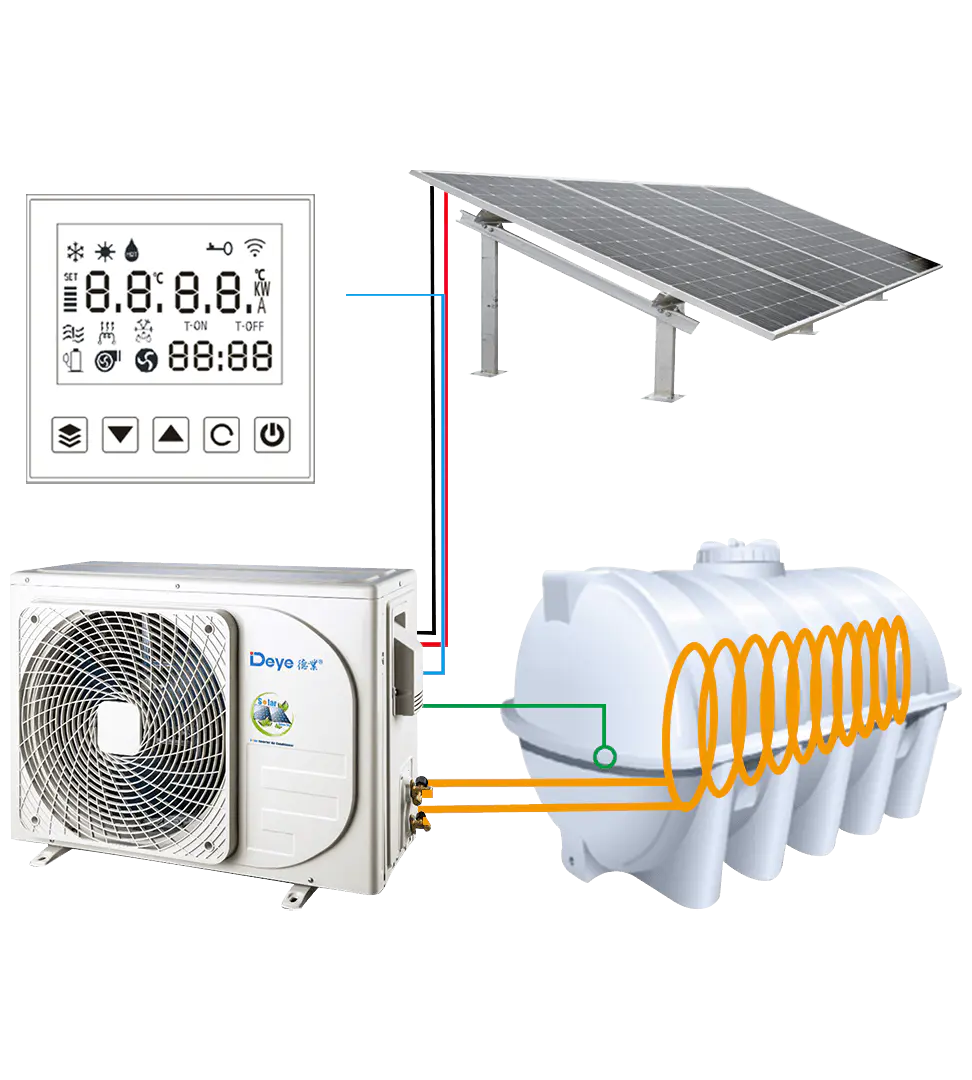

Hybrid ACDC solar air water cooler
1. Pure energy saving in daytime. Only solar panel drive. 2. AC grid power limiter, limit AC power from 0- 600W 3. Wifi control and APP power meter 4. AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance) 5. No inverter, no battery, no charge controller 6. Full DC driven 7. Wide operating temperature(-10℃ to 58 ℃) 8. Long warranty years
Technical Specifications
| T3/T1 Hybrid ACDC Solar Air Conditioner |
| Model | Unit | DGA2-ACDCBLW-12K | DGA1-ACDCBLW-18K | DGA1-ACDCBLW-24K |
| Climate Type | Tropical | | T3/T1 | T3/T1 | T3/T1 |
| Application area | m2 | 12-20 | 20-30 | 30-42 |
| Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ |
| DC Power (PV in Series) | V | 80-380V | 80-380V | 80-380V |
| DC Power Current | A | | | |
| Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series |
| Rated Cooling | Capacity(T1) | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) |
| BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) |
| Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) |
| Capacity(T3) | W | 2910 | 4290 | 5130 |
| BTU | 9900 | 14700 | 17500 |
| Power input(T3) | W | 1050 | 1630 | 1940 |
| Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) |
| BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) |
| Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) |
| T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 |
| T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | 2.65/9.00 |
| COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 |
| Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 |
| Compressor | Model | / | WHP04200 | WHP05600 | 5RD198 |
| Type | / | 2xRotary Inverter | 2xRotary Inverter | 2xRotary Inverter |
| Brand | / | Highly | Highly | Panasonic |
| Indoor fan motor | Model | | BLDC-15W | BLDC-45W | BLDC-45W |
| Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 |
| Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 980/880/740/620 | 1290/1180/1070/900 |
| Indoor noise level (Turbo) | dB(A) | ≤42.5 | ≤46 | ≤50 |
| Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | 1080×330×237 |
| Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | 1140×300×382 |
| Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 |
| Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W |
| Speed | r/min | 880 | 880 | 850 |
| Outdoor air flow | m3/h | 2100 | 2200 | 3300 |
| Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 |
| Outdoor unit | Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 900×700×337 |
| Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 |
| Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 |
| Refrigerant type | / | R410A | R410A | R410A |
| Max Design pressure | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 |
| Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 |
| Max. refrigerant pipe length | m | 15 | 20 | 25 |
| Max. difference in level | m | 8 | 10 | 10 |
| Drain pipe size | mm | 16 | 16 | 16 |
| Refrigerant connction copper pipe length | m | 3 | 4 | 4 |
| Connection wire length | m | 4 | 5 | 5 |
| Electronic Expansion Valve | / | Yes | Yes | Yes |
| Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 |
