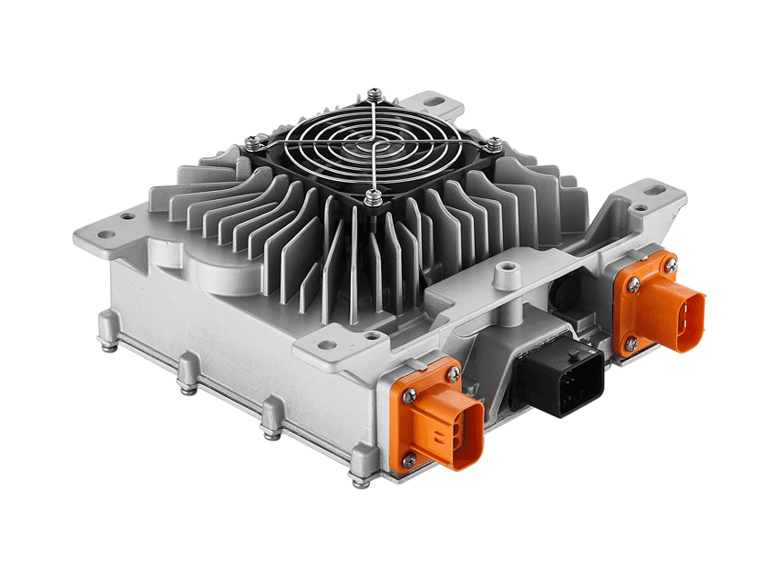

TC charger 3.3KW+1KW CD-M Series
Basic Specification:
Charger
Input voltage range：AC90V~264V
Frequency：45Hz~65Hz
Power factor：≥0.99
Efficiency at full loading：≥93%
Mechanical impact and vibration grade：QC/T 895－2011
IP grade：IP67
Operation temperature：- 40℃～85℃
Storage temperature: - 40℃～105℃
Charging control：CAN
Protection：Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature
DC/DC
Nominal power：1KW
Peak power：1.2KW continuous with 6mins
Input voltage and current：14V±1%、72A
Efficiency at full loading：≥92%
Voltage regulatory：1%
Voltage stabilized accuracy：≤1%
Current stabilized accuracy：≤2%
Operation temperature：- 40℃～60℃
Storage temperature: - 40℃～105℃
Control way：CAN or Enable
Protection：Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error
Size： 260(length) x 244(width) x 95(height)
Cooling way：Enforce?Air?Cooling
