| NO | Model No. | BP-HP-5KWH-A | BP-HP-7KWH-A | BP-HP-10KWH-A |
| 1 | Rated Voltage | 51.2V | 51.2V | 51.2V |
| 2 | Cell Combination Type | 16S | 16S | 16S |
| 3 | Rated Capacity | 100Ah | 135Ah | 200Ah |
| 4 | Rated Energy | 5.12KWh | 6.91KWh | 10.24KWh |
| 5 | Voltage Range | 40V～58.4V | 40V～58.4V | 40V～58.4V |
| 6 | Cycles(80%DOD) | 6500 cycles | 6500 cycles | 6500 cycles |
| 7 | Depth of Discharge | 80% | 80% | 80% |
| 8 | Charge Current | 20A | 20A | 40A |
| 9 | Discharge Current | 20A | 20A | 40A |
| 10 | Maximum Continuous Charge Current | 80A | 80A | 160A |
| 11 | Maximum Continuous Discharge Current | 100A | 100A | 200A |
| 12 | Maximum Continuous Charge/Discharge Current | 5.12KW | 6.19KW | 10.24KW |
| 13 | Weight | 60kg | 80kg | 120kg |
| 14 | Dimension L*W*D(mm) | L650*W384*H142mm | L650*W420*H135mm | L680*W412*H231mm |

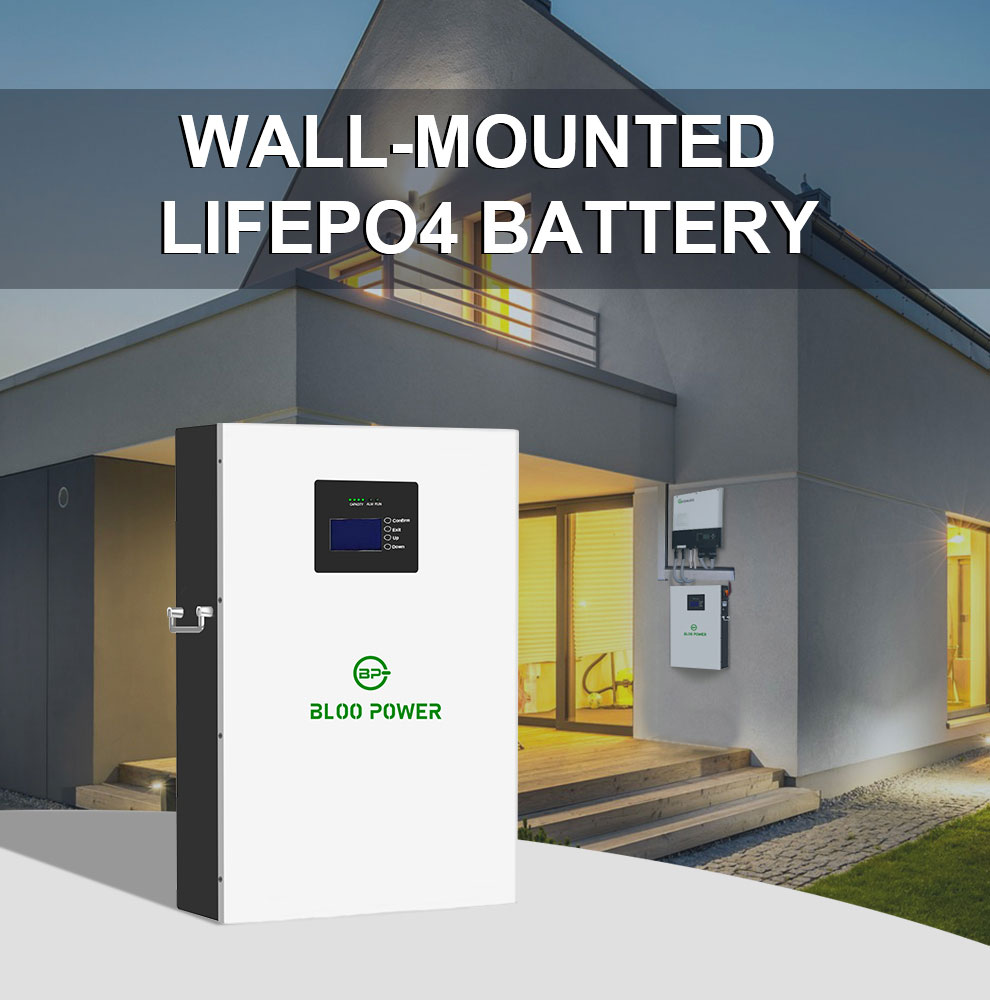

| 15 | Battery Type | Wall-mounted | ||
| 16 | Operation Temperature | Charge: 0℃~55℃,Discharge: -10℃~55℃ | ||
| 17 | Storage Temperature | Keep at -10℃ to 55℃ | ||
| 18 | Cell Type | LiFePo4 Cell | ||
| 19 | Maintenance | Maintenance free | ||

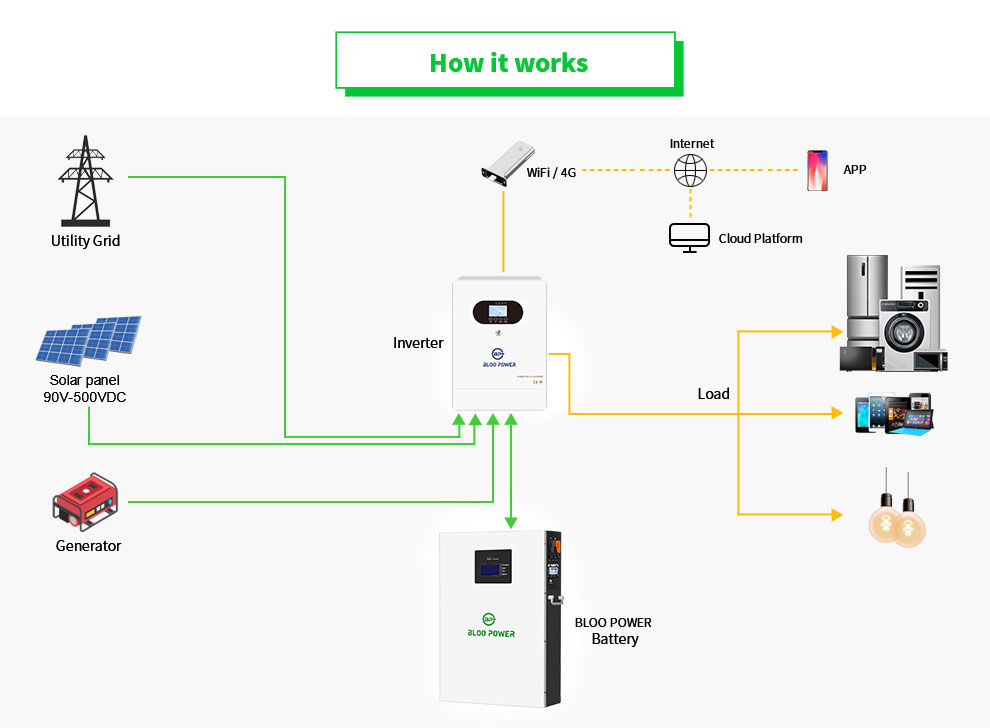

| 20 | Compatibility | Compatible with most of available off-gird/hybird inverters and charge controllers | ||

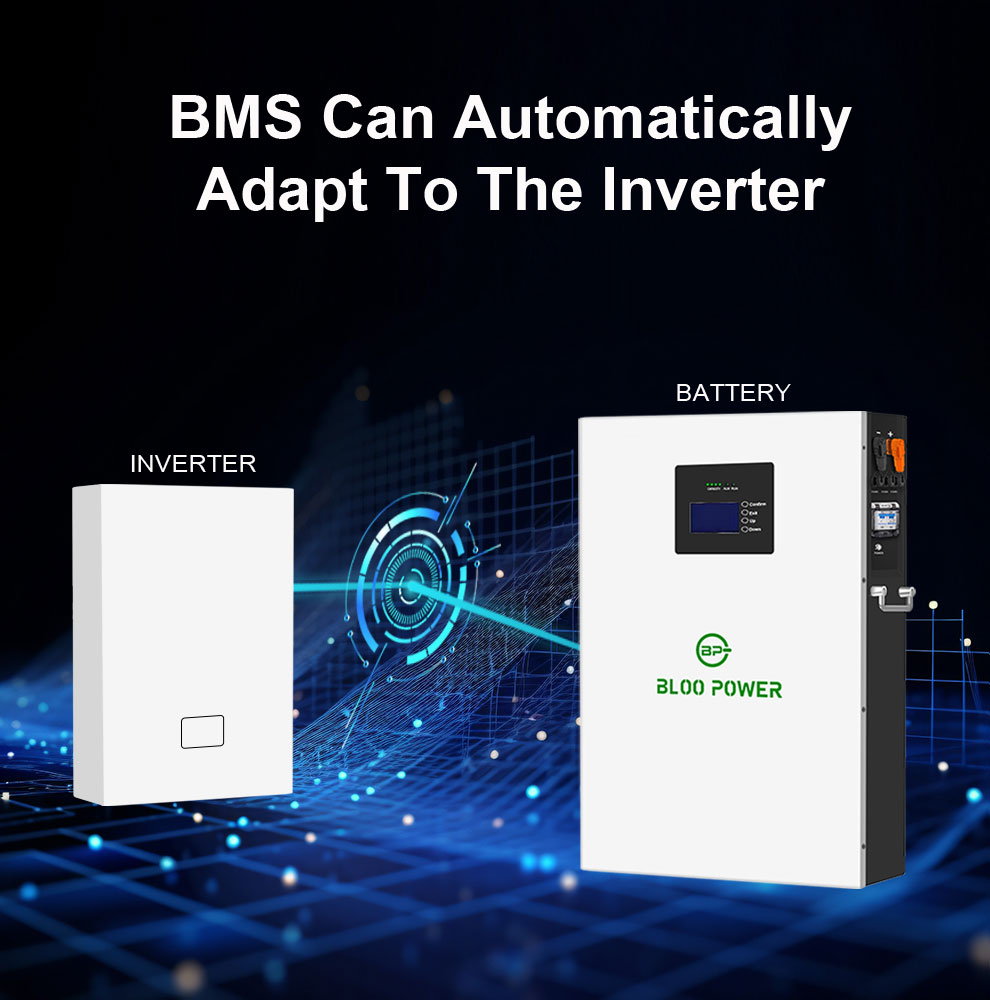

| 21 | BMS | Intelligent battery mangement system | ||

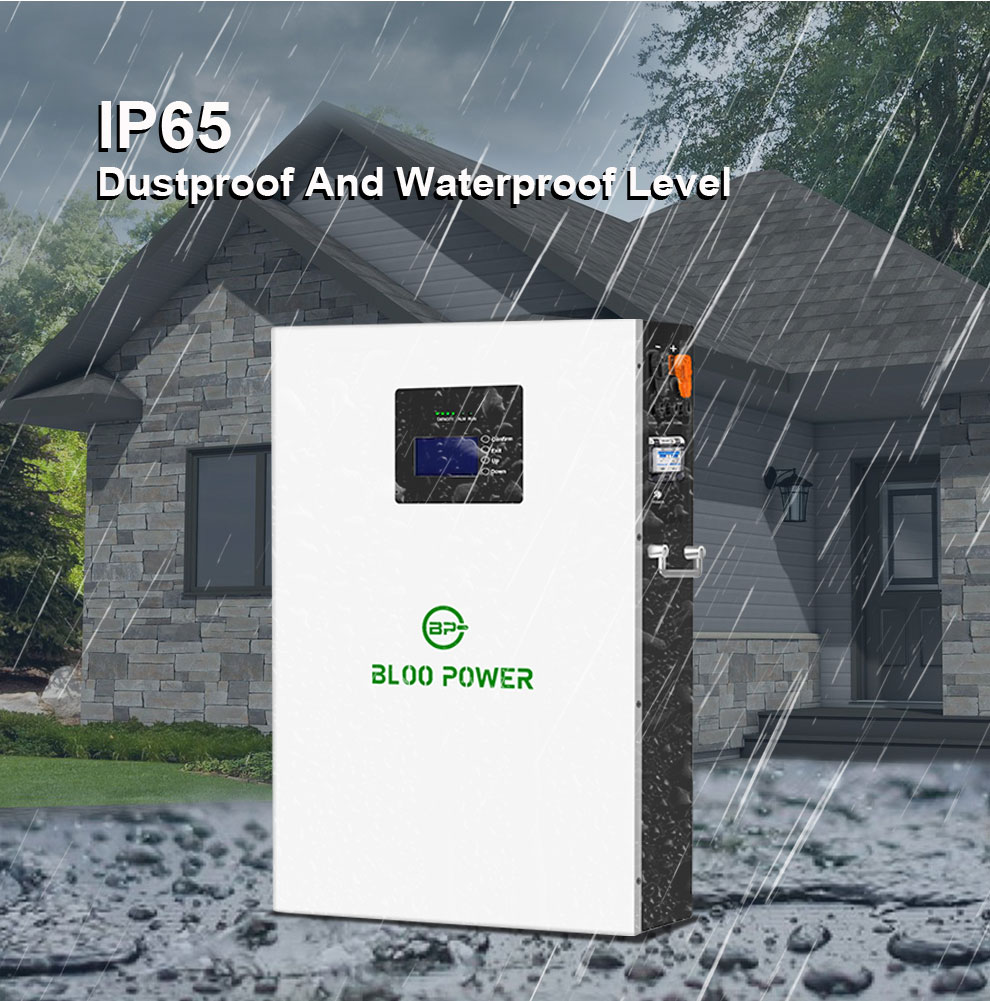

| 22 | IP Protection | IP 65 | ||

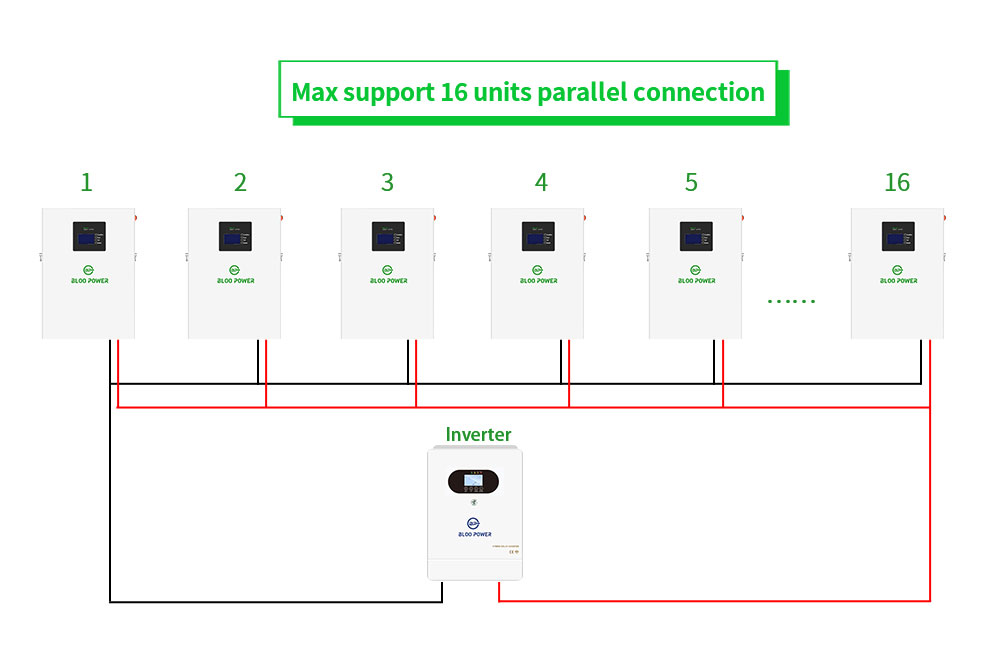

| 23 | Maximum Parallel/Moduler Connection | 16pcs | ||
Product Features
1.Low MOQ for OEM order
2.Customization services, satisfy different needs

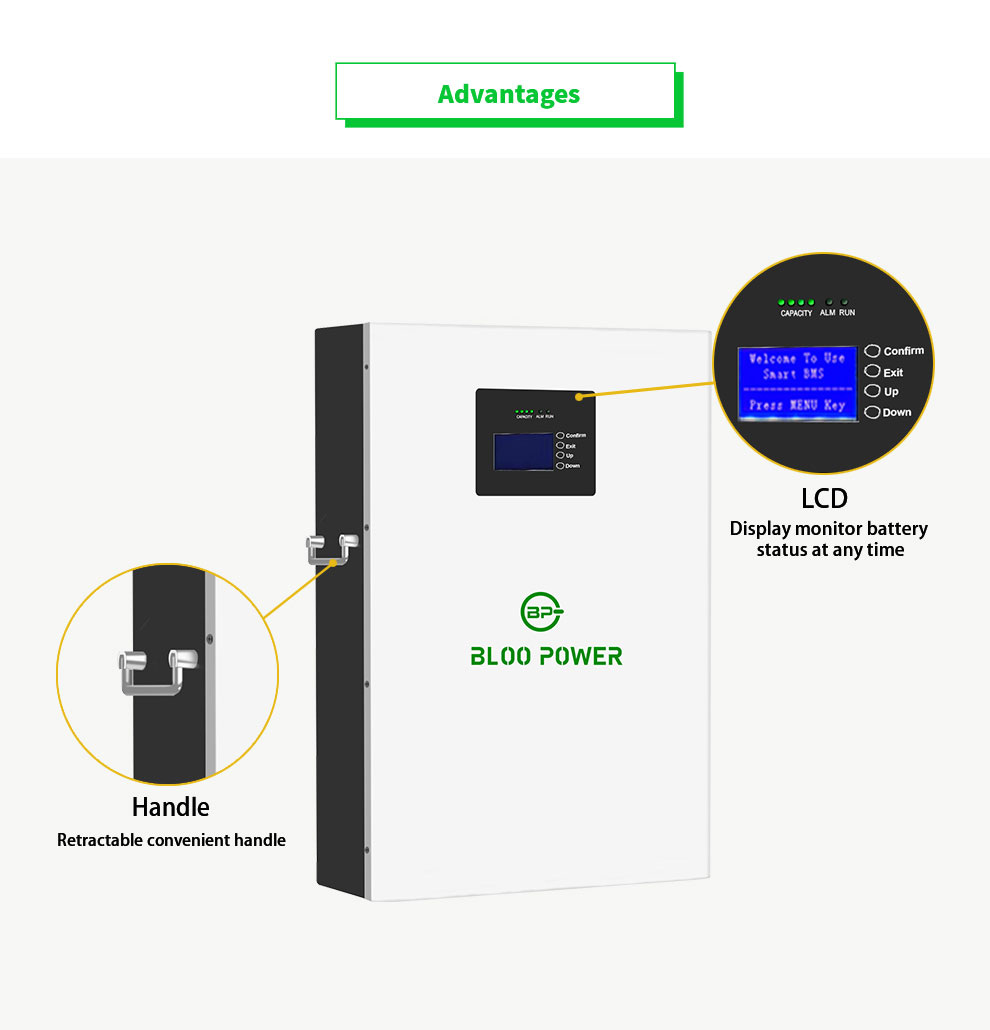

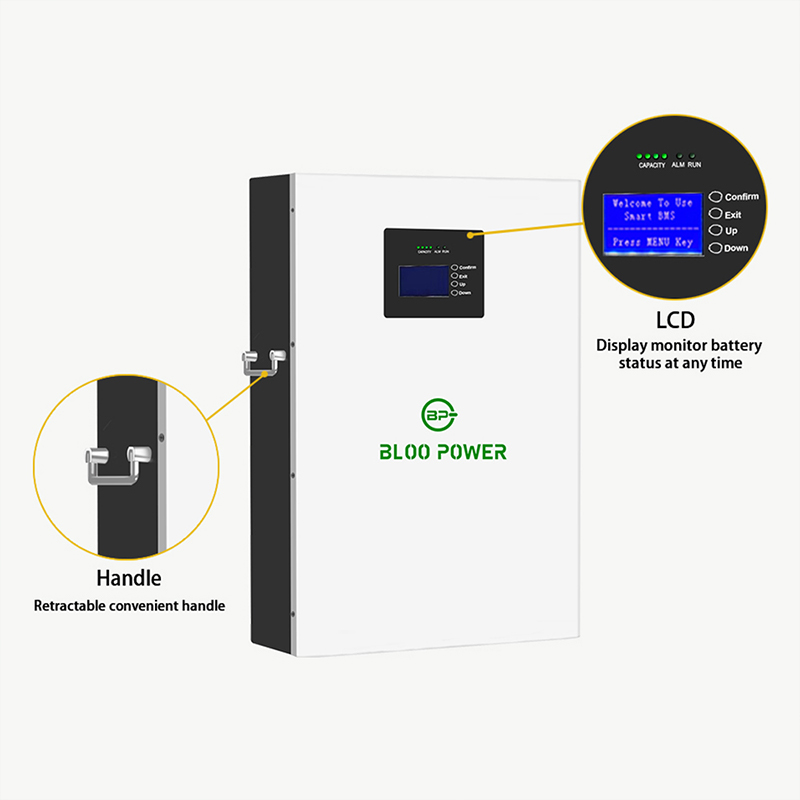

3. LCD design for easy-to-check battery condition.
4. High-grade IP level, anti-water and anti-dust.
5. Scalable function: expand capacity as easy as pie.
