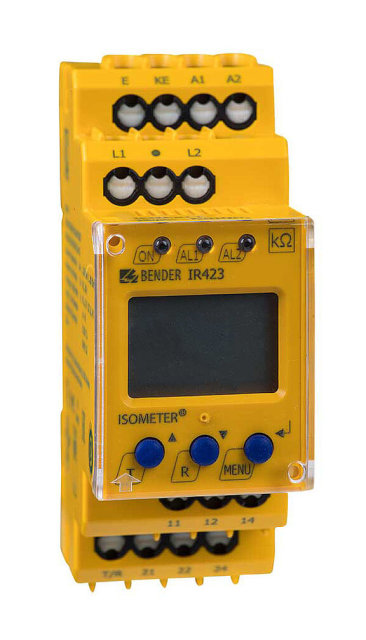

The ISOMETER? of the IR423 series is designed to monitor the insulation resistance RF of an unearthed AC system of 0…300 V to earth that is supplied by a mobile generator according to IEC 60364-5-551 / DIN VDE 0100-551 (VDE 0100-551). The IR423 is suitable for AC systems with operating frequencies ≥ 30 Hz as well as for AC systems with directly connected DC circuits. The maximum permissible system leakage capacitance Cemax is 5 F.
Features
- Insulation monitoring for mobile generators AC 0…300 V
- Protection by electrical separation with insulation monitoring and disconnection
- Version W for protection against high mechanical stress
- Two separately adjustable response values
- Connection monitoring system/earth
- Power On LED, alarm LEDs: Alarm 1, Alarm 2
- Internal/external test/reset button
- Two separate alarm relays (one changeover contact each)
- N/O or N/C operation, selectable
- Fault memory behaviour, selectable
- Self monitoring with automatic alarm
- Multi-functional LC display
- Adjustable response delay
- Two-module enclosure (36 mm)
- Push-wire terminal (two terminals per connection)
Applications
- IEC 60364-7-717, DIN VDE 0100-717 (2005) Electrical installations in mobile or transportable units
- DIN VDE 0100-551 (VDE 0100-551), IEC 60364-5-551 Low-voltage generating sets (mobile generators)
- GW 308 Mobile Stromerzeuger für Rohrleitungsbaustellen 8/00 (Mobile auxiliary power generators on pipeline site) (DVGW)
- BGI 867 Auswahl und Betrieb von Ersatzstromerzeugern auf Bau- und Montagestellen (Selecting and operating standby generators on construction and installation sites)
