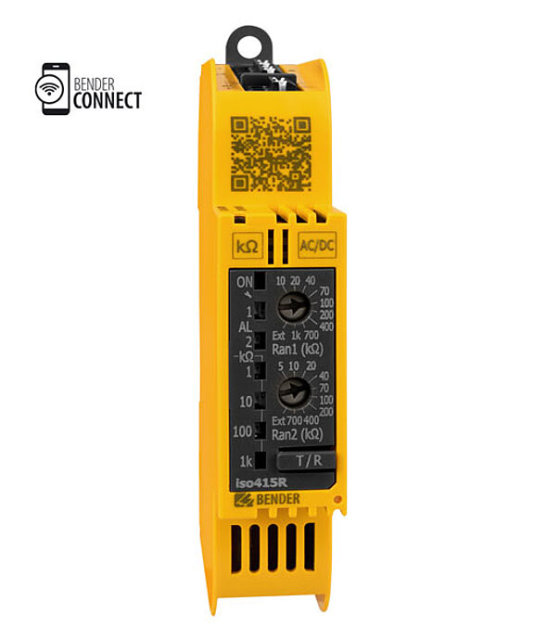

The new ISOMETER? iso415R is a simple and intelligent ground-fault monitor for electrical safety in control circuits and other applications It is for ungrounded systems for compliance with IEC 60364-4 and meets IEC 61557-8 requirements It combines easy operation multiple interfaces flexible application options and a compact design It is the first device of Bender's new SmartDetect series and offers maximum safety in ungrounded AC AC/DC and DC systems Fast simple operation was a central goal in the development of the new iso415R That is why the parameters of the ISOMETER? can be set either with two rotary potentiometers with the Bender Connect app or with Modbus RTU communications With the app the iso415R can be set up before installation In addition a setting made once can be transferred to any number of devices All technical information including the manual can be conveniently accessed at any time via the QR code The measured value is displayed by LEDs The device which is only 18 mm (0 7”) wide is installed by simply pushing it into place on a DIN rail
With the NFC function and the Bender Connect App you can easily configure the iso415R via a smartphone
1 Only adjustable via Modbus RTU or Bender App
