2001-06
| Item | Technical parameters |
| Object monitored | Temperature |
| Monitoring range | Temperature: (55～140)℃ |
| Wiring | L1 & L2 for loop connection - polarity-free; |
| Rated voltage | DC24V |
| Usage environment | Temperature: -10～65℃ Humidity: 10~93%RH(no condensation) |
| Working current | <0.1mA |
| Addressing method | with encoder |
| Address range | 1-252 |
| Distance to the temperature sensor | ≤1m |
| Installation | Rail mounting |
| Applied standard | Electrical fire monitoring system - part 3:temperature sensing electrical fire monitoring detectors |

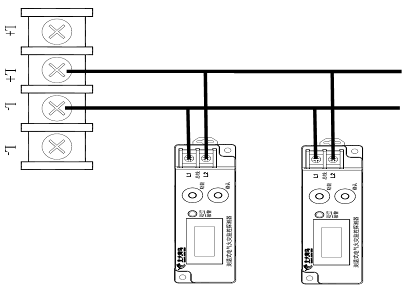

WiringThe detector is connected to the electrical fire monitoring equipment. As shown in the following figure, connect L1, L2 of the JBF6118type electrical fire monitoring detector to the loop that connecting L+ and L- of the electrical fire monitoring equipment.
