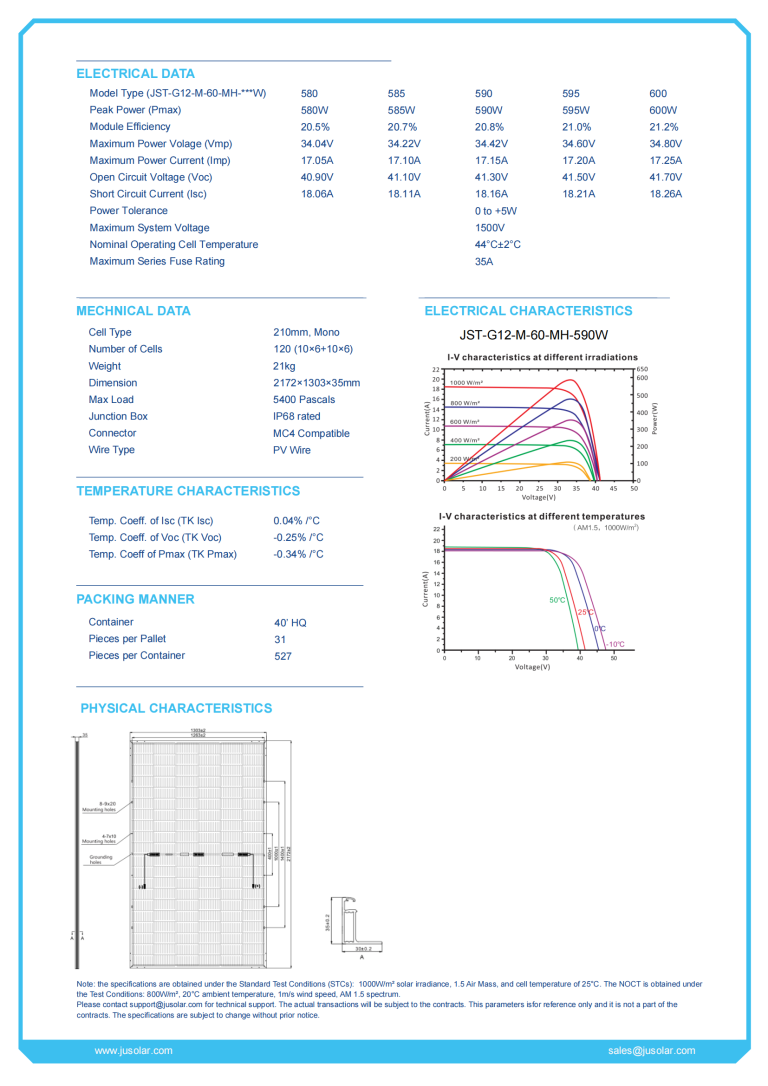

ELECTRICAL DATA
| Model Type JST-G12-M-60-MH- (580-600)W Bifacial | 580 | 585 | 590 | 595 | 600 |
| Peak Power (Pmax) | 580W | 585W | 590W | 595W | 600W |
| Module Efficiency | 20.50% | 20.70% | 20.80% | 21.00% | 21.20% |
| Maximum Power Volage (Vmp) | 34.04V | 34.22V | 34.42V | 34.60V | 34.80V |
| Maximum Power Current (Imp) | 17.05A | 17.10A | 17.15A | 17.20A | 17.25A |
| Open Circuit Voltage (Voc) | 40.90V | 41.10V | 41.30V | 41.50V | 41.70V |
| Short Circuit Current (Isc) | 18.06A | 18.11A | 18.16A | 18.21A | 18.26A |
| Power Tolerance | 0 to +5W | ||||
| Maximum System Voltage | 1500V | ||||
| Nominal Operating Cell Temperature | 44°C±2°C | ||||
| Maximum Series Fuse Rating | 35A |
MECHNICAL DATA
| Cell Type | 210mm, Mono |
| Number of Cells | 120 (10×6+10×6) |
| Weight | 35kg |
| Dimension | 2172×1303×35mm |
| Max Load | 5400 Pascals |
| Junction Box | IP68 rated |
| Connector | MC4 Compatible |
| Wire Type | PV Wire |
