Product Features:

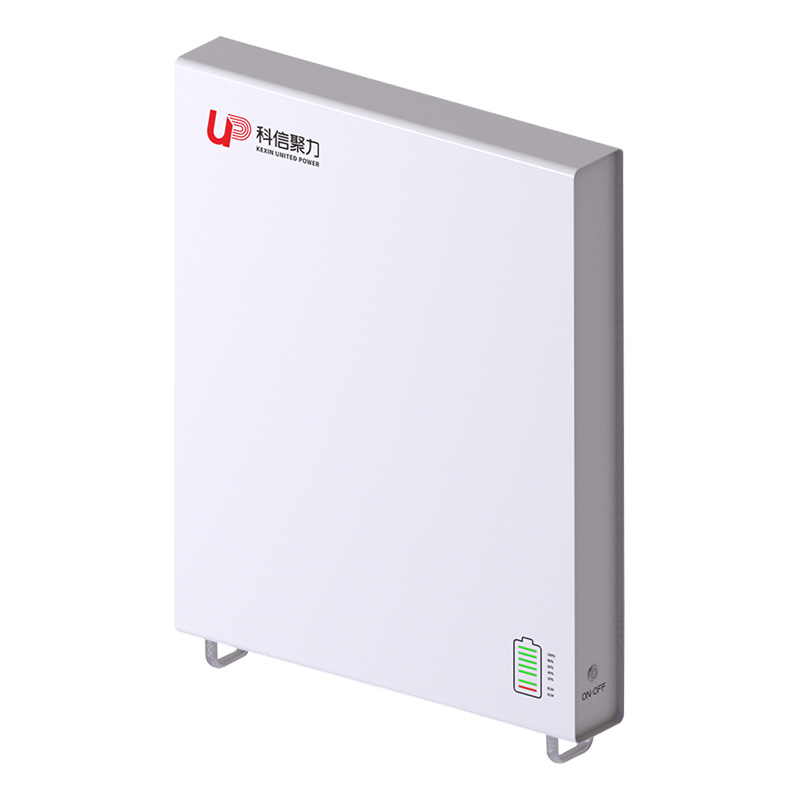

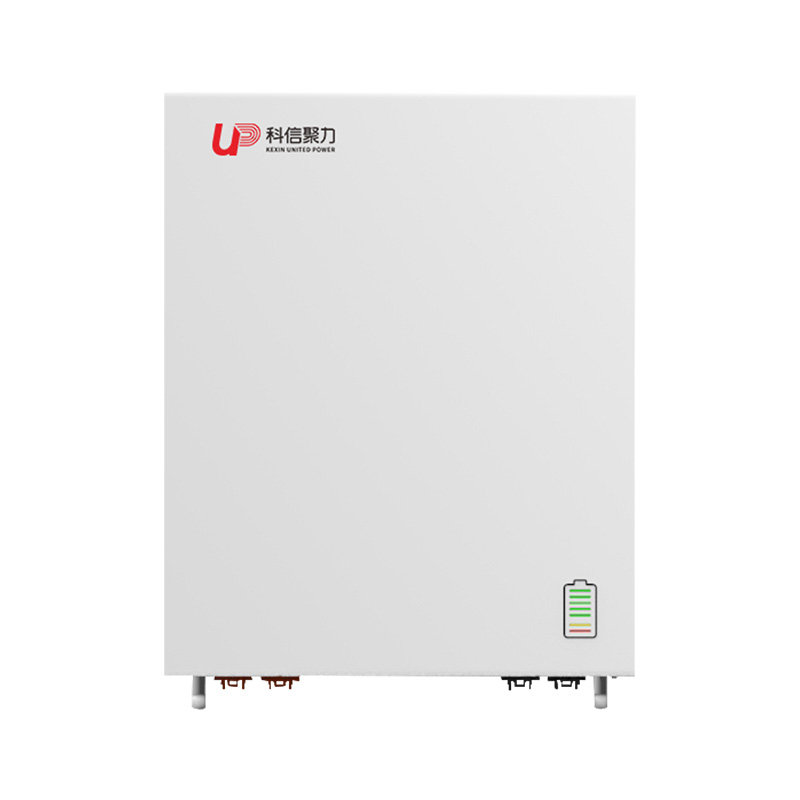

Ultra-thin Wall-Mounted Design: The Kexin UPPF16100B boasts an ultra-slim, wall-mounted design that not only saves space but also enhances the beauty and sophistication of your living space. Its sleek profile ensures it blends seamlessly into any home environment, transforming it from a mere energy storage device into a stylish accessory.
Highly Stable BMS System: Equipped with a built-in, highly stable Battery Management System (BMS), this against potential hazards such as overcharge, overdischarge, overcurrent, and extreme temperature fluctuations. This ensures your peace of mind, knowing that your energy storage solution is constantly monitored and protected.
Real-Time Display with LED Strip: For added convenience, the Kexin UPPF16100B features an LED strip that provides real-time information on battery capacity and status. This intuitive display allows you to quickly gauge the battery's health and remaining power, ensuring you're always in control of your.
Efficient Main Negative Circuit Control: Utilizing low resistance MOS tubes for the main negative circuit control, the battery ensures optimal energy transfer efficiency. This not only maximizes the battery's performance but also minimizes energy loss, making it an eco-friendly and cost-effective choice.
Automatic Code Assignment & Parallel Capability: With an automatic code assignment function, the Kexin UPPF16100B supports up to 15 groups in parallel connection. This feature is ideal for environments with demands, enabling you to scale up your energy storage capacity as needed without compromising performance or safety.
|
Item |
Parameters |
|
Product Model |
UPPF16100B |
|
Rated Voltage |
51.2V |
|
Working Voltage Range |
44.8~58.4V |
|
Rated Capacity |
100Ah |
|
Rated Charge Capacity |
5.12kWh |
|
Combination Method |
1P16S |
|
Charge Voltage |
56V |
|
Charge Current |
Continuous:50A Maximum:80A |
|
Discharge Current |
Maximum ContinuousCurrent:100A |
|
Factory Voltage |
50.4V-53.6V |
|
Self-Discharge Rate |
≤2%/month |
|
Equalization Method |
Passive Equalisation |
|
Parallel Mode |
Automatic Coding |
|
Charge Temperature |
0℃~+55℃ |
|
Discharge Temperature |
-20℃~+60℃ |
|
Protection Level |
IP2X(IP65 Optional) |
|
Communication Method |
CAN/RS485 |
|
Dimension |
670*540*90±1mm |
|
Weight |
48±2KG |
|
Cycling Life |
>6000cycle@80%DOD,25℃,0.5C |
|
Certification |
UN38.3、CE、IEC62619、ROHS |
