Product Features:

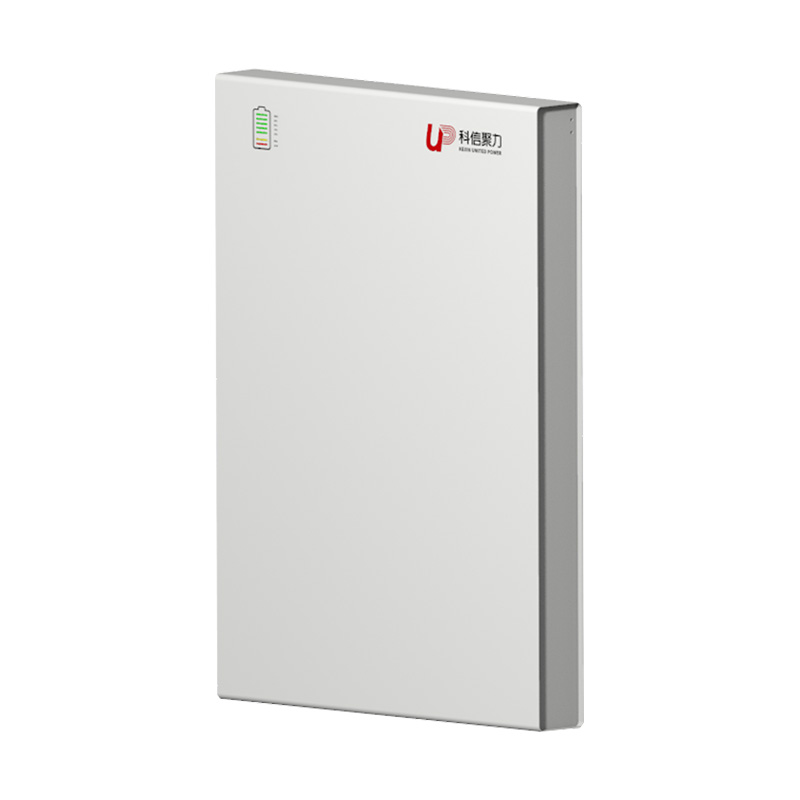

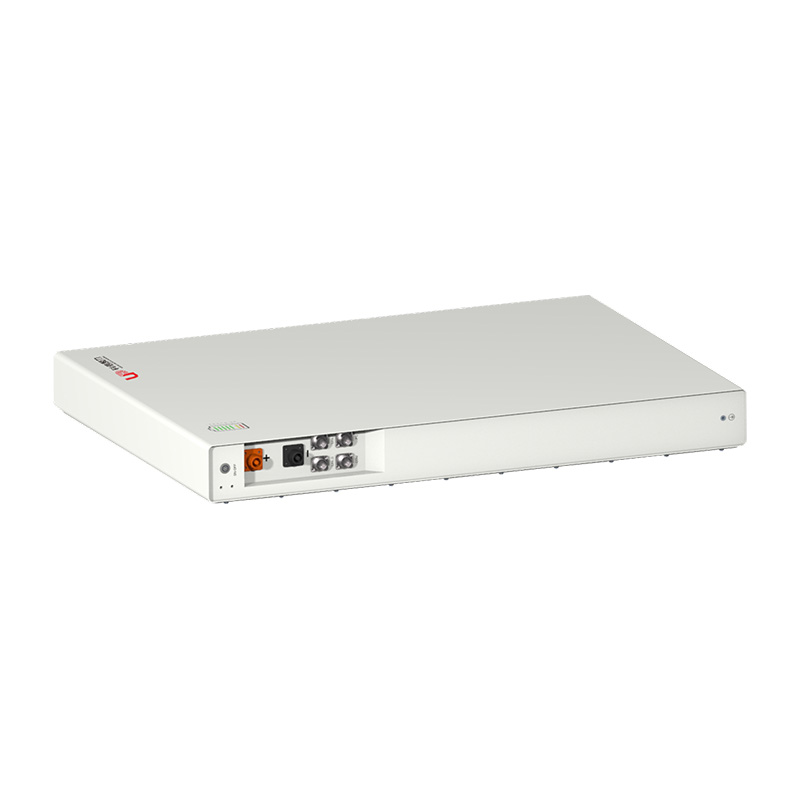

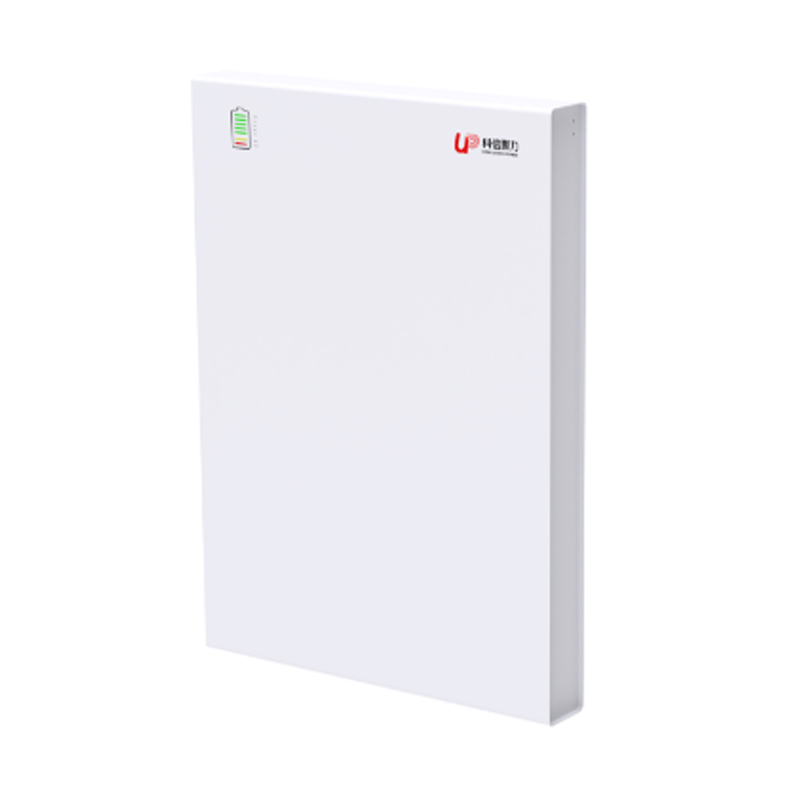

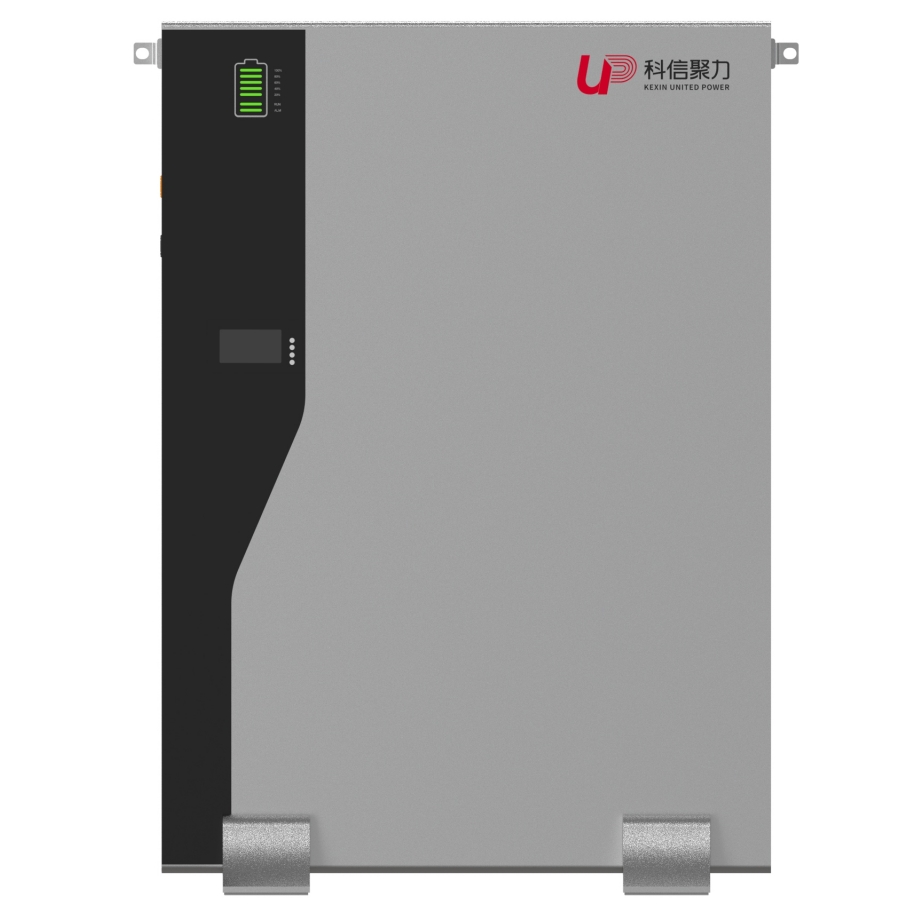

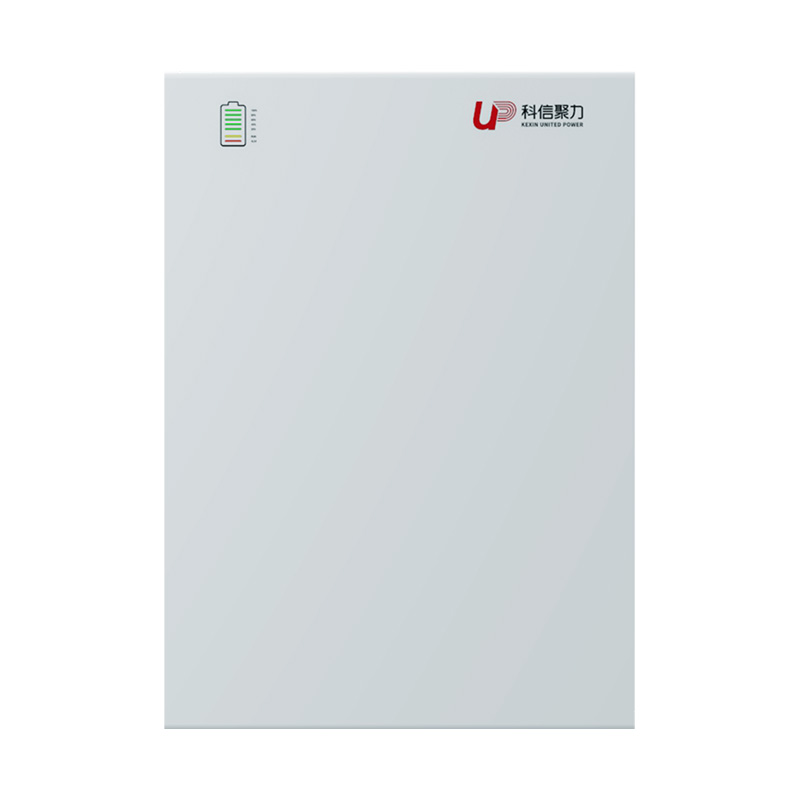

Ultra-Thin Wall-Mounted Design: Elegantly crafted to be both beautiful and space-saving, the Kexin Wall-Mounted Battery integrates seamlessly into any home decor. Its sleek design not only enhances the visual appeal of your living space but also ensures optimal utilization of wall space.
Advanced BMS System: Equipped with a highly stable Battery Management System (BMS), this battery safeguardscharge, overdischarge, overcurrent, and extreme temperature conditions. This robust protection mechanism ensures the longevity and safety of your energy storage investment.
LED Display for Real-Time Monitoring: Keep track of your battery's capacity and status with ease, thanks to the integrated LED strip. This feature offers instant visibility into the battery's health, allowing for proactive maintenance and optimal energy management.
Low Resistance MOS Tube Technology: Utilizing low resistance MOS tubes for the main negative circuit control, the Kexin Wall-Mounted Battery ensures efficient energy transfer with minimal loss. This technological advancement enhances overall performance and maximizes the system's energy output.
Automatic Code Assignment & Parallel Connectivity: The battery supports up to 15 groups in parallel, automatically assigning codes to each unit. This capability makes it an ideal choice for high-power demand environments, providing the scalability needed to meet the evolving energy requirements of households, businesses, and industries alike.
Application Areas:
kexin Wall-Mounted Battery 51.2V200Ah HESS-UPPF16200F/A is the perfect choice for a wide range of applications, including:
Household Energy Storage: Ideal for residential use, it ensures reliable backup power during outages and supports renewable energy systems like solar panels, reducing reliance on traditional grid electricity.
Commercial & Industrial Energy Storage: Suitable for businesses and industries requiring consistent and reliable power supplies, it provides a scalable solution to manage energy demands and reduce operational costs.
Experience the future of energy storage with the Kexin Wall-Mounted Battery 51.2V200Ah HESS-UPPF16200F/A. Contact us today to learn more about how this innovative product can transform your energy landscape.
|
Item |
Paramaters |
|
Product Model |
UPPF16200 F/A |
|
Rated Voltage |
51.2V |
|
Working Voltage Range |
44.8~58.4V |
|
Rated Capacity |
200Ah |
|
Rated Charge Capacity |
10.24kwh |
|
Combinatlon Method |
2P16S |
|
Charge Voltage |
56V |
|
Charge Current |
Continuous:100A Maximum:160A |
|
Discharge Current |
Maximum Continuous Current:200A |
|
Factory Voltage |
50.4V-53.6V |
|
Self-Discharge Rate |
≤2%/Month |
|
Equalization Method |
Passive Equalisation |
|
Parallel Mode |
Automatic Coding |
|
Charge Temperature |
0℃~+50℃ |
|
Discharge Temperature |
-20℃~+60℃ |
|
Protection Level |
IP65 |
|
Communication Method |
CAN/RS485 |
|
Dimension |
700*980*100±1mm |
|
Weight |
95±2KG |
|
Cycling Life |
≥6000times@80%DOD,25℃,0.5C |
|
Certification |
UN38.3、CE、IEC62619、ROHS |
