Equipment Parameters

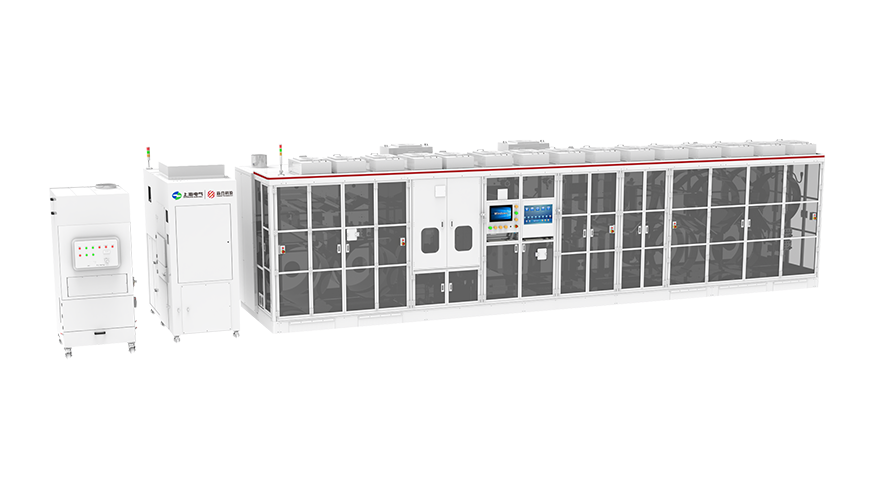

Equipment model | YHLC800A |
|---|---|
Overall line dimensions (mm) | 8000(L)*2300(W)*2800(H) |
Operating line speed(m/min) | 60-120 |
Laser cutting burrs(μm) | ≤10 |
Electrode slitting burrs(μm) | ≤7 |
Electrode width specifications(mm) | 150-500 |
Reel diameter specifications(mm) | ≤1000 |
Electrode slitting error(mm) | ±0.2 |
Accuracy of tab cutting position(mm) | ±0.2 |
| Accuracy of tab shape cutting(mm) | ±0.2 |
Accuracy of correction control(mm) | ±0.1 |
Accuracy of Mark hole position(mm) | ±0.3 |
Electrode thickness specifications(μm) | 60-250 |
Foil thickness specifications(μm) | 4.5-20 |
Dust removal effect | 10000-level Cleanliness |
