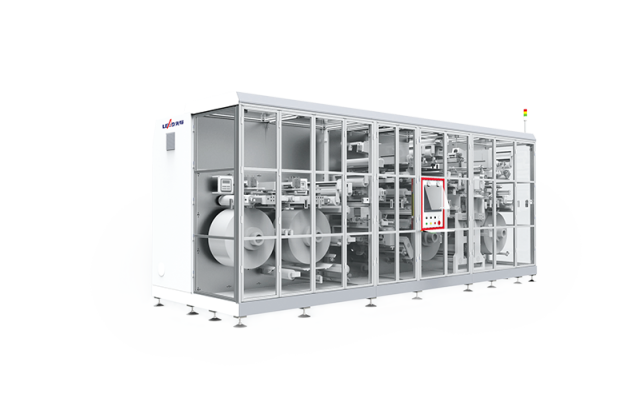

1. Maximum notching speed under steady production: 120m/min;
2. Compatible electrode width: 150-500mm;
3. Configurations: 2 unwinding plus 2 rewinding stations, 2 unwinding plus 1 rewinding stations, or 2 unwinding plus 4 rewinding stations; high-precision automatic roll change; ultra high speed laser notching; efficient impurity control measures.
Small burr, less heat impact, high quality cutting end face
High precision pair roller conveyor, length accuracy：±1.5mm( 6m electrode)，±3mm( 12m electrode)
High speed laser cutting control system, with stable production speed of 60m/min (tab height<25mm)
Brush, vacuum suction, FFU, dedusting fan, etc. to control particles and impurities and guarantee safe performance
