| Part Number | LFP48V4.8KWH50E |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah (C5,25℃) |
| Energy | 4.8KWh |
| Internal Resistance | ≤50m Ω |
| Cycle Life | >10000 cycles @0.2C 100%DOD |
| Warranty | 10 years |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.2C |
| Efficiency of Discharge | 96~99%@1C |
| Charge Voltage | 54.8±0.2v |
| Charge Mode | 0.2C to 29.2V, then 29.2,charge current 0.02C(CC/CV) |
| Charger Current | 20A |
| Max.Charge Current | 100A |
| Charge Cut-off Voltage | 55.5V±0.2V |
| Continuous Current | 100A |
| Max. Pulse Current | 150A(<3s) |
| Discharge Cut-off Voltage | 37.5V |
| Charge Temperature | 0 ℃ ~ 45 ℃ (32F to 113F)@60士25% Relative Humidity |
| Discharge Temperature | -20 ℃ ~ 60 ℃ (-4F to 140F)@60士25% Relative Humidity |
| Storage Temperature | 0 ℃ ~ 40 ℃ (32F to 104F)@60土25%Relative Humidity |
| IP Grade | IP65 |
| Cell & Method | 3.2V50AH-8S2P |
| Plastic Case | 4U standard case |
| Dimensions (in./mm.) | 483*510*170mm |
| Weight (lbs./kg.) | 45Kg |
| Terminal | 100A through terminal |
| Protocol (optional) | RS485/CAN |
| BMS | 15S100A |

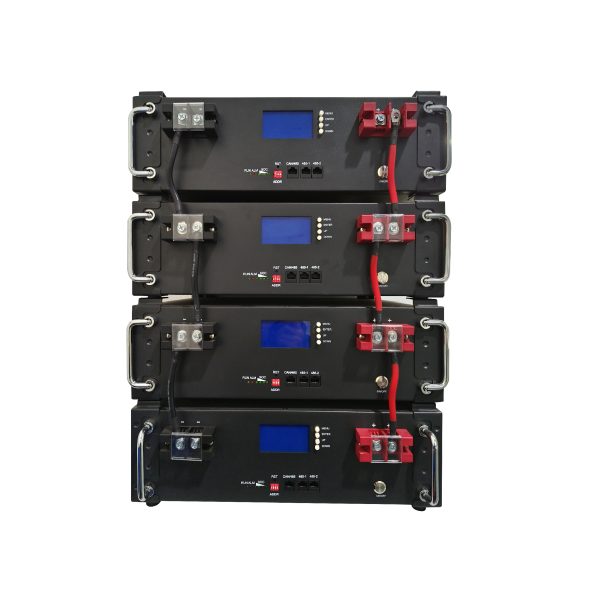

This is just one of our energy storage degree specifications, we can do 48v 2.5kwh 3.2kwh 5kwh 7.5kwh 10kwh 15kwh , even 30kwh 50kwh… Through different series and parallel numbers to achieve your energy storage needs
For the selection of cells, we routinely use supercapacitor Soft package cells. If you have different discharge rate requirements or different usage scenarios, please contact us to customize different cell solutions for you
