PARAMETERS

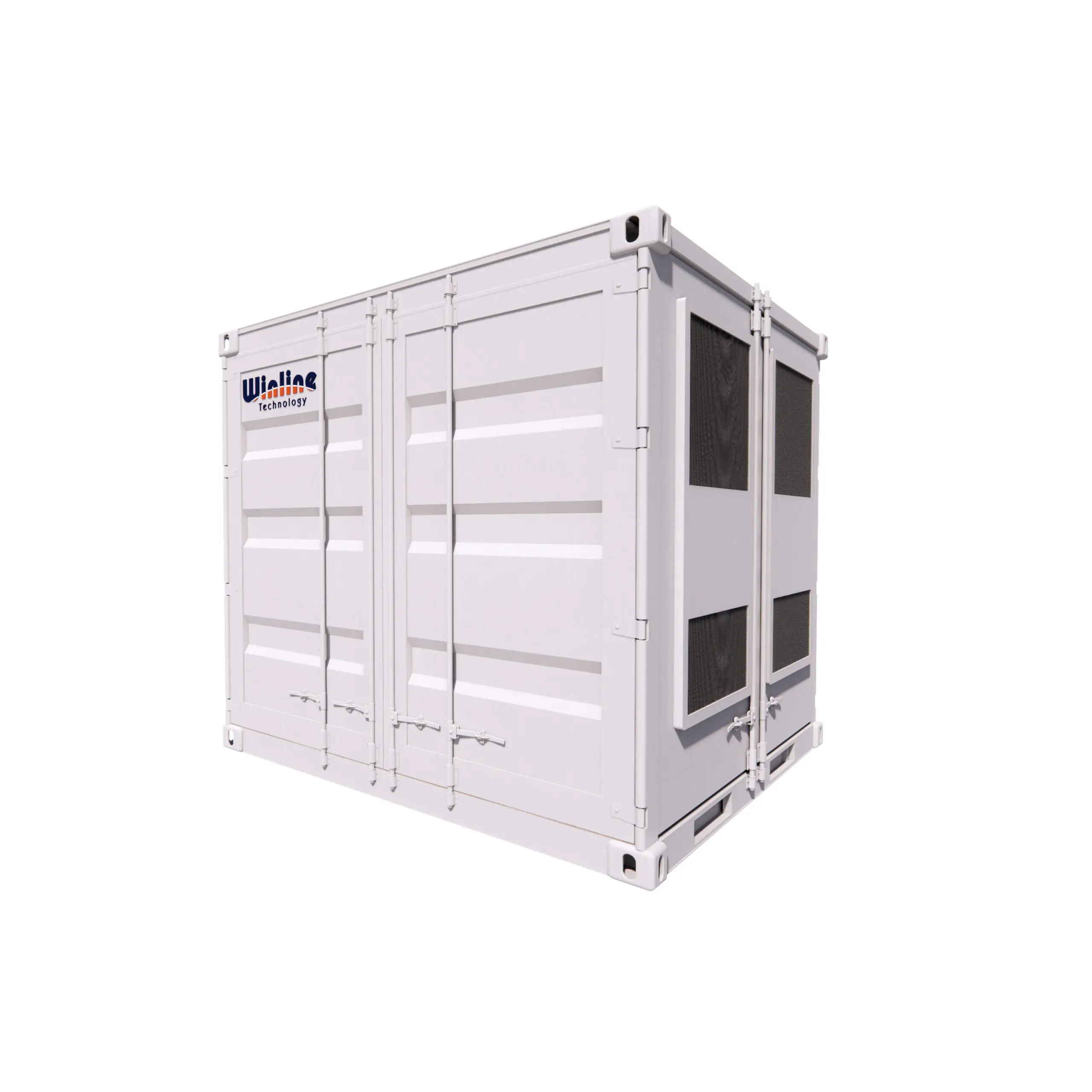

YLBESSLC-625kW-1205kWh | ||
Battery | Cell?type | Lithium?Iron?Phosphate 3.2V/314Ah |
Battery?Pack | 48.2kWh/1P48S | |
Battery?system?configuration | 1P240S | |
Battery?system?capacity | 241.15kWh | |
Battery?rated?voltage | 768VDC | |
Battery?voltage?range | 624~876VDC | |
Charge?and?discharge?rate | 0.5C | |
Number?of?charge?and?discharge?cycles | ＞6000 times?(25°C 0.5C?charge?and?discharge?80%?DOD) | |
AC parameters | Rated?power | 625kW |
Max.?power | 687.5kW（10min） 750kW（1min) | |
Ratedvoltage | 3*230V/400V | |
Allowable?grid?voltage?range | 400V±15% | |
Frequency | 50/60Hz | |
Frequency?range | 47Hz~52Hz/56Hz~62Hz | |
Current?total?harmonic?distortion | ≤3%(at?rated?power) | |
DC?component | ＜0.5%?output?rated?current | |
Access?method | 3P+N+PE | |
Power?factor | >0.99 | |
Power?factor?range | 1（leading）~-1（lagging） | |
Off-grid?operation | Support | |
Communication?interface | RS232/RS485/WiFi/4G/Ethernet | |
Human-computer?interaction | Touch?screen/indicator/APP | |
System | Rated?charge?and?discharge?power | 625kW |
Energy?storage?system?capacity | 1205kWh | |
Weight | 16.5t | |
Dimensions(W*D*H) | 3000*2300*2600mm | |
Protection?level | IP54 | |
Noise | ＜75dB | |
Operating?temperature | -25°C~+50°C（derate?above?40°C） | |
Storage?temperature | -25°C~+55°C | |
Relative?humidity | 5%~95%?no?condensation | |
Fire?protection | perfluorohexanone | |
Working?altitude | ≤4000m（over?2000m,?derating?is?required） | |
Cooling?method | Air?conditioning?intelligent?liquid?cooling |
