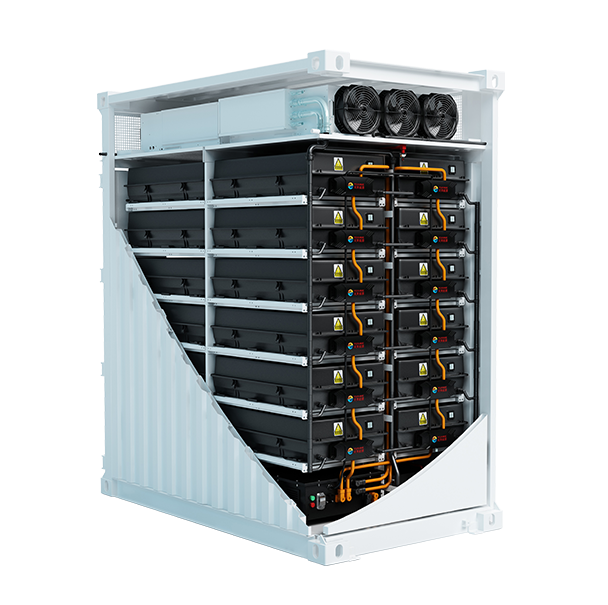

Smart and Safe Rack Isolated ESS Module
Features
Standardized Product Platform：standardized design, integration, transportation, expansion and installation, operation and maintenance
Separate Cabin Design：fire-resistant isolation for more than 3 hours, physically blocking the spread of fire spread
Multiple Firefighting Protection：very early warning, Novec 1230, high pressure fire water
Embedded Edge Computing：battery early warning intelligent algorithm
Intelligent Environmental Control System：precise thermal management technology
Innovative PDU Design：completely solve electrical risks such as load cut-off and overvoltage and overcurrent
20 Years Design Life：excellent environmental adaptability to cope with various working conditions
Product Parameters
| Ac Side Parameters | |
| Rated Power (kW) | 1350 |
| Input Voltage(VAC) | 0.55/10/35 |
| Rated Frequency(Hz) | 50/60(±5%) |
| Power Factor | -0.99~0.99 |
| PCS Efficiency | 98% |
| Harmonic Current | ≤2% |
| Control Mode | P/Q mode, VSG mode, DC bus voltage control mode |
| Dc Side Parameters | |
| Cell Capacity(Ah) | 280 |
| Numbers in Parallel | 1 |
| Numbers in Series | 36 |
| Pack Combination | 1P36S |
| Pack Capacity(kWh) | 32.26 |
| Pack Series Quantity | 12 |
| Rack Combination | 1P432S |
| Rack DC Voltage Range(VDC) | 1209.6~1555.2 |
| Rack Capacity(kWh) | 387.07 |
| Rack Quantity | 2 |
| Container Quantity | 3.5 |
| Combination Of DC Side | 7P432S |
| Capacity Of DC Side（kWh） | 2709.5 |
| System Parameters | |
| Charge and Discharge Rate | ≤0.5C |
| Power/Capacity（kW/kWh） | 1350/2705 |
| Charge and Discharge Efficiency | ≥ 92% @0.5C（Excluding Auxiliary Power Consumption） |
| Working Temperature Range (℃) | -30~55 |
| Storage Temperature Range (℃) | -40~60 |
| Operating Humidity Range | <95%，without Condensation |
| Maximum Working Altitude （m） | ≤ 4000（>3000 Derating） |
| Cooling Method | Liquid Cooling |
| Fire Suppression System | Embedded |
| Other Parameters | |
| Weight(t) | ≤ 3.5 |
| Type | Modular Container |
| Size（Width * Height * Depth mm） | 1458×2896×2600 |
| IP Rating | IP56 |
