Summary

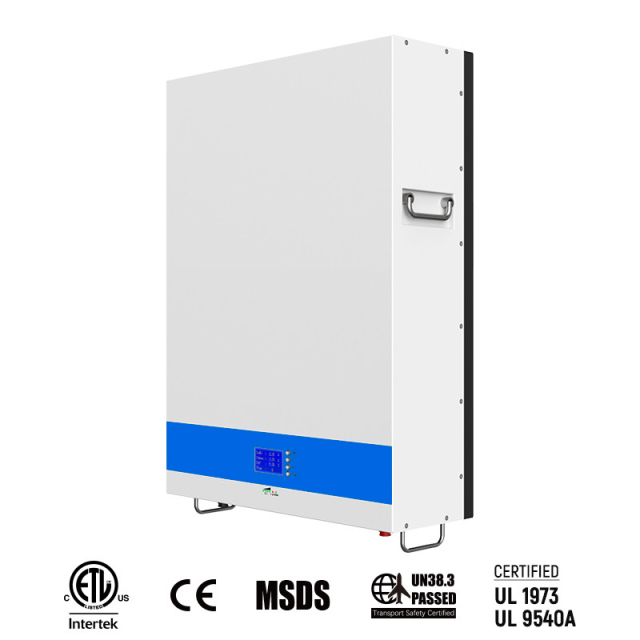

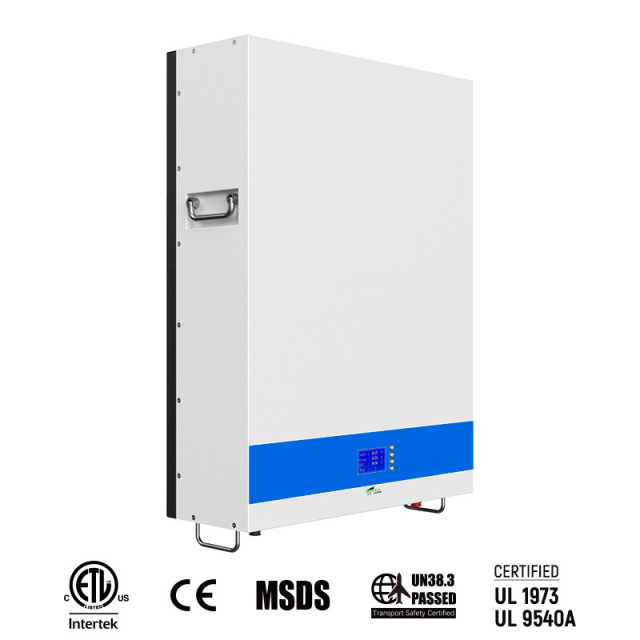

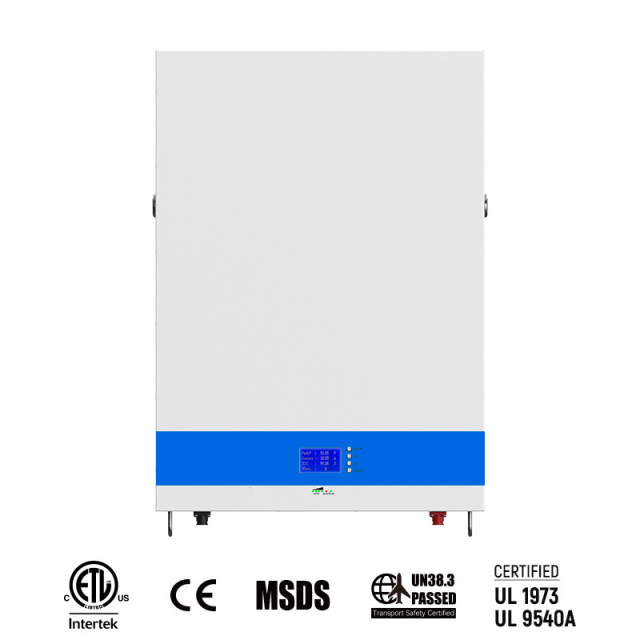

LISUN ENERGY 51.2V CATL LiFePO4 Battery 200Ah is a high-capacity 10kWh home energy storage system designed for residential solar power applications. Featuring advanced LFP battery chemistry and CATL cell technology, this wall-mounted battery offers an exceptional cycle life of over 8,500 cycles with 80% capacity retention, ensuring long-term reliability and a 20-year extended warranty. With a built-in intelligent BMS, it provides comprehensive protection against over-charge, over-discharge, over-current, and extreme temperatures, ensuring safe and efficient operation. Supporting up to 16 units in parallel (162kWh total), this solar battery is compatible with over 16 global hybrid inverter brands, making it ideal for scalable residential energy storage systems. The compact CTP design reduces size and weight, while the 150A max charge/discharge current supports high power demands, making it a versatile solution for off-grid and backup power systems.UL1973, IEC62619, CE, and UN38.3 certified, this LiFePO4 battery is engineered for durability, performance, and ROI optimization in home solar storage.More
Specifications
Battery chemical type:
LiFePO4
Nominal Voltage:
51.2V
  • LISUN ENERGY 51.2V CATL LiFePO4 Battery 200Ah Solar Power Wall 10kWh Home Energy Storage System with 8500 Cycles & 20-Year Warranty
  • LISUN ENERGY 51.2V CATL LiFePO4 Battery 200Ah Solar Power Wall 10kWh Home Energy Storage System with 8500 Cycles & 20-Year Warranty
  • LISUN ENERGY 51.2V CATL LiFePO4 Battery 200Ah Solar Power Wall 10kWh Home Energy Storage System with 8500 Cycles & 20-Year Warranty
MODEL NOLISUN-051200A-B-GBP2
Battery ChemistryLiFePO4
Capacity (Ah)200
ScalabilityMax.16pcs in parallel (162kWh)
Nominal Voltage (V)51.2
Operating Voltage(V)46-56
Energy (kWh)10.24
Usable Energy (kWh)9.22
Charge/Discharge Current (A)Recommend100
Max.150
Peak(2mins,25℃)200
Other Parameter
Recommend Depth of Discharge90%
Dimension (W/H/D,mm)735*525*190
Weight Approximate (kg)102.50
Master LED Indicator4 LED (SOC:25%~100%)
2 LED (working, alarming, protecting)
IP Rating of EnclosurIP20
Working TemperatureCharge:0℃~55℃ Discharge:-20℃~55℃
Storage Temperature0℃~35℃
Humidity5%~95%
Altitude≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)≥8500
InstallationWallmounted
Communication PortCAN2.0, RS485
Warranty Period [3]20 years
Life Cycle Power During Warranty Period44.84MWh@80% EOL
CertificationUL1973, CB-IEC62619, CE-EMC, MSDS, UN38.3
