Features & Advantages
High Energy Density: At the same weight or volume, the globalfrey Lithium Battery Module boasts a significantly higher energy storage capacity than traditional battery systems. This translates into longer runtimes and reduced space requirements for energy-intensive applications.
Long Cycle Life: Designed for durability, this module exhibits minimal performance attenuation even after numerous charge-discharge cycles. This not only ensures a longer operational lifespan but also significantly reduces the overall cost of ownership by minimizing replacement needs.
Enhanced Safety：porating a multi-layered safety protection design, the module safeguards against potential hazards such as over-charge, over-discharge, over-temperature, short circuits, and more. Rigorous testing, including needle puncture, short circuit, high-temperature, extrusion, and drop tests, ensures no fire or explosion, making it a safe and reliable choice.
High Consistency: The battery cells within the module undergo stringent screening and matching processes to ensure uniformity in capacity, internal resistance, voltage, discharge curve, and other critical parameters. This high consistency and reliability, enhancing overall performance.
Customizability: Recognizing the diversity of application scenarios, globalfrey offers customized solutions tailored to specific voltage, capacity, shape, and other requirements. This flexibility ensures that every customer's unique needs are met with precision and efficiency.
Product Details
Safety: Backed by extensive testing protocols, the module ensures complete protection against a wide range of hazards, ensuring safe operation under extreme conditions.
Reliability: -espan**: With an actual lifespan exceeding 20,000 hours and remaining capacity above 80%, the module demonstrates unparalleled endurance.
Failure Rate: Maintaining a failure rate below 3% over the last decade, globalfrey stands by its commitment to quality and reliability.
Customer Satisfaction: A testament to its excellence, the customer satisfaction rate is an impressive 100%.
Stability: Meeting stringent vehicle standards and complying with UN38.3 MSDS regulations, the module guaran and secure operation across various applications.
Productivity: When operated within an 80% depth of discharge (DOD) and fully charged once a week, the module can theoretically extend its battery life by approximately 20%, maximizing efficiency and productivity
| NO. | Item | General Parameter | Remark | ||||
| 1 | Model | FREY54173210-230AH | Single,54+173*210mm | ||||
| 2 | Casing material for single cell | Aluminum alloy | |||||
| 3 | Standard capacity(05CA) |
230AH | |||||
| 4 | Rated voltage | 32V | 25.6V | 16V | 12.8V | (Work voltage:3.20V) | |
| 5 | Max.Chargevoltage | 36. 5V | 29.2V | 18.2V | 14. 6V | (Single Ave.charge Voltage3.65v) |
|
| 6 | Cut-off Voltage | 27.5V | 22V | 13. 7V | 11V | (Single Ave.DischargeVoltage2.75v) | |
| 7 | Standard charge current | <115A | (0.5C) | ||||
| 8 | charging Time | About 2 h | |||||
| 9 | Continuous discharge current | 230A | (1C) | ||||
| 10 | Peak discharge current | 690A | 60seconds | ||||

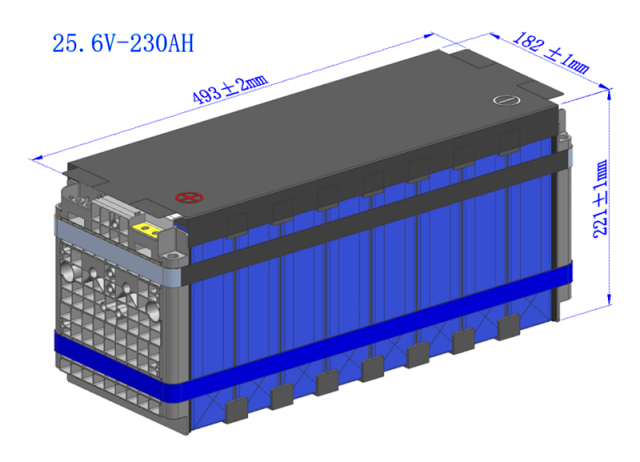

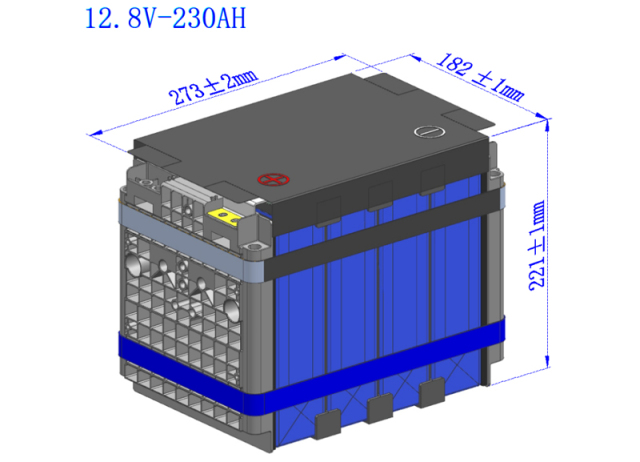

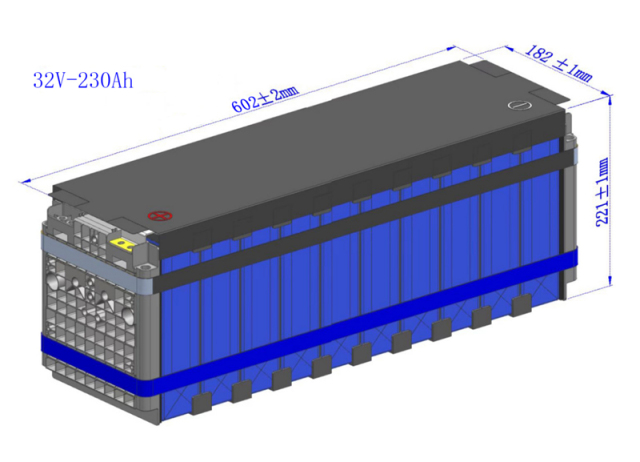

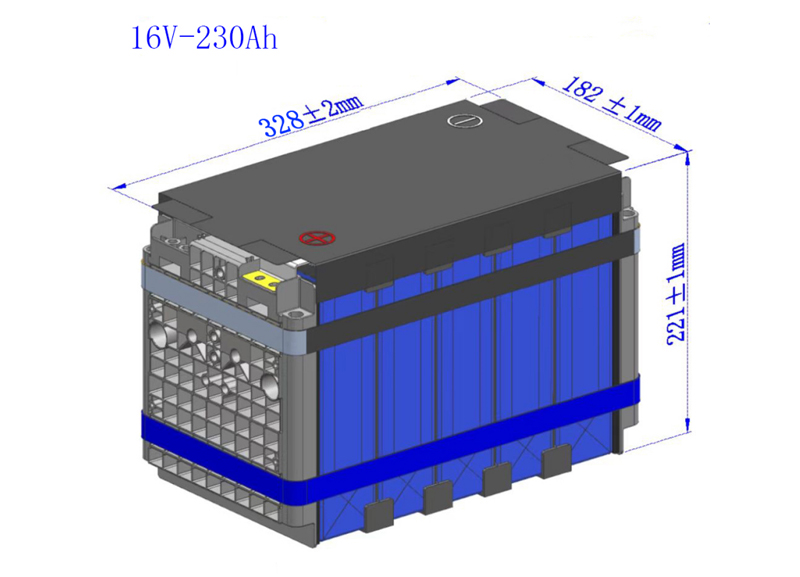

| 11 | Battery dimension | 602*182*221mm(L*W*H) | 493*182*221mm(L*W*H) | 328*182*221mm(L*W*H) | 273+182+221mm(L*W*H) | ||
| 12 | Total weight (Approx.) | About 43 kg | About 35 kg | About 22.5 kg | About 18.4 kg | ||
| 13 | Charge method(ce/ew) | Standard | 0℃~45℃ | ||||
| discharge | -20℃~-55℃ | ||||||
| storage | 20℃~45℃，25%-65℃ | Avoid direct sunlight:Relativehumn i di ty | |||||
| 14 | Terminal Type | M5*2 | |||||
| 15 | PIN Housing | MX34020PF1 | |||||
