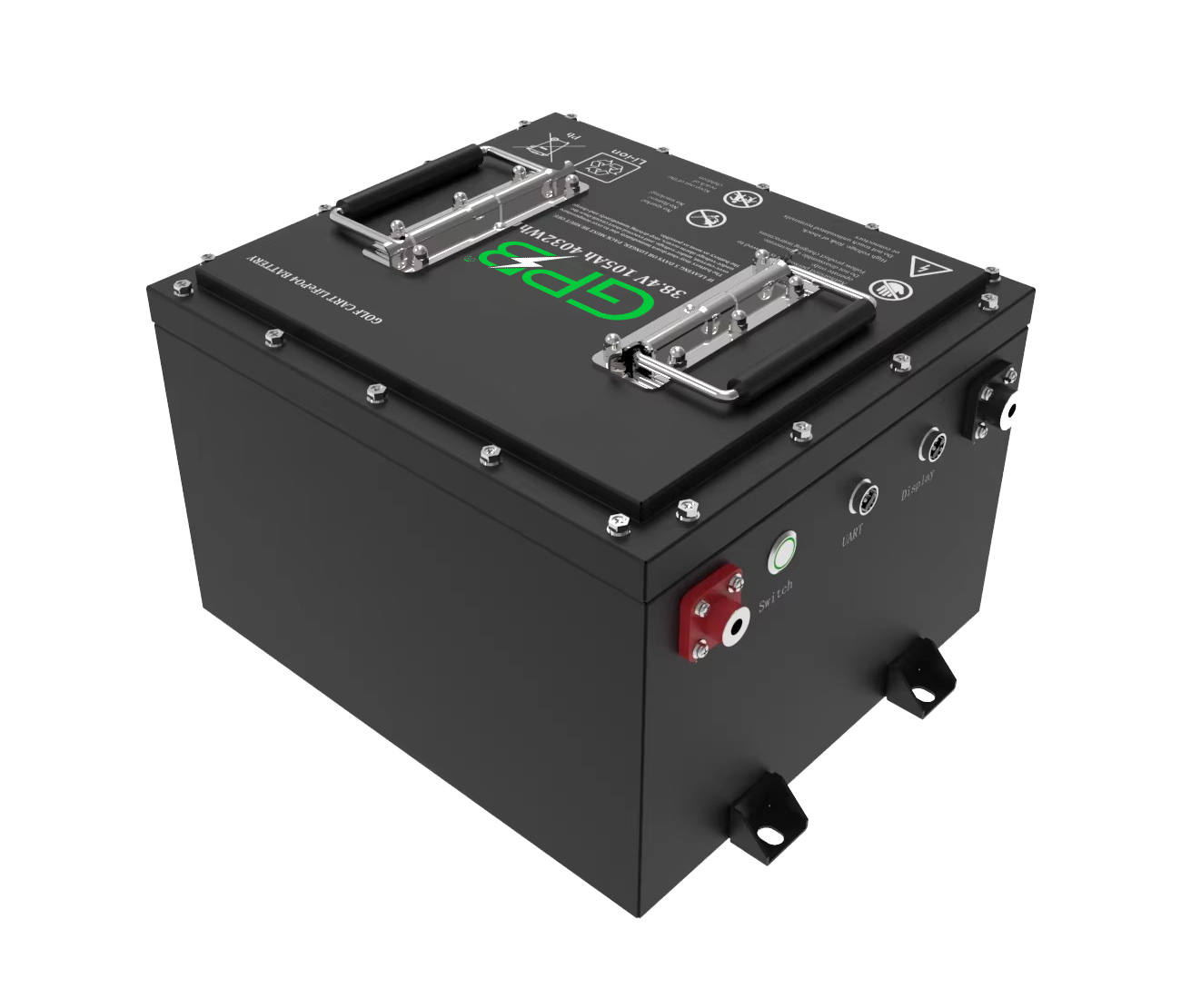

GPB Golf Cart LiFePO4 batteries designed for dropping in replacement for lead acid batteries,?smaller size but heavier power;?Longer run?time, quick charging time, eco-friendly free maintenance.
Characteristics
GPB Golf Cart LiFePO4 Batteries Series includes 36V, 48V, 72V
Assembly with Grade A Cells with 6000 cycles, 80%DOD, intelligent BMS
Customized accessories: Vent, CHAGE CAN, Monitor, GPRS, Bluetooth.
GPB Golf Cart LiFePO4 Batteries have a higher energy density compared to lead-acid batteries.This means they can store more energy in a smaller and lighter package, providing longer driving ranges and reducing the overall weight of the golf cart, with a variety of product models and sizes, it can perfectly replace lead-acid batteries.
★ Built-in Integrated Battery Management System (BMS);
★?Customized BMS, Bluetooth Monitoring Optional;
★ Could pass high current, big Discharge Current 150A/200A/250A/300A,
it is helpful for climbing hills;
★ GPS Positioning Function Optional;
★ RS45/RS282/CAN Communication Port?
★ 36V/48V/72V Available
Golf Cart LiFePO4 Battery FEATURES
●Grade A Cell
Adopt Grade A famous brand Prismatic LiFePO4 Cell, Each cells is with high quality that will last longer life, safer.
●Built-in?Integrated Battery Management System (BMS)
?Built-in intelligent BMS, could pass high current, the BMS protection from overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance
●Longer Runtime
GPB Golf cart lifepo4 batteries design life up to 10 years!?
With over 6000 recharge cycles,provides exceptional longevity, significantly outperforming traditional lead-acid batteries.
●Fast Charging
Quick and efficient charging, reducing downtime and enhancing availability.
●Lightweight Design
Being approximately 50% lighter than equivalent lead-acid batteries, this battery's installation and handling are significantly easier, thus?improving the overall user experience.
●Bluetooth Mobile APP Monitoring
Can be with Bluetooth module, detect the battery status on your mobile phone
●Easy Operation, Plug and Play
Our Golf Cart LiFePO4 Batteries is very easy to operate, portable handle, it is convenient to lift it up.
Product specifications
| Specification | Parameter | GP38105 | GP51072 | GP51105 | GP51160 | GP72072 | GP72100 |
| Nominal | Voltage | 38.4V | 51.2V | 51.2V | 51.2V | 73.6V | 73.6V |
| Capacity | 105Ah | 72Ah | 105Ah | 160Ah | 72Ah | 105Ah | |
| Physical? | Dimension | 340*259*280mm /385.6*336*245.6mm | 563*247*170mm | 472*312*243mm /384*311*258mm | 615*403*200mm | 558*247*346.9mm | 740*320*259mm |
| Weight | ~36KG/34KGS | ~30KG | 43.6KG /42.26KG | ~70KG | ~50KG | 64KG | |
| Electrical | Charge Voltage? | 43.8V | 58.4V | 58.4V | 58.4V | 83.95V | 83.95V |
| Discharge Voltage | 30V | 40V | 40V | 40V | 57.5V | 57.5V | |
| Constant charge Current | 300A(optional) | 100A | 150A/300A(optional) | 300A(optional) | 250A | 100A | |
| Constant discharge Current | 300A | 150A | 150A/300A(optional) | 300A | 250A | 150A | |
| Peak discharge current? | 600A | 300A | 300A/600A(optional) | 600A | 500A | 200A | |
| Others | Working Temperature | -20-65℃ | -20-65℃ | -20-65℃ | -20-65℃ | -20-65℃ | -20-65℃ |
| Storage Temperature | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ | |
| Cycle Life | >4000 Cycles | >4000 Cycles | >4000 Cycles | >4000 Cycles | >4000 Cycles | >4000 Cycles | |
| NOTE: All Above details shall be changed without prior notice, GPB reserves the right to explain & update the lastest information. | |||||||
