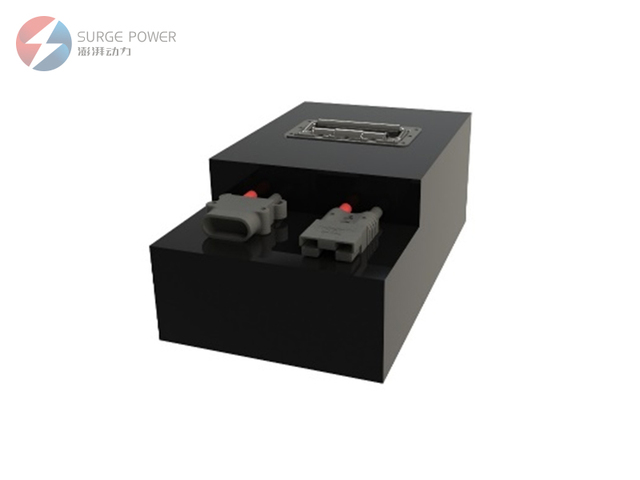

Aiming at the requirements of fast charging/discharging and shallow charging/discharging for starting batteries and fuel cells, the company has developed a high-power lithium ion forklift battery system which can ensure the battery products remain in good condition under long-term high-power working conditions.
The lithium ion forklift battery HP series is used for starting batteries, fuel cells, fast charging and discharging systems, frequency modulation, etc.
lithium ion forklift battery Type | LFP |
Nominal Voltage | 48 V |
Voltage Range | 42-54 V |
Nominal Capacity | 40 AH |
Nominal Energy | 1.92 kWh |
Available Energy | 1.73 kWh |
Charging Current | 200 A (continuous) |
Dischargeing Current | 300 A (continuous) |
Operating Temperature | 0-45 ℃ (charging) |
Operating Temperature | -20-55 ℃ (discharging) |
Operating Humidity | 0-95 % |
Weight | 22 kg |
Dimension | 400*380*250 |
Cycle Life | 3000 @1C |
Communication protocol | RS484/CAN |
*All parameters can be customized according to customer requirements (especially the dimensions, electrical properties)
