Model | 3000W | 5000W | 6000W | ||||
Battery rated voltage（vdc） | 25.6 | 51.2 | |||||
Inverter | Rated power（w） | 3000 | 5000 | 6000 | |||
Input voltage range（vac） | 85-138VAC/170-275VAC | ||||||
Input frequency（Hz） | 45-65 | ||||||
Output voltage（vac） | 110/220 | ||||||
Output frequency（Hz） | 50/60 | ||||||
Output wave | Pure Sine Wave | ||||||
Speficifation of built-in battery | 2.56KWH | 5KWH | 8KWH | ||||

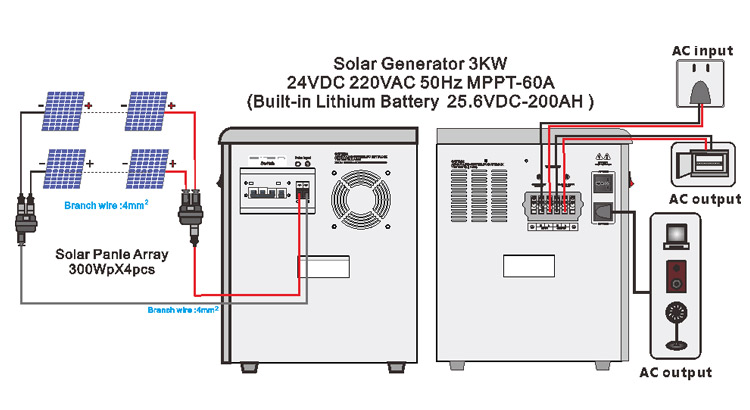

MPPT Solar input | MPPT Voltage Range | 60V~150VDC | |||||
PV Power | 1500W | 3000W | |||||
Rated charge current | 60A(Max) | ||||||
MPPT efficiency | ≥99% | ||||||
Floating charge voltage | 28.4VDC | 56.8VDC | |||||
DC output | Low voltage recovery voltage | 26.8 VDC | 53.6VDC | ||||
Low voltage protecton voltage | 22.4 VDC | 44.8VDC | |||||

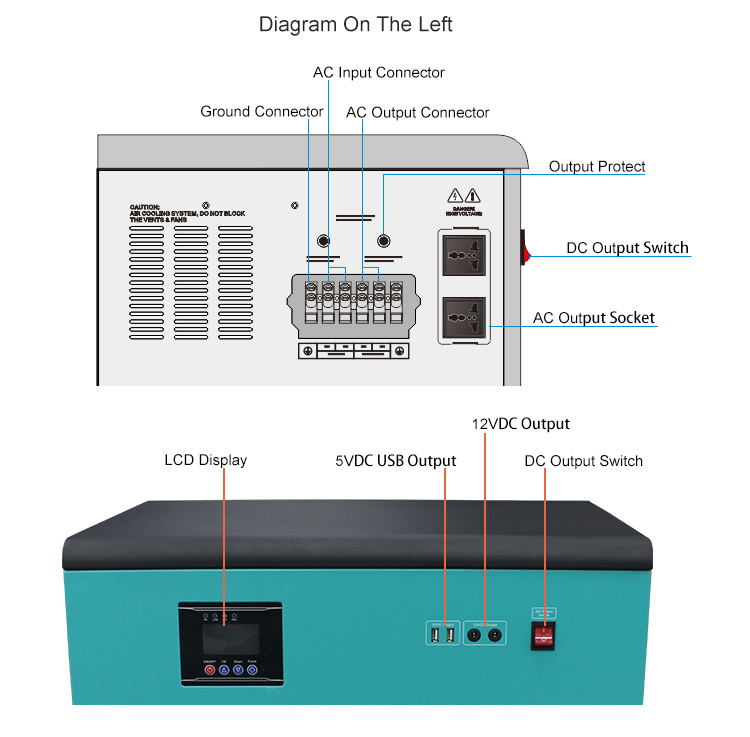

5VDC USB output | 2个/MAX 2A | ||||||
12VDC output ports | 2个/MAX 2A | ||||||

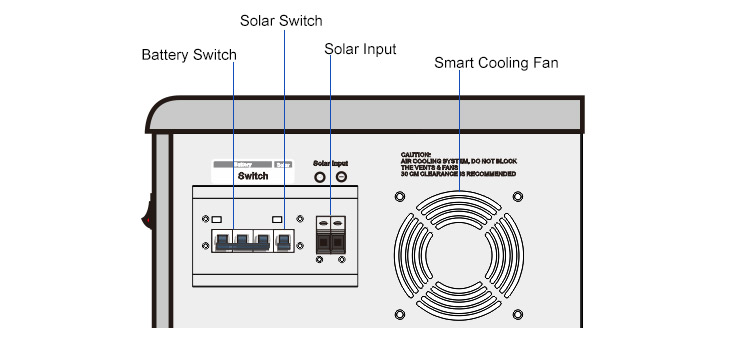

Heat dissipation/Cooling | Temperature control by intelligent exhaust fan | ||||||
Operating ambient temperature | -20 - +50℃ | ||||||
Storage ambient temperature | -25 - +55℃ | ||||||
Operating/Storage ambient | 0-90% No condensation | ||||||
External size：W*D*H（mm） | 620*420*580 | ||||||
Package size：W*D*H（mm） | 720*420*761 | ||||||
