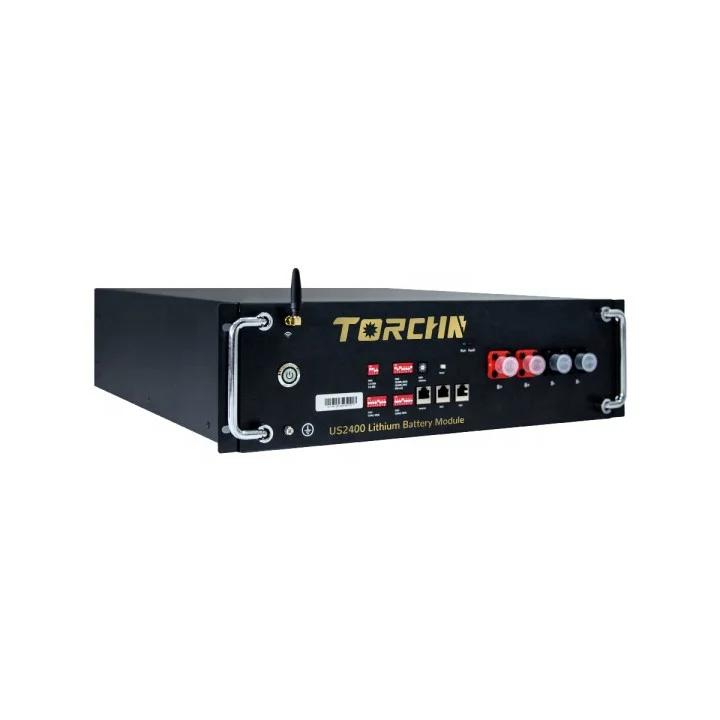

48V 100Ah Lithium Technical Data | ||
Total Energy* | 5.12kWh | |
Usable Energy(DC)* | 4.6kWh | |
Nominal Charge/Discharge Power | 1.2kW | |
Peak Power(Only discharge) | 7KW for 3 seconds | |
Constant Current(Only discharge) | 100A | |
Voltage | 48-56Vd.c | |
Nominal Voltage | 51.2Vd.c | |
Nominal Current | 60A | |
Max. Charge Voltage | 57.6V | |
Recommended DOD | 90% | |
Operating Condition | Indoor | |
Dimension(mm) | 442*500*134 | |
Weight | 51kg | |
Humidity | 20-60%(No condensed water) | |
Over Voltage Category | II | |
Cooling Type | Natural cooling | |
Case Material | Metal | |
Installation | Cabinet or Wall mountable | |
IP rating | IP 20 | |
Protective Class | I | |

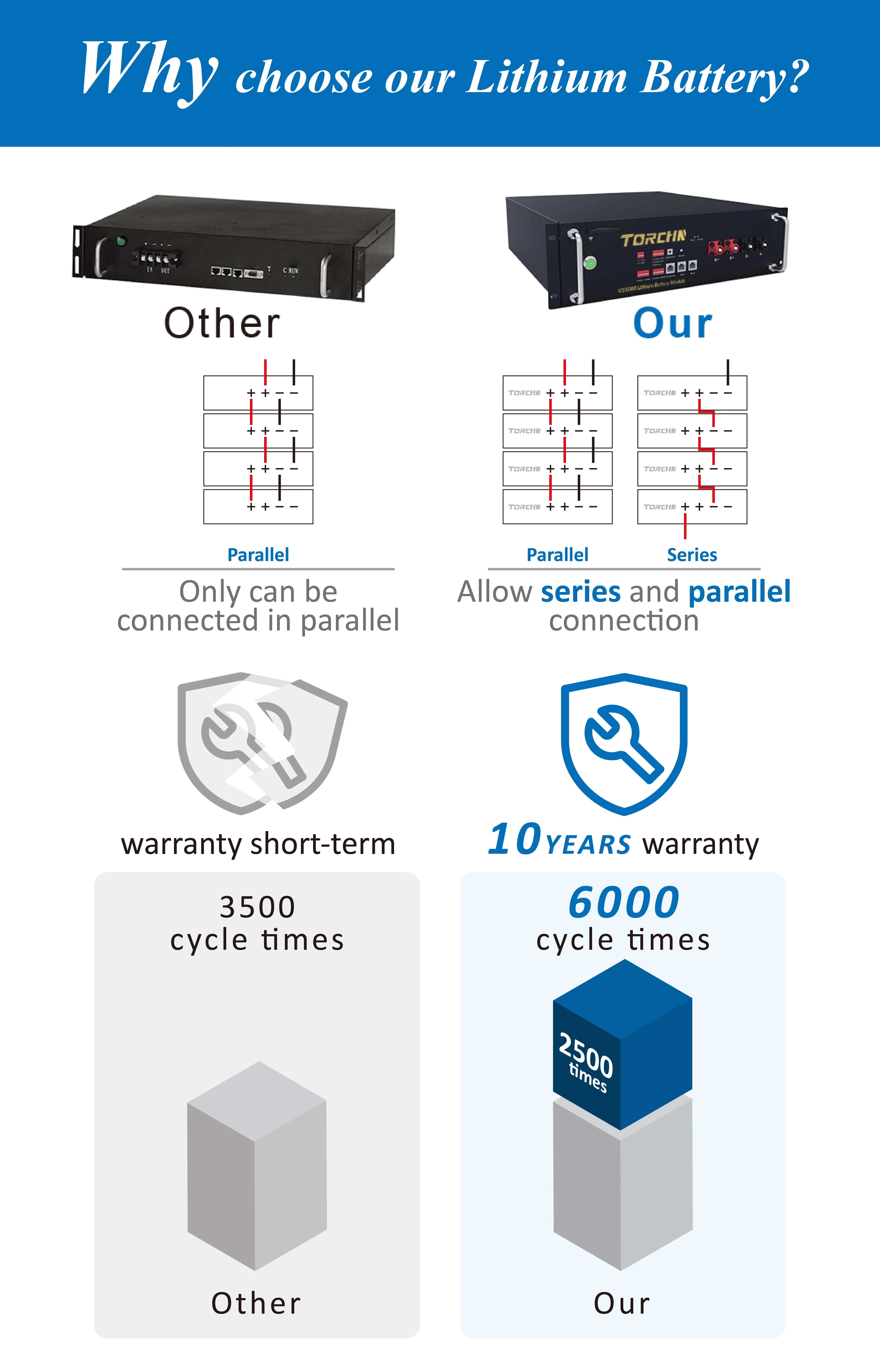

Max. Number of Parallel(Series connection) | 9 | |
Warranty | 10 years | |
Communication | CAN/ RS485 | |
Monitor | WIFI | |
Protection Mode | Triple hardware protection | |
Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature | |
Hazardous Material Classification | 9 | |
Transportation | UN 38.3 | |
