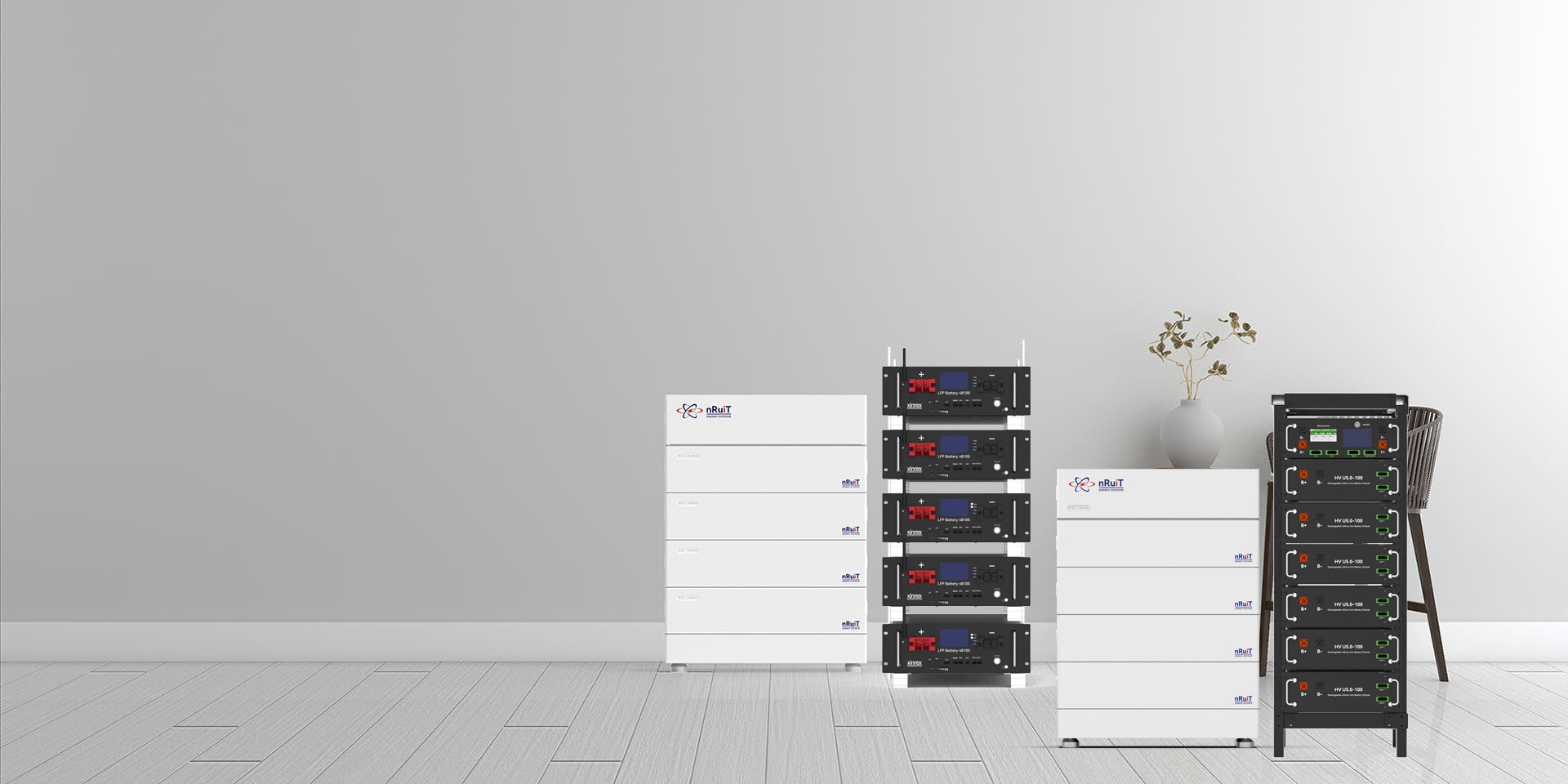

Low Voltage Stacked Household Energy Storage System 5.12kWh-30.6kWh Outdoor Use IP65 Modular Design Off-Grid Hybrid System

Low Voltage Stacked Household Energy Storage System 5.12kWh-30.6kWh Outdoor Use IP65 Modular Design Off-Grid Hybrid System

  • Low Voltage Stacked Household Energy Storage System 5.12kWh-30.6kWh Outdoor Use IP65 Modular Design Off-Grid Hybrid System
  • Low Voltage Stacked Household Energy Storage System 5.12kWh-30.6kWh Outdoor Use IP65 Modular Design Off-Grid Hybrid System
Summary
The Low Voltage Stacked Household Energy Storage System (5.12kWh-30.6kWh) is a high-performance, modular energy solution designed for residential off-grid and hybrid applications. Featuring LiFePO4 battery cells, this system ensures long cycle life, superior safety, and stable performance. With an IP65 rating, it's suitable for outdoor installation, offering reliable energy storage in diverse environments. The system supports wireless communication, easy installation, and space-saving stacking design. It is compatible with major inverter brands such as GoodWe, Deye, Growatt, and Victron, ensuring seamless integration into various energy setups. Ideal for residential energy storage, load shifting, backup power, and renewable energy integration, this modular system allows flexible capacity expansion from 5.12kWh to 30.6kWh, meeting varying household energy demands efficiently.More
Specifications
System Energy Range:
5.12kWh
10.2kWh
15.3kWh
20.4kWh
25.5kWh
30.6kWh
Capacity:
100Ah
200Ah
300Ah
400Ah
500Ah
600Ah
  • Low Voltage Stacked Household Energy Storage System 5.12kWh-30.6kWh Outdoor Use IP65 Modular Design Off-Grid Hybrid System
ModelLV M05LV M10LV M15>LV M20LV M25LV M30
Number of modules123456
Nominal capacity100Ah200Ah300Ah400Ah500Ah600Ah
Nominal battery energy>5.12kWh10.2kWh15.3kWh20.4kWh25.5kWh30.6kWh
Maximum continuous discharge power5kW10kW10kW10kW10kW10kW
Maximum continuous charge power5kW10kW10kW10kW10kW10kW
Dimension[W*D*H](mm)700*370*441700*370*609700*370*777700*370*945700*370*1113700*370*1281
Weight73.7kg123.2kg172.7kg222.2kg271.7kg321.2kg
Operating temperature0℃~50℃(Charge) -20℃~55℃ (Discharge)
Provide warranty documentsYes
IP protection levelIP65
ColourWhite
WarnOver charge / Over discharge / Over current / Overheating / Short circuit
AdvantageCan be used for off grid and hybrid settings, compact design, modular expansion
Battery module typeLow voltage
Connection modeParalleling
AuthenticationUN CE ,IEC
Compatible inverterGoodWe/Deye/Megarevo/Growatt/Lux power/TBB/Victron/Srne/Must/Senergy/Voltronic /Aotai/Sofar/Sma, etc.
Communication protocolRS485/CAN
