low-voltagewithdrawablecabinet

SICHUAN KEWEI ELECTRICIAN CO..LTD

SiChuan China

Summary

No.KGCSAC

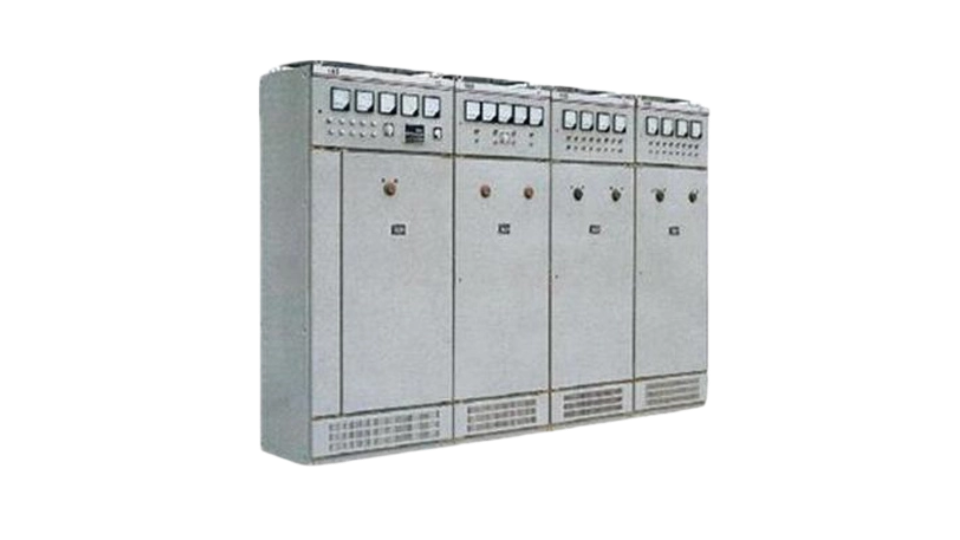

The KGCS type AC low-voltage withdrawable switchgear cabinet is a low-voltage power distribution equipment with AC 50Hz, rated working voltage of 660V and below, and maximum rated working current of 4000A. It is suitable for power distribution systems in power plants, substations, industrial and mining enterprises, residential areas and construction projects. It is used for power conversion, distribution and control of power equipment in the power distribution systems.

INQUIRY

Description Download

The cabinet frame adopts an assembled and combined structure. It is formed by using KB profiles with a modulus (E) of 25mm and specially designed structural components, which are fixed and connected by fasteners. According to the plan, corresponding doors, sealing plates, partitions, installation brackets, busbars, pull-out components and electrical components need to be added to complete the assembly of the complete switch cabinet. The cabinet frame adopts an assembled and combined structure, formed by using KB profiles with a modulus (E) of 25mm and specially designed structural components, which are fixed and connected by fasteners. According to the plan, corresponding doors, sealing plates, partitions, installation brackets, busbars, pull-out components and electrical components need to be added to complete the assembly of the complete switch cabinet.
