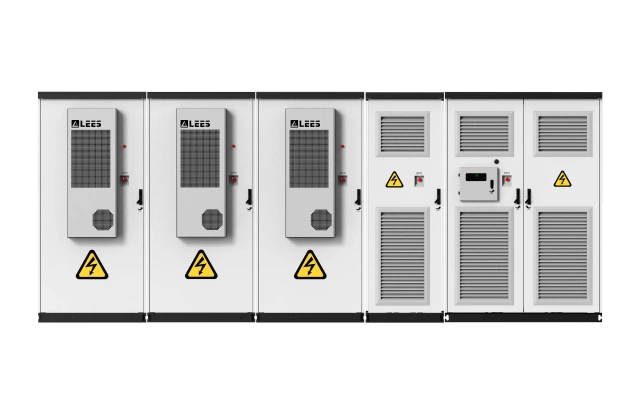

LEES CI-BOX series is Lithium iron phosphate battery system which designed for energy storage system. This battery system consists of PCS, outdoor cabinet, battery racks and BMS, every cabinet integrates with intelligent HVAC inside. And this system has big advantages on safety, cycle life, energy density, fast charging, temperature range and environmental protection.
Model | LS-CI-BOX-250K645S |
Battery Parameters | |
Cell | LFP280Ah |
Module | 51.2V280Ah |
Rated Voltage | 768V |
Battery Capacity | 280Ah |
Rated Energy | 645.12kWh |
Usable Energy | 580.60kWh(90%DOD) |
Voltage Range(V) | 672V~840V |
Max. Charging Power(kW) | 250 |
AC On-grid Parameter | |
Grid Type | 3W+N+PE |
Rated Charge/Discharge Power | 250kW※ |
Rated Grid Voltage | AC320V~460V |
Applicable Grid Frequency | 45~55Hz/55~65Hz |
Rated Current | 361A |
THDi | <3% |
Power Factor | 1(Leading)~1(Lagging) |
AC Off-grid Parameter | |
Rated Charge/Discharge Power | 250kW |
Max Output Power | 275KVA |
Rated Grid Voltage | AC400V |
Rated Frequency | 50/60Hz |
THDu | ≤1% linear; or≤5% nonlinear |
Rated Current | 361A |
Photovoltaic Input | |
Max Input Power | 300kW |
MPPT Voltage Range | 250-850V |
General Parameter | |
Dimension (W*D*H) | 5460 x 1100 x 2340 mm |
Max. Weight | 9660kg |
IP Degree | IP54 |
Operating Temperature Range | -20~50℃ |
Relative Humidity | 0~95%(No condensation) |
Attitude | <2000m |
Cooling Method | Heat Ventilation Air Conditioner |
Noise | ≤75dB |
System Efficiency | ≥85% |
Firefighting System | Integrated |
Communication | Ethernet, Modbus TCP/IP |
