Conductor Type | Cu | AI |
Rated Current | 400-6300A | 250-5000A |
Frequency | 50Hz/60Hz | |
Rated Voltage | 1000V | |
IP | IP54/IP65/IP66 | |

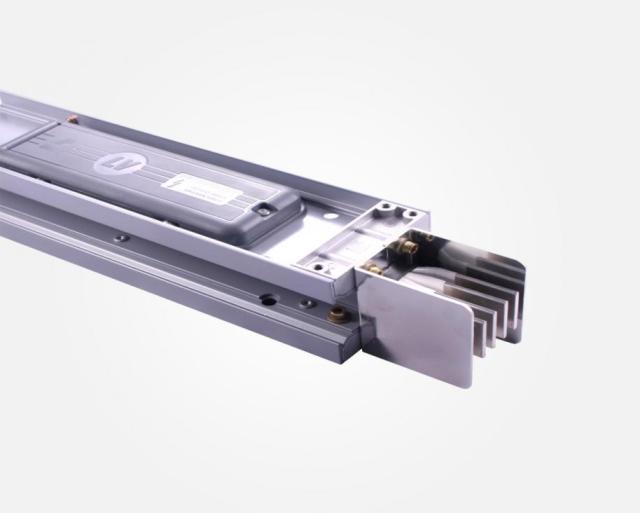

Product Series | LV Series Compact Busway | |
Design standard | IEC61439-1；IEC61439-6；GB/T7251.1；GB/T7251.6；IEC60331；IEC 60529 | |
Product Type | Low Voltage Busway | |
System | 3P3W/3P4W/3P5W | |
Commercial buildings, high-rise, industrial plants,data centers, rail transit, etc.
| Tap—Off Box | The plug-in box can provide 16A ~ 1600A tapping current with 7 different sizes. - Designed with support positioning device to ensure accurate positioning and support the weight of the plug-in box to protect the pins from external forces. - Designed with the double interlocking mechanism, and the power-on state cannot be inserted and removed, thus ensuring the personal safety of the operator. - Any type of circuit breaker can be equipped in the box,the breakers type and brand are optional for customer. |
Reliable high quality conductors，electrolytic copper，copper bar purity above 99.90%
More reliable IP with two pieces of housing design.
HIgh corrosion resistance casing.
Intelligent design with smart devive.
Smart joint design-temperature intelligent system.
Unique error-proof design.
