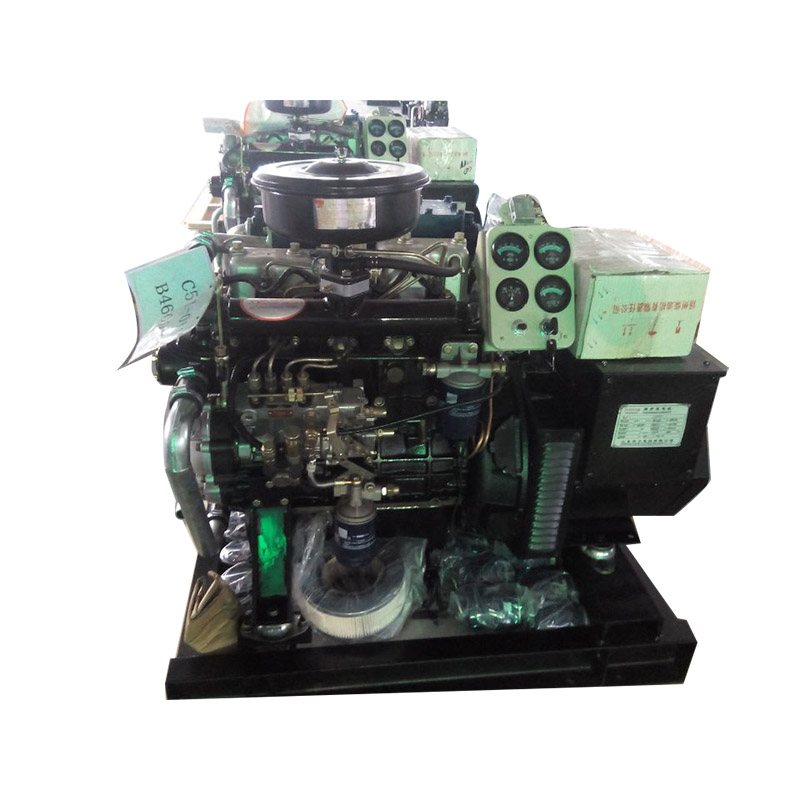

| Product name: Diesel generator set | Model: WCFJ15 | Spec: 17KVA | ||||||
| Pro.ID: P02004 | Voltage： 3P 380V 50Hz | Type： Open marine generator set | ||||||
Technical data table:
| NO. | Technical data | Parameter data | Remarks | |||||
| 1 | Max Power | 13.2KW | ||||||
| 2 | Rated Power | 12KW | ||||||
| 3 | Rated speed | 1500rpm | ||||||
| 4 | Governor | Mechanical | ||||||
| 5 | Starting method | Electrical | ||||||
| 6 | Alternator Power Factor | 0.8 | ||||||
| 7 | Protection Class | IP23 | ||||||
| 8 | Insulation Class | F | ||||||
| 9 | Rated Current(A) | 24.7A | ||||||
Product configuration table:
| NO. | Part name | Brand | Model | Remarks | ||||
| 1 | Engine Model | Weichai | WP2.3C25E200 | |||||
| 2 | Alternator | Siemens | ||||||
| 3 | Controller | CSCPOWER | ||||||
| 4 | Starting method | CSCPOWER | Electrical start | |||||
