- Business’s & Factories
- Shopping & Distribution Centers
- Offices Buildings
- Schools and Libraries
- Island communities
- EV Stations

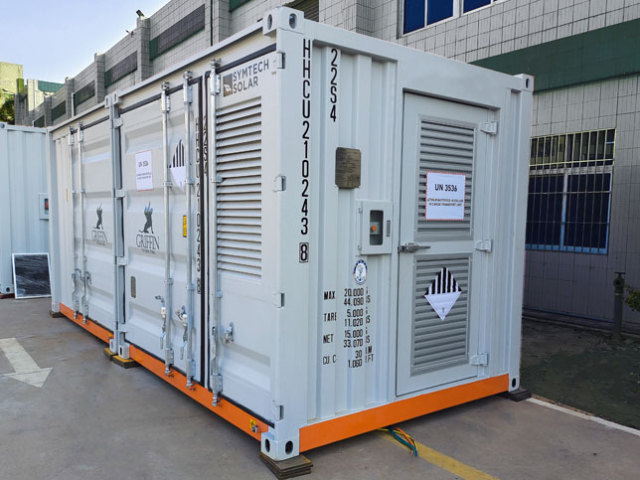

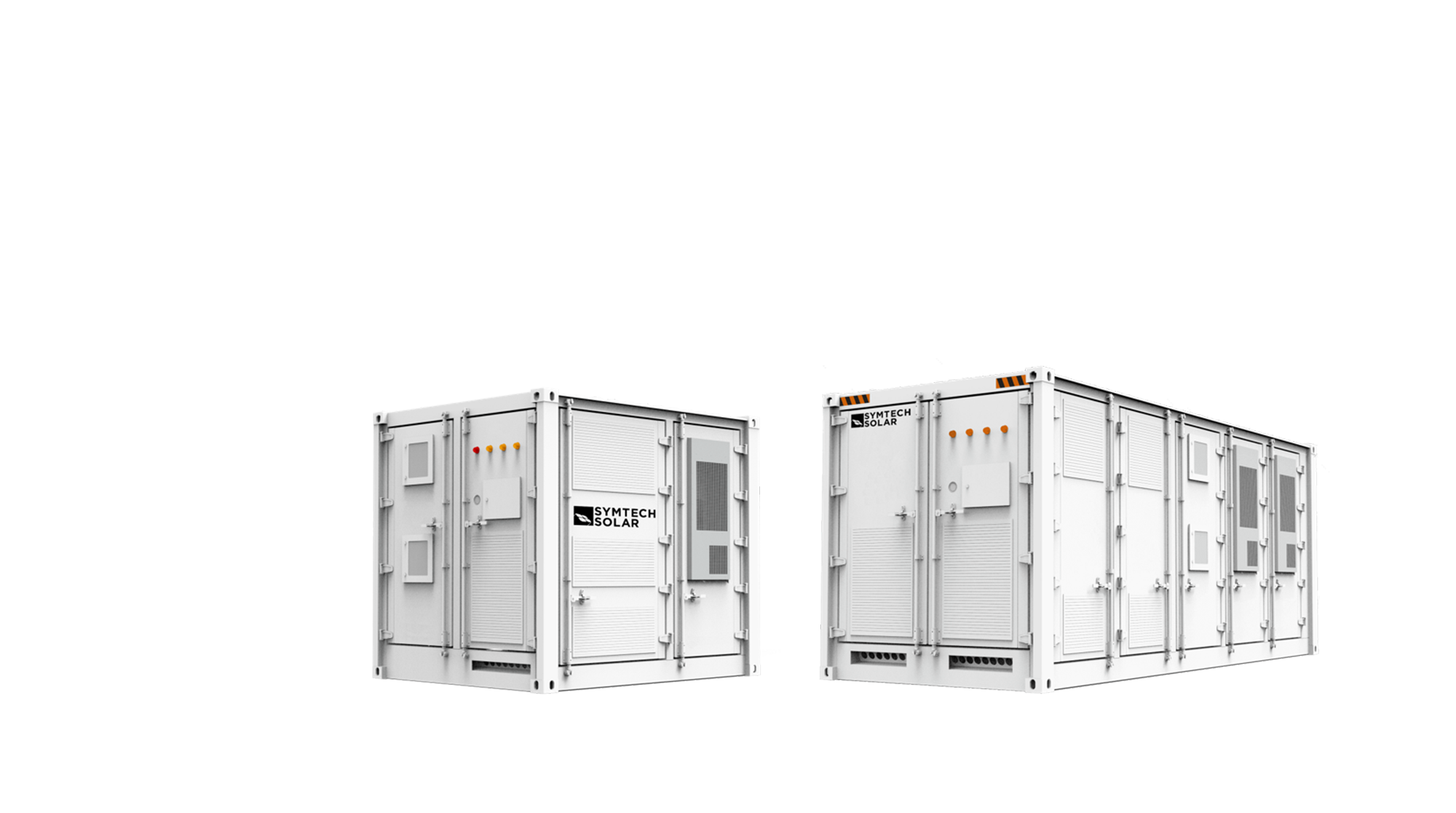

MEGATRON 300 & 500kW Battery Energy Storage Systems are AC Coupled BESS systems offered in both the 10 and 20′ containers. Designed with either on-grid (grid following) or hybrid (grid forming) PCS units, each BESS unit is capable of AC coupling to new or existing PV systems making them an ideal solution for commercial/industrial customers. The 10′ and 20′ systems are designed and shipped with the batteries pre installed utilizing UN 3536 shipping standards. Each BESS container has either a 300kW or 500kW PCS system offering a complete, install ready energy storage system. All system systems are offered with either 400VAC or 480VAC 3 phase interconnect voltages.
Each commercial and industrial battery energy storage system includes Lithium Iron Phosphate (LiFePO4) battery packs connected in high voltage DC configurations. Battery Systems come with 5000 cycle warranty and up to 80% DOD (Depth of Discharge) @ 0.5 at 25℃.
These AC coupled systems offer commercial customers turn key energy storage solutions that are designed for 5 to 10+ years of hassle free energy storage and usage.
Offered with a 24 x 7 cloud-based monitoring and operation platform supports Mysql database and multiple mobile and PC devices. The battery pack, string and ESS are certified by TUV to align with IEC/UL standards of UL 9540A, UL 1973, IEC 62619 etc.

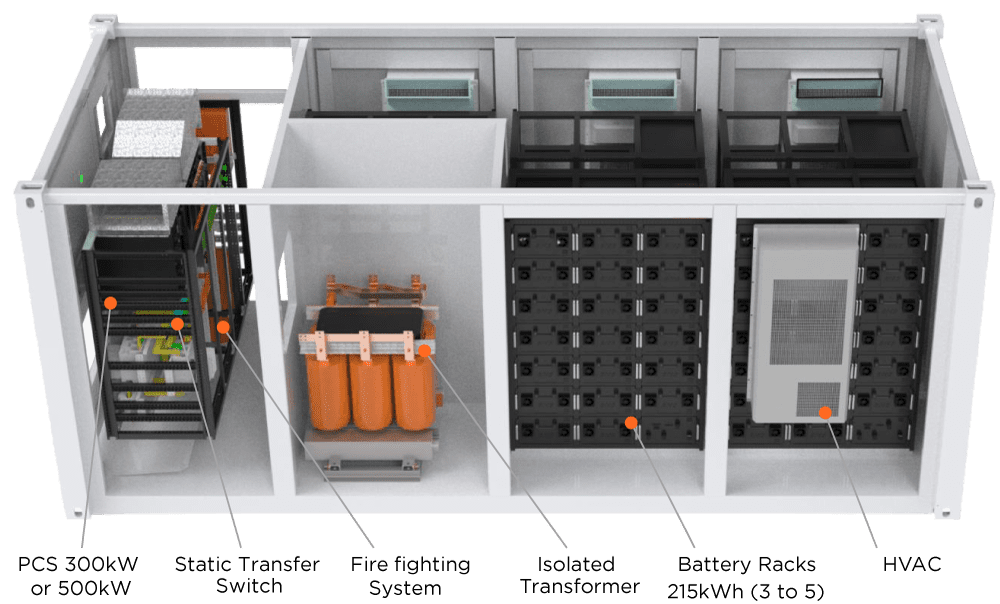

Each 500kW BESS solution is pre-engineered and manufactured to be ready to install.
Each BESS includes:
Hybrid BESS units can auto switch from grid following to grid forming utilizing both the PCS, STS, and EMS systems.
Each BESS includes:
