• Supports multi-source parallel operation, directly networked with oil engines.
• Support three-phase unbalanced load operation, seamless off grid switching .
• BMS protection.
• PV charge with MPPT tracker.
• Full compatibility with iPhone,iPad,Mac, Android.
• LiPePO4 battery with 2000-2500+ cycles life.

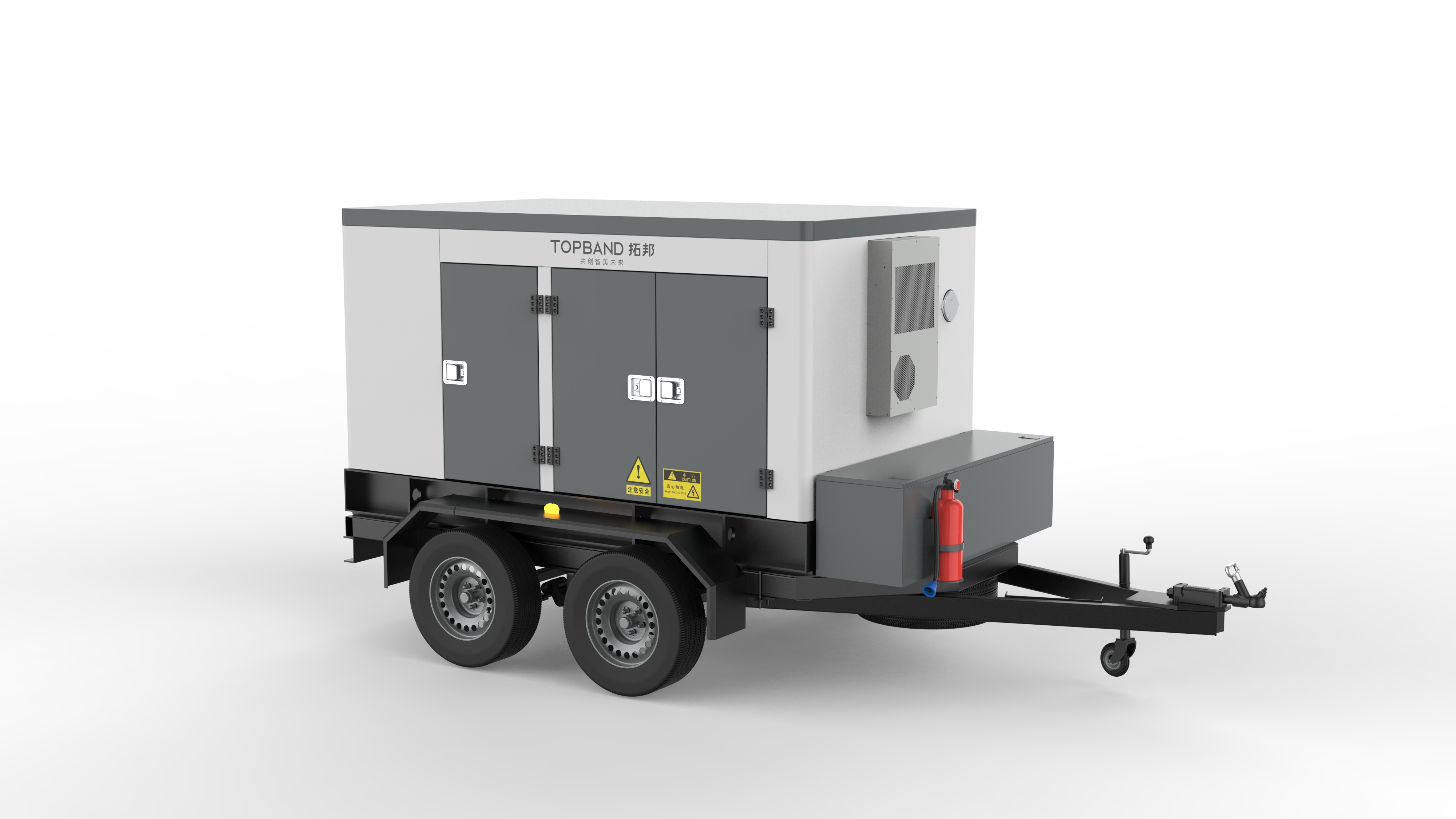

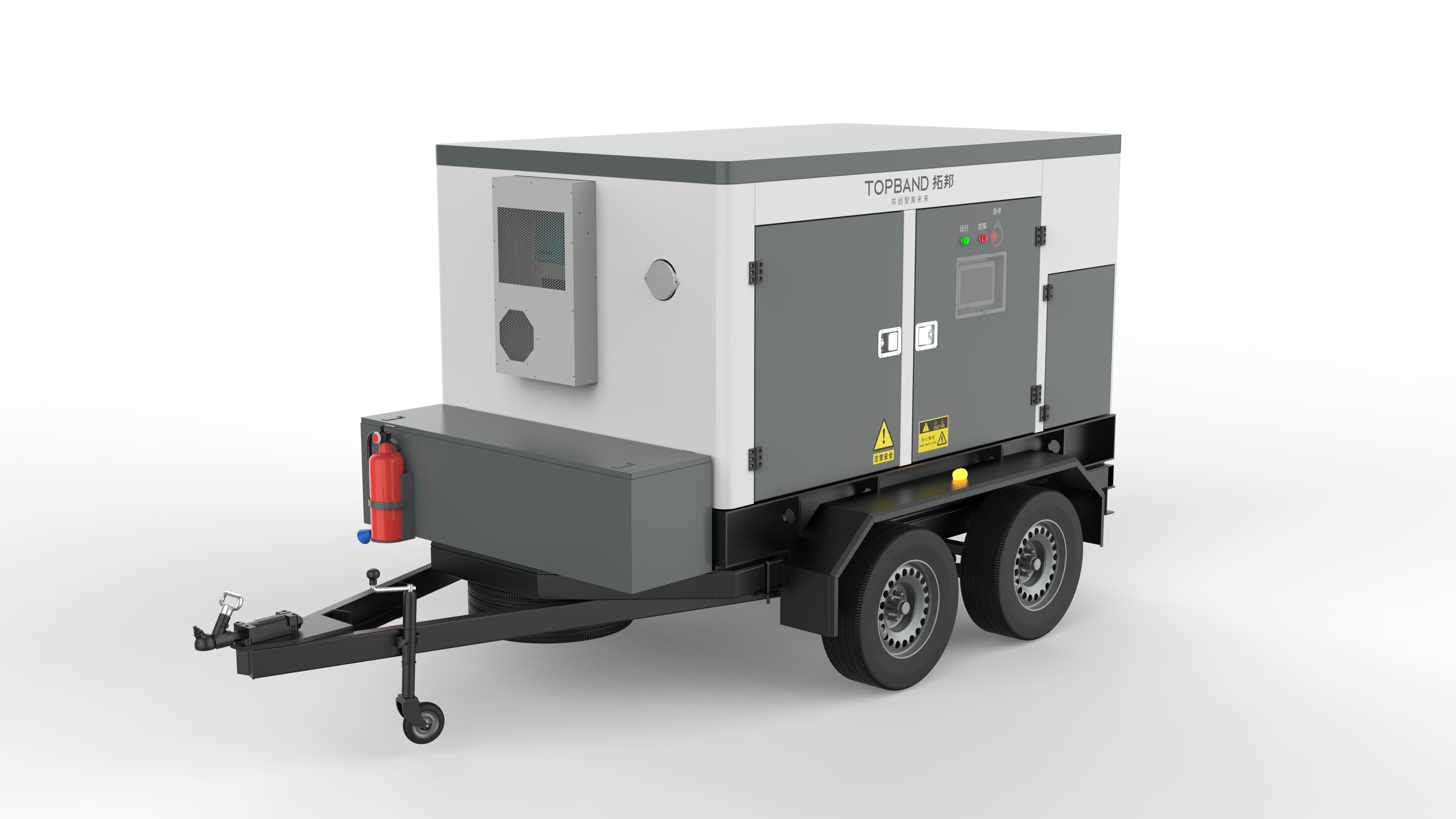

Mobile energy storage vehicles (trailer type) have become an important component of modern energy solutions due to their high mobility, large capacity, intelligent management, and environmental protection and energy conservation advantages. They are widely used in emergency, outdoor, and temporary power scenarios.
Application
Emergency power supply and power protectionUninterrupted operation of the power gridEmergency charging for electric vehiclesOutdoor and temporary construction electricityEmergency rescue and disaster reliefDistributed energy and microgrid
High mobility
Trailer design: It can be easily towed by vehicles, adapts to various terrains, and is easy to deploy quickly. Flexible mobility: Suitable for remote areas, disaster sites, and other scenarios that cannot be covered by fixed power grids.
Multi output interface
Equipped with an intelligent monitoring system that supports local data collection, remote operation and maintenance, and OTA upgrades.
Support big data operation and maintenance, power grid dispatch and control, and remote monitoring.
Intelligent management
BMS system: Built in battery management system, real-time monitoring of battery status to ensure safe operation. Remote monitoring: Supports remote control and status monitoring to improve management efficiency.
Safe and reliable
Multiple protection: Equipped with overcharge, overdischarge, short circuit and other protection functions to ensure safe use. Durable shell: Designed with shock resistance, waterproof, and dustproof features, suitable for harsh environments.
Parameter
| Model | C60G69115-T-69Kwh | C60G69115-T-161Kwh | C60G69115-T-200Kwh |
| DC side | |||
| Nominal capacity | 69.12Kwh | 161Kwh | 200Kwh |
|
Number of cycles |
4000 |
||
|
Battery voltage range |
360-525V |
||
|
Maximum input current |
60A |
315A |
388A |
|
Output side |
|||
|
Rated output power |
30Kw |
80Kw |
100Kw |
|
Maximum output power |
38Kw |
90Kw |
110Kw |
|
Type of output |
Three phase four wire |
||
|
Rated voltage |
220V/380V |
||
|
Rated output current |
45A |
143A |
178A |
|
Maximum output current |
57A |
160A |
196A |
|
Isolation method |
Optional selection |
||
|
Grid connected operation |
|||
|
Allowable range of grid volta |
340-440V |
||
|
Grid frequency |
45-55Hz |
||
|
THDI |
≤3％ |
||
|
Power factor |
-1~+1 |
||
|
Off grid operation |
|||
|
Rated voltage |
400VAC |
||
|
Voltage range |
340-440V |
||
|
Rated output frequency |
50Hz |
||
|
Capable of carrying unbalanced loads |
100% | ||
|
THDU |
≤3％ |
||
|
Overload capacity |
120% 1 minute | ||
|
Other parameters |
|||
|
Design lifespan |
10 years |
||
|
Cooling |
Air cooling |
||
|
Relative humidity |
5-95% |
||
|
Protection level |
|||
|
Off grid automatic switching function |
10ms | ||
| Off grid switching time | 10ms | ||
| Communication interface |
RS485/CAN/ETHernet |
||
| Cloud platform terminal | Alibaba Cloud | ||
| Vehicle parameters | |||
| Vehicle size | 5100x2300x2100mm | 6000x2300x2100mm | 7000x2300x2100mm |
| Vehicle weight | 2.5T | 3.5T | 4.5T |
|
Top speed |
80Km/h |
||
| Hydraulic support system |
Yes |
||
| Sound insulation layer | Yes | ||
| Cable and cable winding machine |
Optional selection |
||
