Modular design for convenient operation and flexible expansion

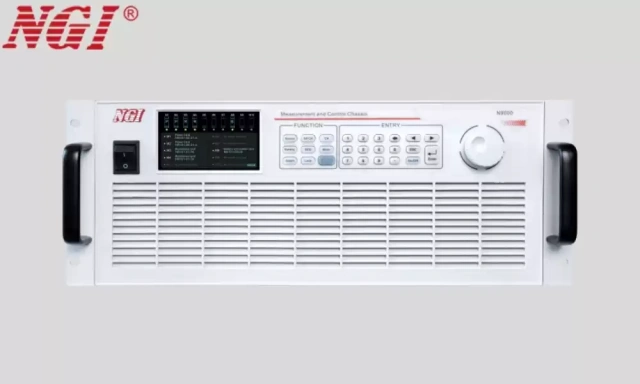

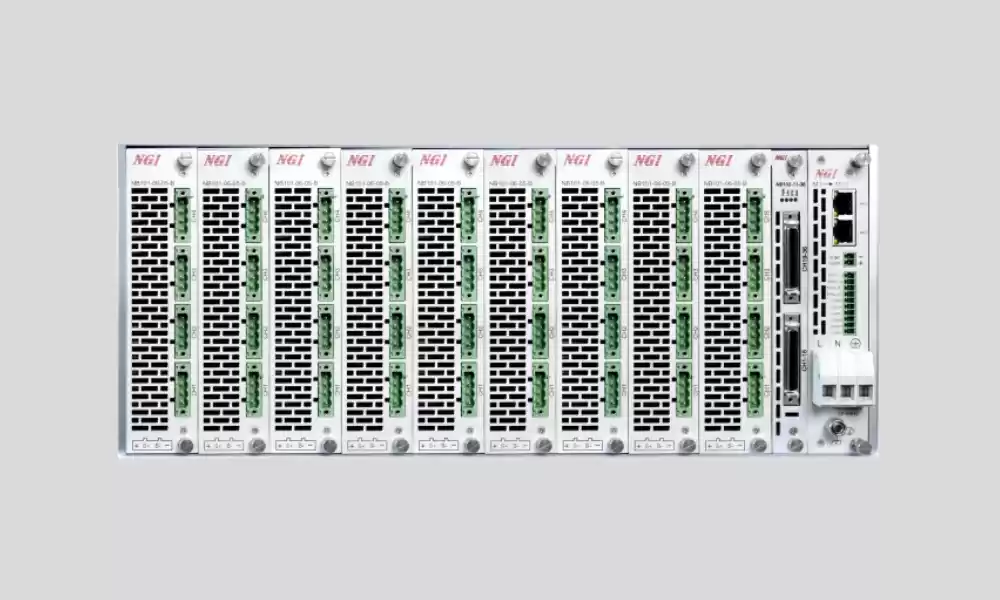

The N9000 series is a multi-channel modular measurement and control platform. The standard chassis can integrate 36 channels of single cell simulation, 36 channels of battery failure simulation and 36 channels of temperature simulation, which effectively saves users' space. Single module with 4 channels for battery simulation, single module with 12/24/36 channels optional for temperature simulation. With multiple models, users can choose products according to the actual needs, which is convenient for subsequent expansion.
High speed response, high speed synchronization, high throughput data
As a high real-time, high-synchronous measurement and control platform, the N9000 series supports Gigabit LAN and CANFD communication, hardware synchronous triggering and high-speed synchronous clocks, with command response speed of ≤1ms and multi-channel synchronization of ≤200μs, which is particularly suitable for high-speed simulation test such as BMS HIL.
High precision, matching BMS and AFE chip trends
AFE chip is the core component of BMS, with the management getting more and more refined, the voltage acquisition accuracy of AFE chip and BMS is getting higher and higher. NGI has launched 0.1mV ultra-high precision battery simulator since 2016, which has been widely recognized by the industry and become the first choice for AFE chip testing. The modular battery simulator launched under the N9000 measurement and control platform supports 0.1mV and 0.5mV voltage accuracy, which can meet the industry's high-precision testing needs.
Product dimension
