Curie Temperature | Crystallization Temperature | Saturation Magnetostriction | Density | Resistivity | Operating Temperature Range |
570℃ | 520℃ | ＜2×10-6 | 7.2g/cm3 | 130μΩ·cm | -50℃~180℃ |
Initial Permeability μi | Coercivity Hc | Core Loss P （100kHz，0.1T） | Saturation Magnetic Induction Strength Bs | Remanence Br | Operating Temperature Range |
＞8×104 | ＜0.8A/m | ＜20W/kg | 1.25T | 0.5~0.8T | -50℃~180℃ |
| Strip Thickness Specifications | |
| YNB20 | 19±1μm |
| YNB18 | 17±1μm |
| YNB16 | 15±1μm |
| YNB14 | 13±1μm |
| Strip Width Specifications | |
| YNB092YD | 92±0.5mm |
| YNB102YD | 102±0.5mm |
| YNB122YD | 122±0.5mm |

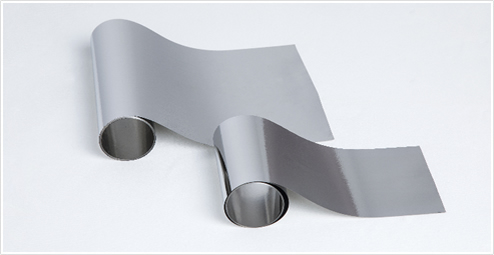

 | Nanocrystalline core is made of nanocrystalline ribbon through winding, annealing, impregnation and cutting. Common mode choke, current transformers and other products made from nanocrystalline cores are mainly used in household appliances, consumer electronics, photovoltaic inverters, new energy vehicles, smart power grids and other fields. |
