Wholesale China Off Grid Mppt Solar Inverter Manufacturers Pricelist - Inverter–MPS series – Bright New Energy Detail:
1. Pure sin wave solar inverter
2. Output power factor 1.0
3. Wi-Fi & GPS available for IOS and android
4. Inverter running without battery
5. Built-in 100A MPPT solar charger
6. High PV input voltage range(120-500VDC)
7. Built-in anti-dusk kit for harsh environment
8. Smart battery charge design to optimize battery life
9. Intelligent functionality enables utility and solar input prioritization.
10. Wide utility input range(90V-280V)for unreliable grid even.
11. Field serviceable with replacement boards and spare parts.
12. System configures quickly into compact, wall-mounted system.
| Model No. | MPS-V-PLUS-3500W | MPS-V-PLUS-5500W |
| Rated power | 3500VA /3500W | 5500VA /5500W |
| Input | voltage | 230VAC |
| selectable voltage range | 170-280VAC (For Personal Computers)
90-280Vac(For Home Appliances) |
| Frequency range | 50Hz/60Hz(Auto Sensing) |
| Output | AC voltage regulation (Batt. mode) | 230VAC ±5% |
| Surge power | 7000VA | 11000VA |
| Efficiency (peak)PV to INV. | 97% |
| Efficiency (peak)Battery to INV. | 94% |
| transfer time | 10 ms(For Personal Computers);
20ms(For Home Appliances) |
| waveform | Pure sine wave |
| Battery&AC charger | battery voltage | 24VDC | 48VDC |
| floating charge voltage | 27VDC | 54VDC |
| overcharge protection | 33VDC | 63VDC |
| maximum charge current | 80A | 80A |
| Solar charger | MAX PV array power | 5000W | 6000W |
| MPPT range@ operating voltage | 120~450VDC |
| maximum PV array open circuit voltage | 500VDC |
| maximum charging current | 100A |
| maximum efficiency | 98% |
| Physical | Dimension, D*W*H(mm) | 100x300x400 |
| Net weight (kgs) | 11 | 12 |
| Communication interface | USB/RS232 |

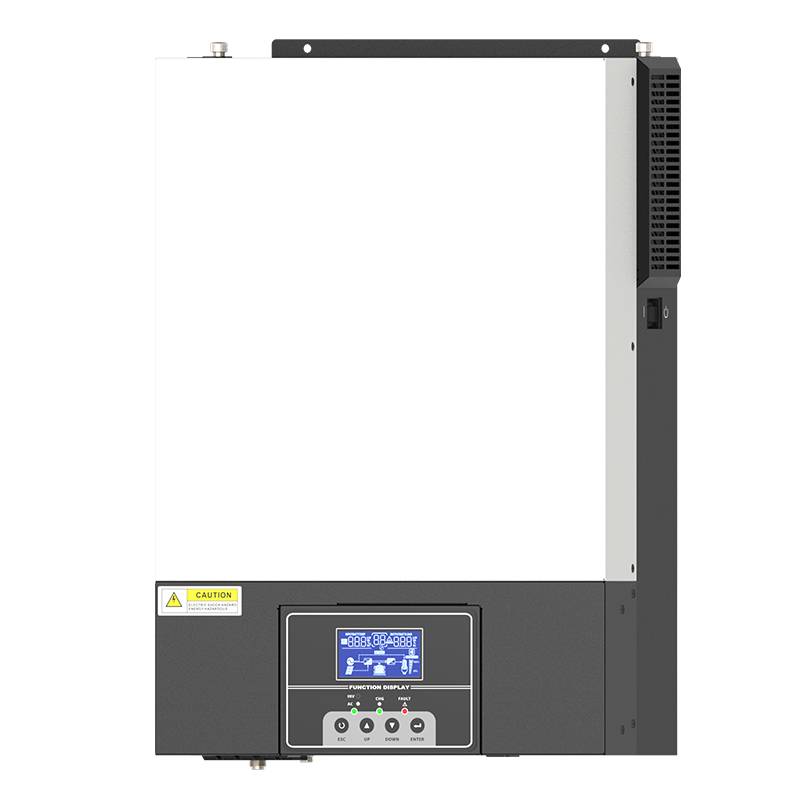

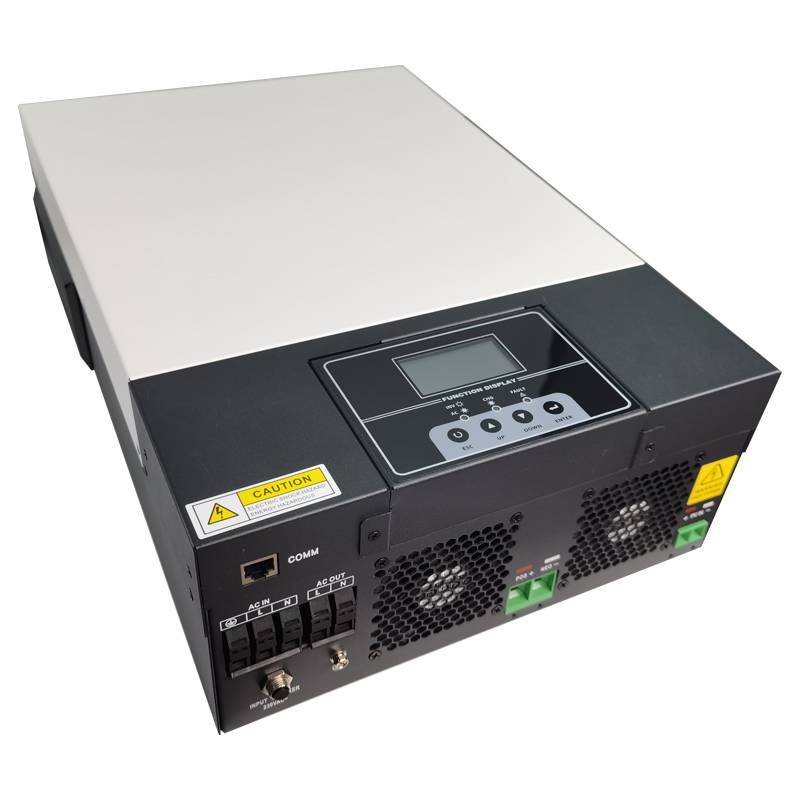

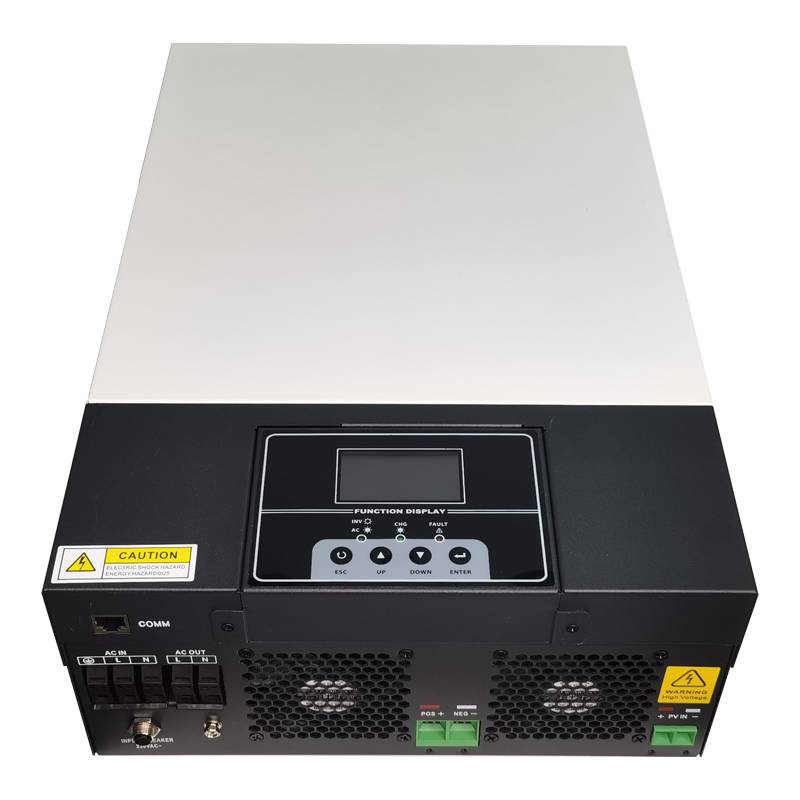

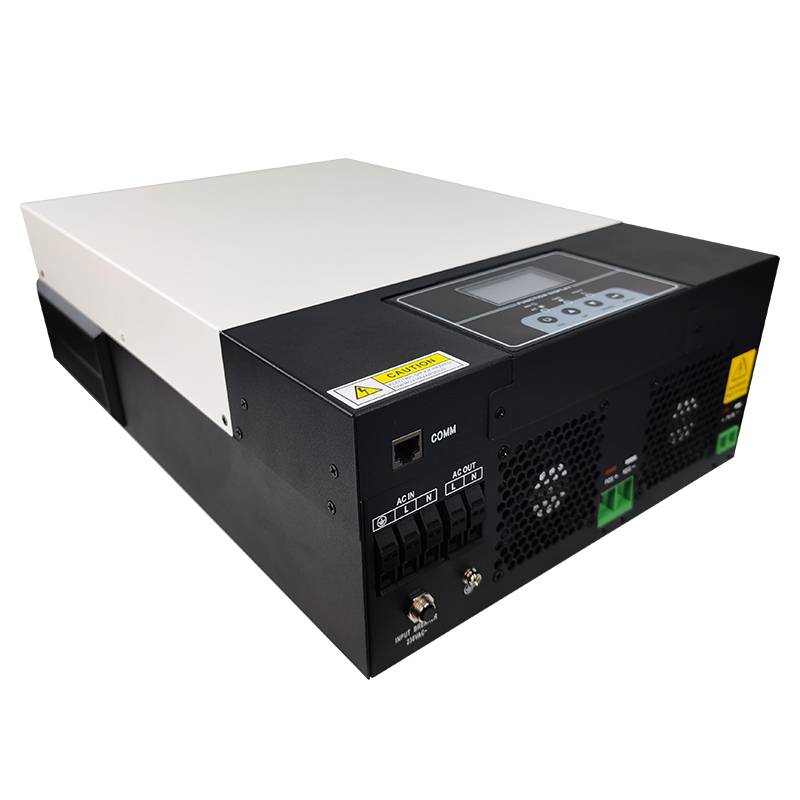

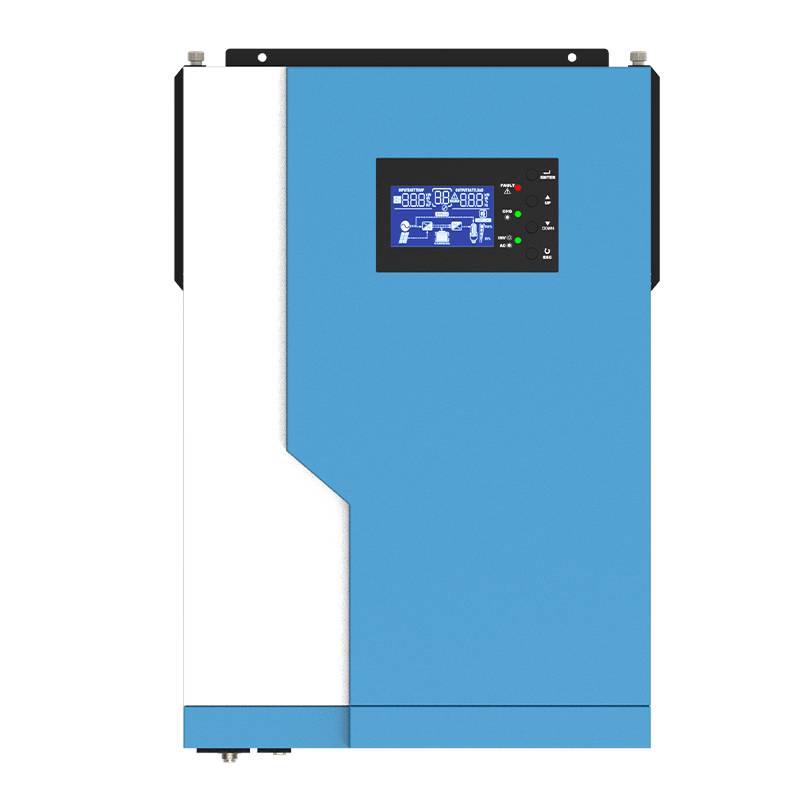

Product detail pictures:
