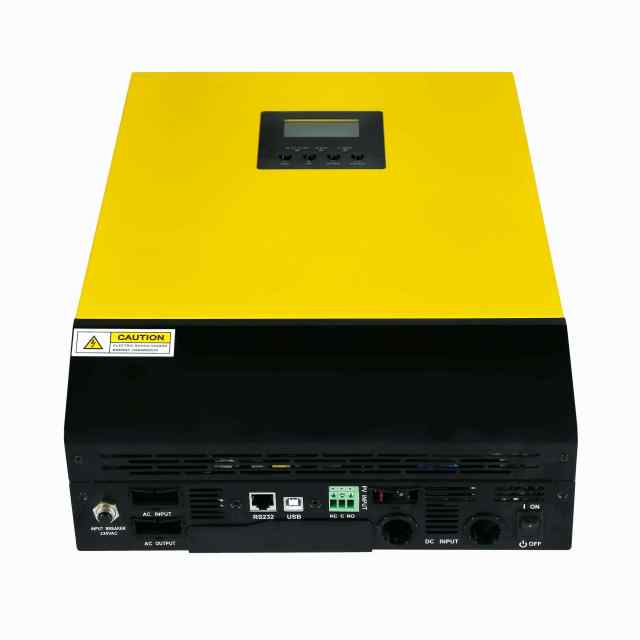

Technical Specifications:
| Model | HYG5032 | HYG5532 | HYG1033 | ||
| PHASE | 1-phase in/1 phase out | 1-phase in/1 phase out | 3-phase in/3-phase out | ||
| Max. PV INPUT POWER | 5000W | 6500W | 14850W | ||
| Rated Output Power | 5000W | 5500W | 10000W | ||
| Maximum Charging Power | 4800 W | 2880 W | 9600 W | ||
| GRID TIE OPERATION | |||||
| PV INPUT (DC) | |||||
| Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC | 360 VDC/500 VDC | 720 VDC/900 VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 225 VDC/250 VDC | 116 VDC/150 VDC | 320 VDC/350 VDC | ||
| MPP Voltage Range | 250 VDC~850 VDC | 120 VDC~450 VDC | 400 VDC~800 VDC | ||
| Number of MPP Trackers/ | 2/2x10A | 2/2x13A | 2/2x18.6A | ||
| Maximum Input Current | |||||
| GRID OUTPUT (AC) | |||||
| Nominal Output Voltage | 208/220/230/240 VAC | 208/220/230/240 VAC | 230 VAC (P-N)/ | ||
| 400 VAC (P-P) | |||||
| Output Voltage Range | 184 -265 VAC* | 184 -265 VAC* | 184 - 265 VAC* per phase | ||
| Nominal Output Current | 21A | 23.9A | 14.5A per phase | ||
| Power Factor | ＞ 0.99 | ||||
| EFFICIENCY | |||||
| Maximum Conversion Efficiency (DC/AC) | 96% | ||||
| European Efficiency@Vnominal | 95% | ||||
| OFF GRID OPERATION | |||||
| AC INPUT | |||||
| AC start-up Voltage/ | 120-140 VAC/180 VAC | 120-140 VAC/180 VAC | 120-140 VAC per phase/ | ||
| Auto Restart Voltage | 180 VAC per phase | ||||
| Acceptable Input Voltage Range | 170-280 VAC | 170-280 VAC | 170-280 VAC per phase | ||
| Max. AC Input Current | 21A | 40A | 40A | ||
| PV INPUT (DC) | |||||
| Max. DC Voltage | 900 VDC | 500 VDC | 900 VDC | ||
| MPP Voltage Range | 250 VDC~850 VDC | 120 VDC~450 VDC | 400 VDC~800 VDC | ||
| Number of MPP Trackers/Max. Input Current | 2/2x10A | 2/2x13A | 2/2x18.6A | ||
| BATTERY Mode Output (AC) | |||||
| Nominal Output Voltage | 202/208/220/230/240 VAC | 202/208/220/230/240 VAC | 230 VAC (P-N)/400 VAC (P-P) | ||
| Output Waveform | Pure Sine Wave | ||||
| Efficiency (DC to AC) | 93% | 93% | 91% | ||
| HYBRID OPERATION | |||||
| PV INPUT (DC) | |||||
| Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC | 360 VDC/500 VDC | 720 VDC/ 900 VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 225 VDC/ 250 VDC | 116 VDC/150 VDC | 320 VDC/ 350 VDC | ||
| MPP Voltage Range | 250 VDC~ 850 VDC | 120 VDC~450 VDC | 400 VDC~800 VDC | ||
| Number of MPP Trackers/Max. Input Current | 2/2x10A | 2/2x13A | 2/2x18.6A | ||
| GRID OUTOUT (AC) | |||||
| Nominal Output Voltage | 202/208/220/230/240 VAC | 202/208/220/230/240 VAC | 230 VAC (P-N)/ | ||
| 400 VAC (P-P) | |||||
| Output Voltage Range | 184-264.5 VAC* | 184-264.5 VAC* | 184-264.5 VAC* per phase | ||
| Nominal Output Current | 21A | 23.9A | 14.5A per phase | ||
| AC INPUT | |||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140 VAC/180 VAC | 120-140 VAC/180 VAC | 120-140 VAC per phase/ 180 VAC per phase | ||
| Acceptable Input Voltage Range | 170-280 VAC | 170-280 VAC | 170-280 VAC per phase | ||
| Max. AC Input Current | 30A | 30A | 40A | ||
| BATTERY MODE OUTPUT (AC) | |||||
| Nominal Output Voltage | 202/208/220/230/240 VAC | 202/208/220/230/240 VAC | 230 VAC (P-N)/ | ||
| 400 VAC(P-P) | |||||
| Efficiency (DC to AC) | 93% | 93% | 91% | ||
| BATTERY& CHARGER | |||||
| Battery DC Voltage | 48V | ||||
| Max. Charging Current | Default 60A | Default 60A, 10A-200A (Adjustable) | |||
| GENERAL | |||||
| PHYSICAL | |||||
| Dimension, D x W x H (mm) | 204.2 x 460x 600 | 110*450*445 | 167.5 x 500 x 622 | ||
| Net weight (kgs) | 29 | 16 | 45 | ||
| INTERFACE | |||||
| Communication Port | RS-232/USB and CAN Interface | ||||
| ENVIRONMENT | |||||
| Humidity | 0 ~90%RH | ||||
| Operating Temperature | -10 to 55 ° C | 0 to 40°C | -10 to 55 °C | ||
| Altitude | 0-1000 m** | ||||
