Applications
Local Area Networks,Cash Registers,Tax,Telecom,Postal,Radio and Television,Security Traffic,Electricity,Medical,Industrial Control,National Defense,Petrochemical,Ports and other important economic data field
Introduction

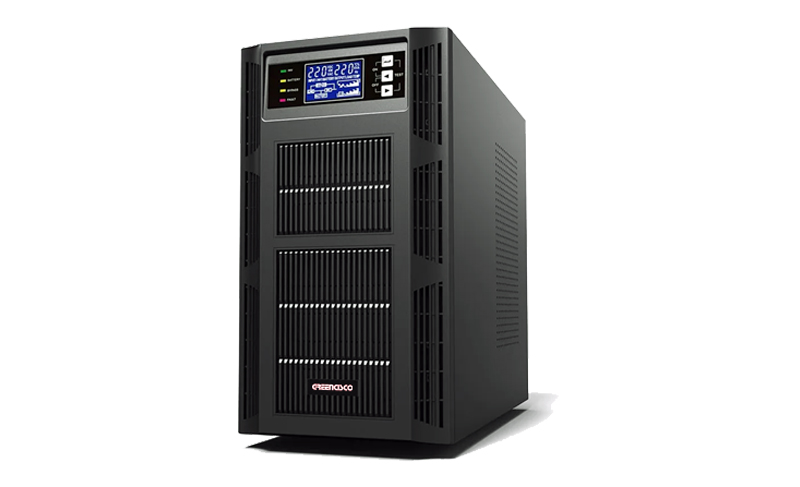

High frequency online UPS adopts the double conversion online architecture ideal for resolving all issues on power supply. This state-of-the-art solution is especially designed for eliminating the power loss, extra high or low voltage of utility power, voltage sags or damped oscillation, high-voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter immunity, and frequency fluctuation etc., delivering safe and reliable power supply guarantee for user's load.
Main Features
●Its cut-edge digital technology of DSP (Digital Signal Professor), can greatly improve the products performance and system reliability, and deliver a compact integration with higher power density ;
●Output power factor up to 0.9 - applicable to the tendency of future load evolution, and deliver higher payload capacity; Higher payload and overload capability, better load compatibility, and suitable for various load type; Total power factor up to 90% can minimize the power loss of UPS and utilization cost for user; High Scalability: fully meet the customer's demands; Emergency Power Off (EPO): UPS can be instantly shut off in case of any emergency; Powerful Interference immunity capability in compliance with EMC requirements of IEC61000 -4, deliver your device a clean electric environment.
●Flexible Configuration on Demand
High Scalability：fully meet the customer's demands; Online Intervention: safe and online intervention without any power supply interruption to load; Emergency Power Off (EPO): UPS can be instantly shut off in case of any emergency, Parallel Kit: realize the parallel extension and redundancy function, offer more flexibility and safety for user's power supply planning;
●Intelligent battery management
With its advanced intelligent charge control mode, UPS can automatically select the optimal charge mode as per the battery type and conditions, thus further maximizing the lifespan?of battery bank. In addition, the system can periodically conduct the charge & discharge management for the battery bank. User also can select the battery voltage on demands.
●The user can query and set the proper UPS control parameters for intelligent UPS management.Automatically identify and adapt to 50/60Hz power supply system, fulfilling the requirements?in various power supply systems.
●Perfect failure protection and alarm function: provide complete failure protection and clear alarm notification function in case of I/O over -voltage or under-voltage,battery over-charge?or under-voltage, overload, and short circuit.
●Compact Design, Lower Noise
With leading control technology and craftsmanship, this UPS can greatly increase the power density and reduce the footprint, therefore save more expensive space in your office environment.Additionally, its lower noise during operation can allow you a more comfort working environment.
●Rich Communication?
Provide RS232、USB interface and communication cable for local or remote power supply management；Provide intelligent slot available to Window's Web Power (SNMP),CMC or AS400 card (dry contact) for remote management and monitoring function.
●User-friendly interface
LCD display accurate UPS working environment and working status to the user, through the LCD display panel can be set output voltage and frequency,at the same time can be set ECO mode , convenient for user to operate the UPS
Specification
| Model | HP8118C plus 1KVA-10KVA | |||||||||
| Capacity | 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL | 6KT | 6KT-XL | 10KT | 10KT-XL |
900W | 1800W | 2700W | 5400W | 9KW | ||||||
| Input | ||||||||||
| Voltage | 220/230/240VAC Single phase 2 wire+G | |||||||||
| Voltage range | 115~300VAC | 120~275VAC | ||||||||
| Frequency | 50/60HZ | |||||||||
| Frequency range | 50HZ:(46~54HZ);60HZ;(56HZ~64HZ) | |||||||||
| Power factor | >0.98 | |||||||||
| Output | ||||||||||
| Voltage | 220/230/240VAC(1±2%) | |||||||||
| Frequency | 50/60Hz±0.05Hz | |||||||||
| Power factor | 0.9 | |||||||||
| Harmonic Distortion | Linear load<3%; Non-linear<6% | |||||||||
| Overload | load>110%for 47s;105% | |||||||||
| Current Crest Ratio | 3:1 | |||||||||
| Transfer time | 0 ms(AC mode→DC mode);(AC mode→Bypass<4ms) | |||||||||
| Battery | ||||||||||
| DC voltage | 24V | 48V | 72V | 96/192V | ||||||
| Charge time | 5 hours to 90% (it means standard model which battery inside UPS) | |||||||||
| Charge current | 1A | 4A/8A | 1A | 4A/8A | 1A | 4A/8A | 2A | 4A | 2A | 4A |
| LCD display | UPS status, input/output voltage and frequency,battery voltage, capacity,load temperature,history records,adjust Voltage,ECO mode | |||||||||
| Communication | Smart RS232, SNMP (Optional),USB(Optional) | |||||||||
| Working temperature | 0~40°C | |||||||||
| Humidity | 0~95% non-condensing | |||||||||
| Storage temperature | -25°C~55°C | |||||||||
| Elevation | 1500M | |||||||||
| Noise | <45dB | |||||||||
| Dimension(mm) | 145x355x220 | 190x383x318 | 190x433x318 | 248x500x616 | 248x500x460 | 248x500x616 | 248x500x460 | |||
| Weight(kgs) | 14 | 8 | 25.5 | 13 | 33.5 | 16.5 | 59 | 24 | 70 | 24 |
