Application
Widely used for solar power systems,wind power system,solar street light,UPS,telecommunication station,computers,medical equipments,X-ray equipments,power plant,banks,IT servers,elevator power,emergency power supply,singal light,toys and radio,Garden equipments,Wheel chairs,Portable equipments,Golf trolleys,Airport emergency illumination,Head flash units also for mining,Traffic lights,Street signs,Boats or buoys,toys, testing, distance measuring,Pump system,power plants,Burglar alarms,Fire alarm systems,Transmitter systems,Cash register systems,Emergency lights, signal systems,Telephone systems,Clocks systems,Mobile stations,Radar and satellite stations,railway,oil and gas,chemistry,power plant,meet standards:GB/T19638-2005,YD/T799-2002,JIS C8704-2006,IEC60896-21/22 2004
Features
Excellent long service life of 20 years in continuous float operation
With more than 2000 deep cycles at 80% DOD
Can normally work at extreme environment of -40C- +70C degree
Excellent low gassing and specially internal oxygen recombination
Excellent very low self-discharge performance
No acid stratification,no internal short circuits
Wide operation temperature range
Easy installation,handle and move
With gel electrolyte
Specifications
Please directly contact sales for detailed technical brochures.
| Model | Voltage (V) | Capacity (Ah) | Weight (Kg) | Max discharge (A/5sec) | Dimension (L*W*H)(TH) (mm) | Internal Resistance (mΩ) |
|---|---|---|---|---|---|---|

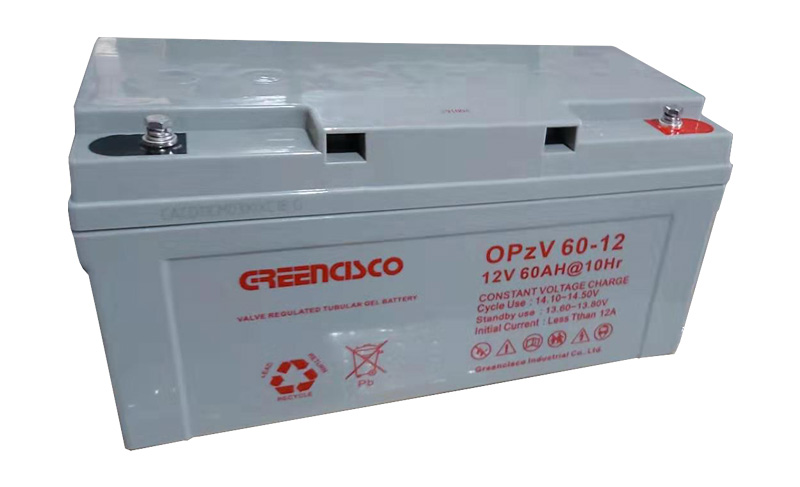

| OPzV60-12 | 12 | 60 | 23 | 600 | 260x169x210 | 10 |
| OPzV80-12 | 12 | 80 | 32 | 800 | 328x172x222 | 8.5 |
| OPzV100-12 | 12 | 100 | 37 | 1000 | 407x177x225 | 8 |
| OPzV120-12 | 12 | 120 | 46 | 1200 | 483x170x240 | 6.5 |
| OPzV140-12 | 12 | 140 | 54.5 | 1400 | 530x209x215 | 6.5 |
| OPzV150-12 | 12 | 150 | 59 | 1500 | 530x209x215 | 6.5 |
| OPzV160-12 | 12 | 160 | 60 | 1600 | 530x209x215 | 6.5 |
| OPzV180-12 | 12 | 180 | 66.5 | 1800 | 522x209x215 | 6 |
| OPzV200-12 | 12 | 200 | 78 | 2000 | 520x268x220 | 6 |
