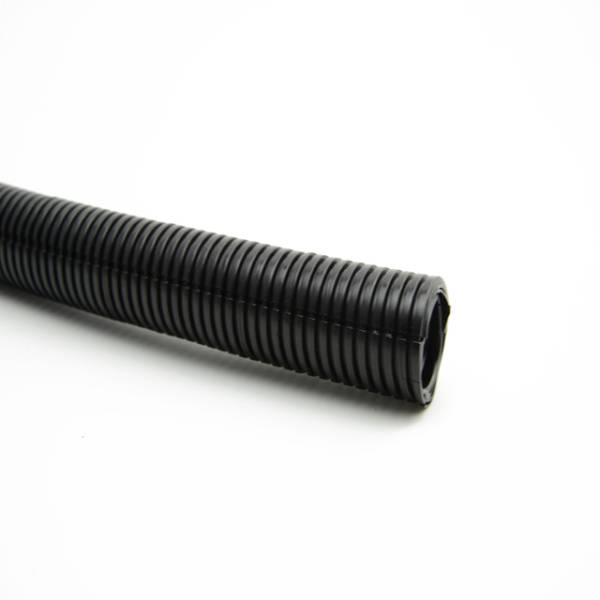

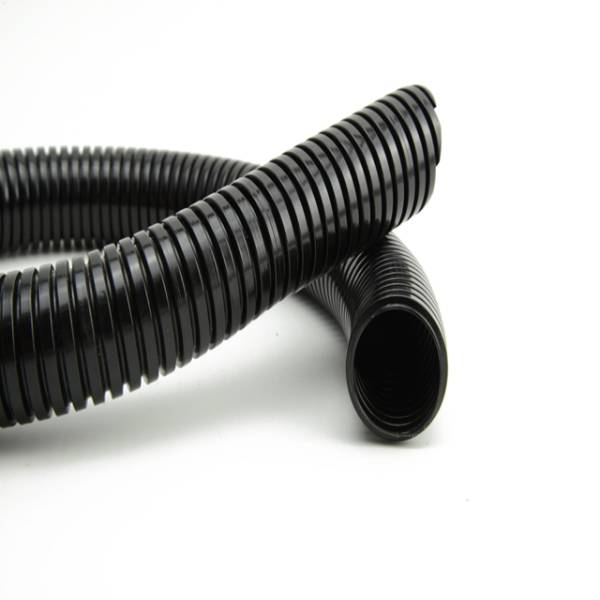

WY-HTPA
| Material | High temperature resistant Polyamide |

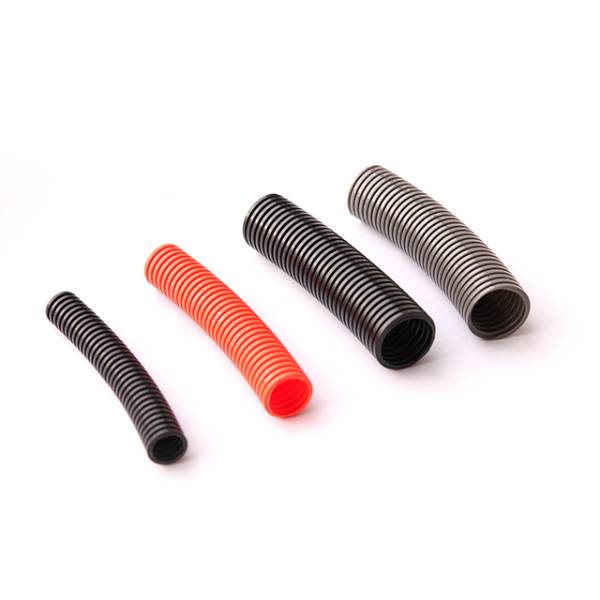

| Color | Black (RAL 9005), orange（RAL 2009） |
| Temperature Range | Min-40℃,Max150℃,Short-term170℃ |
| Flame-retardant | HB (UL94), according to FMVSS 302: <100mm/min |
| Properties | Flexible and excellent tenacity, glossy surface, wind resistant, high mechanical strength, resistant to oil, acid and solvents. anti-friction, excellent UV-resistant self-extinguishing, external installation, medium wall thickness free of halogen, phosphor and cadmium, passed RoHS. |
| Applications | Machine tool, mechanical building, electric control system etc. |
| Fit with | All Tubing connectors except WYTC open connectors |
| Article no. | Color | ID×OD | Stat.R | Dyn.R | Weight | PU |
| WY-HTPA | G/B | (mm×mm) | mm | mm | (kg/m±10%) | (m/ring) |
| WY-HTPA-AD8.0B | Black | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-HTPA-AD10.0B | Black | 6.5×10.0 | 15 | 35 | 0.02 | 100 |
| WY-HTPA-AD13.0B | Black | 9.5×13.0 | 20 | 45 | 0.024 | 100 |
| WY-HTPA-AD15.8B | Black | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-HTPA-AD18.5B | Black | 14.3×18.5 | 35 | 65 | 0.05 | 50 |
| WY-HTPA-AD21.2B | Black | 17.0×21.2 | 40 | 75 | 0.056 | 50 |
| WY-HTPA-AD25.5B | Black | 21.0×25.5 | 42 | 85 | 0.056 | 50 |
| WY-HTPA-AD28.5B | Black | 23.0×28.5 | 45 | 100 | 0.09 | 50 |
| WY-HTPA-AD31.5B | Black | 26.0×31.5 | 50 | 110 | 0.105 | 25 |
| WY-HTPA-AD34.5B | Black | 29.0×34.5 | 55 | 120 | 0.12 | 25 |
| WY-HTPA-AD42.5B | Black | 36.0×42.5 | 65 | 150 | 0.17 | 25 |
| WY-HTPA-AD54.5B | Black | 48.0×54.5 | 80 | 190 | 0.23 | 25 |

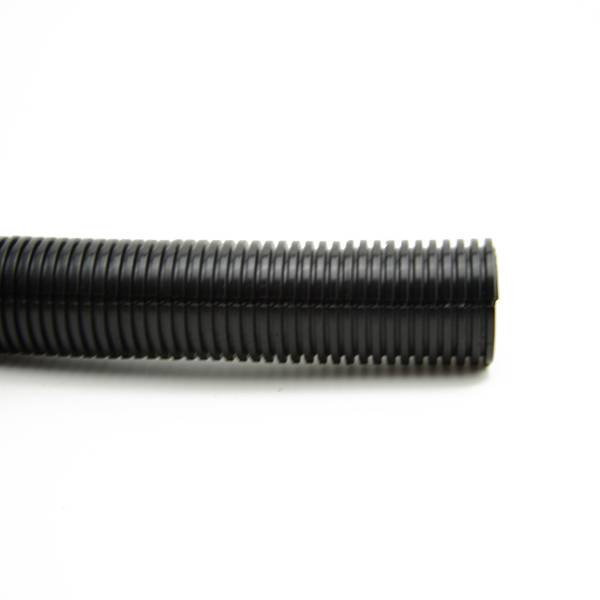

| WY-HTPA/S-AD8.0B | Slit Black | 5.7×8.1 | 12 | 30 | 0.008 | 200 |
| WY-HTPA/S-AD10.0B | Slit Black | 6.5×10.0 | 15 | 35 | 0.02 | 100 |
| WY-HTPA/S-AD13.0B | Slit Black | 9.5×13.0 | 20 | 45 | 0.024 | 100 |
| WY-HTPA/S-AD15.8B | Slit Black | 12.0×15.8 | 25 | 55 | 0.035 | 100 |
| WY-HTPA/S-AD18.5B | Slit Black | 14.3×18.5 | 35 | 65 | 0.05 | 50 |
| WY-HTPA/S-AD21.2B | Slit Black | 17.0×21.2 | 40 | 75 | 0.056 | 50 |
| WY-HTPA/S-AD25.5B | Slit Black | 21.0×25.5 | 42 | 85 | 0.056 | 50 |
| WY-HTPA/S-AD28.5B | Slit Black | 23.0×28.5 | 45 | 100 | 0.09 | 50 |
| WY-HTPA/S-AD31.5B | Slit Black | 26.0×31.5 | 50 | 110 | 0.105 | 25 |
| WY-HTPA/S-AD34.5B | Slit Black | 29.0×34.5 | 55 | 120 | 0.12 | 25 |
| WY-HTPA/S-AD42.5B | Slit Black | 36.0×42.5 | 65 | 150 | 0.17 | 25 |
| WY-HTPA/S-AD54.5B | Slit Black | 48.0×54.5 | 80 | 190 | 0.23 | 25 |
