Product features
■ Double-sided vapour plating structure, able to withstand high voltages and high over-current capability
■ Low self-inductance, low temperature rise
■ Dry construction, solid epoxy encapsulation

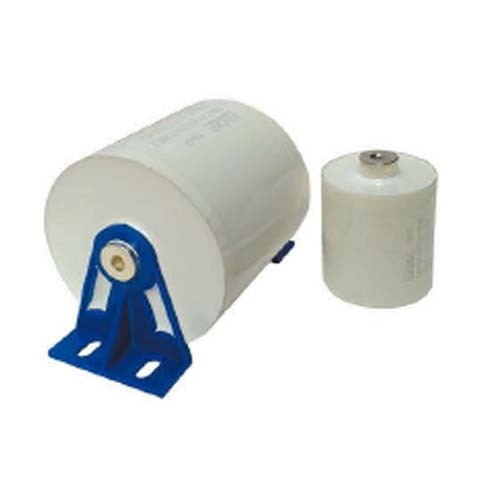

■ Electronic insulating tape wrapping (optional mounting bracket for simplicity and convenience)
■ Low equivalent series resistance
Note.
Please contact us for other electrical capacities, dimensions and performance parameters.
Typical applications
■ Widely used in series and parallel circuits for medium and high frequencies, e.g. in resonant circuits such as welding machines, induction heating, etc. Also used in other power electronics.
| Reference Standards | IEC61071 GB17702 IEC60110 GB/T3984 |
| Rated voltage | 1000VDC~3000VDC （500VAC~1000VAC） |
| Rated capacity (general purpose specification) | 0.33uF~10uF 1KHz @ +25℃ |
| Electrical capacity deviation | ±5 %（J） ±10 %（K）Other deviations optional @ 100Hz @+25℃ |
| Operating temperature range | -40℃ ～+85℃ |
| Storage temperature range | -40℃ ～+85℃ |
| Attrition factors （DF） | tgδ≤0.0006 @ 1KHz @ +25℃ |
| Insulation resistance（IR） | Typical values（Ris x C）: ≥5000S Temperature.: +25 °C @ 1min & Test voltage: 100 Vdc |
| Dielectric strength（Ut-t） | 1.5UnContinuous 10S |
| Electrode to shell voltage strength（Ut-c） | 3000VAC 2 seconds @+25℃ 50/60Hz |
| Life expectancy | 100,000hours at Un and Th≤ 70°C |
| Dielectric materials | Metallised double-sided vapour plated inner string construction |
| Electrode lead-out | Brass nuts（M6/M8）（M6≤4N.m，M8≤6N.m/Refer toIEC61881） |
| Outer protective surface / housing | Wrapped in white electrical insulation tape (optional with mounting bracket) |
| Internal filler | Insulation fillers（UL94- V0） |
Note: If the altitude of use exceeds 2000m, the effects of convection cooling and external insulation should be considered. | |
