首頁 > 所有系列 > Other > PM500-1SXXASM2 5.00mm Pitch Male Single Row Pluggable Terminal Blocks Vertical DIP With Two Side Screw for Energy Storage and Battery Systems

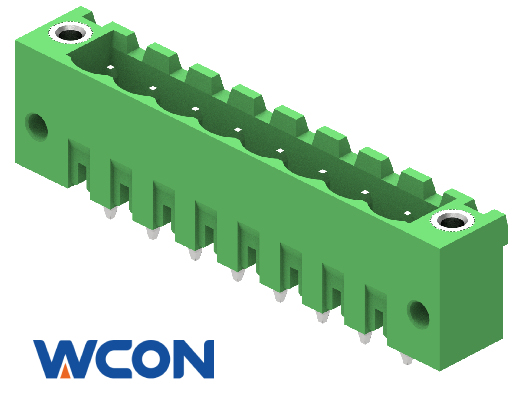

PM500-1SXXASM2 5.00mm Pitch Male Single Row Pluggable Terminal Blocks Vertical DIP With Two Side Screw for Energy Storage and Battery Systems

WCON ELECTRONICS(GUANGDONG) CO.,LTD 2002-11

China

Summary

PM500-1SXXASM2 5.00mm Pitch Male Single Row Pluggable Terminal Blocks with Two Side Screw, designed for high-reliability connectivity in energy storage and battery systems. Featuring vertical DIP mounting, durable copper alloy contacts with max 8 mΩ resistance, thermoplastic insulation (1000 MΩ min), and a wide operating temperature range (-40°C to +105°C), this terminal block ensures stable performance in demanding environments. Rated at 10 AMP / 300 VAC with 2000V withstand voltage, it offers excellent electrical safety and mechanical stability for industrial and renewable energy applications.More

Specifications

Rated Voltage:

300 V/AC

Operation Temperature:

-40°C - +105°C

Rated Current:

10 AMP

INQUIRY

Description Download

Rated Voltage	300 V/AC	Operation Temperature	-40°C - +105°C
Rated Current	10 AMP	Contact Material	Copper Alloy
Contact Resistance	8 mΩ Max	Insulator Material	Thermoplastic Plastics
Insulation Resistance	1000 MΩ Min	Contact Plating	Sn
Withstand Voltage	2000 V/AC,V/DC	Packaging	PE Bag

WCON ELECTRONICS(GUANGDONG) CO.,LTD

WCON ELECTRONICS(GUANGDONG) CO.,LTD

2002-11

China

high end precision connectors

Contact Supplier
