| AC output | The output voltage | 100~120VAC, 220~240VAC | ||||||
| output waveform | pure sine wave | |||||||
| rated power | 500W | |||||||
| power protection | 550W | |||||||
| Frequency Range | 50Hz/60Hz ±3Hz | |||||||
| Conversion efficiency | >92% | |||||||
| Short circuit protection | Yes, short circuit removal, automatic release | |||||||
| temperature protection | temperature over 65℃ protection | |||||||
| Operation method | Press the AC button (about 1~2S) to switch the machine on and off, and the screen will display the AC mark. | |||||||

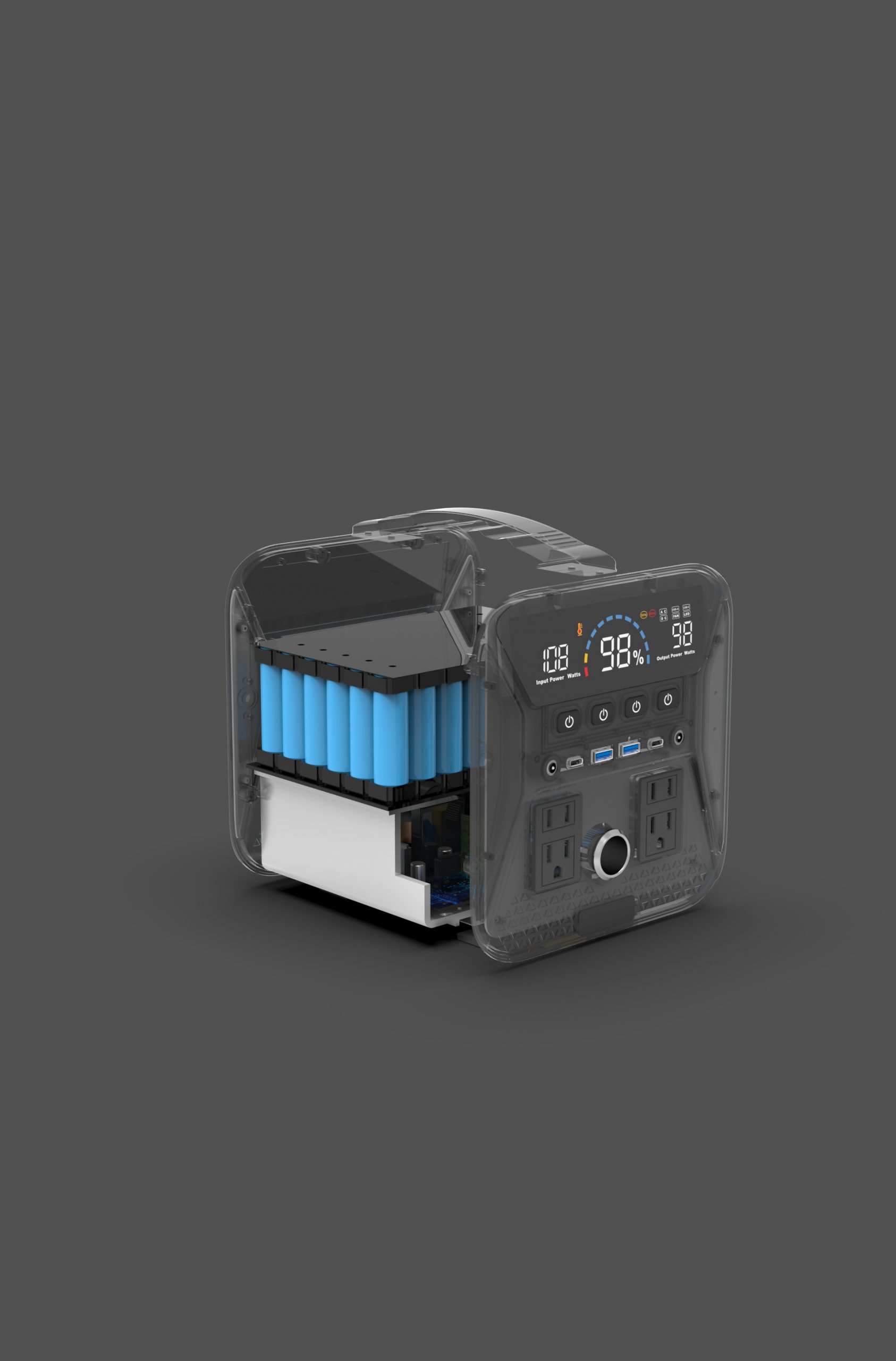

| Battery characteristics | Battery Type | 18650 – Ternary system | ||||||
| total capacity | 135200mAh | |||||||
| battery power | 500.24Wh | |||||||
| combination | 4S13P | |||||||
| Charging function | rear charging port | voltage range | Solar power (18~24VDC), adapter (19~24VDC), car charging (12~15VDC) | |||||
| maximum charging power | 120W (standard) | |||||||
| solar charging | Built-in MPPT algorithm to improve solar charging efficiency | |||||||
| front charging port | voltage range | Solar power (18~24VDC), adapter (19~24VDC), car charging (12~15VDC) | ||||||
| maximum charging power | 120W | |||||||
| solar charging | Built-in MPPT algorithm to improve solar charging efficiency | |||||||
| charging time | Single charging time | 3Hs | 5Hs | 5.5Hs | ||||
| Dual charging time | 1.5Hs | 2.5Hs | 3Hs | |||||
| Weight and Dimensions | Host weight | 6KG | ||||||
| Host size | 192*192*218（L)mm | |||||||
| Suit weight | 7.8Kg | |||||||
| Package dimensions | 315*285*320mm | |||||||
Shenzhen Apollo Energy holdings ltd was found at 2007, with a team of professional engineers that based on appliances system and new energy system technology plan design and development .
Our engineer team involved in ID , MD , Electronic Hardware and Software
Control , especially in the field of Energy torage and Power Supply , we had accumulated with profound technology experience and patents , can provide customers with one – stop service from ID to finished products .
Through years well accumulated of experience , we successively
launched a series of self – designed portable power station system , and then cooperate with a number of well – known domestic and foreign brands successfuly . At the same time , we registered Apollo as our B2B export brand . With our best confidence in our products , Apollo now have set up our own export sales engineer team . We will able to provide customers with great service on ODM / OEM and tech – support
