China
Cell type | LpTO-10Ah | |
Nominal voltage | 48.3V | |
Configuration | 21S2P | |
Nominal capacity | 20Ah | @25℃，±5% |
Nominal energy | 0.966Kwh | |
Max constant charging current | 40A | Customized MAX:6C |
Max constant discharging current rate | 100A | Customized MAX:10C |
Discharge Cut-off Voltage | 37.8V | |
Upper cut-off voltage | 58.8V | |
Peak discharge Current | 200A | |
System Weight | ~20Kg | |
BMS in built | yes | |
Bluetooth function | optional | |
GPS function | optional | |
CAN bus | optional | |
Life cycle | 10000+times | @standard working state. 80%DOD |

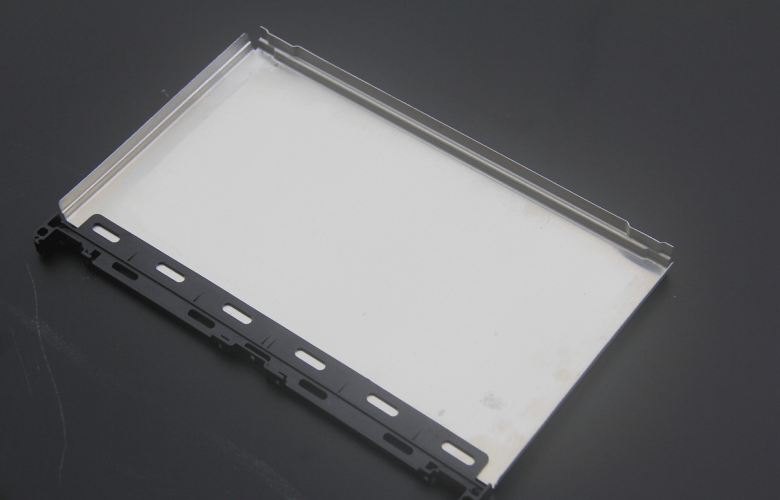

Al frame for cell
—–Good for heat dispersion
—–Good for vibration against
—– Assemble easily

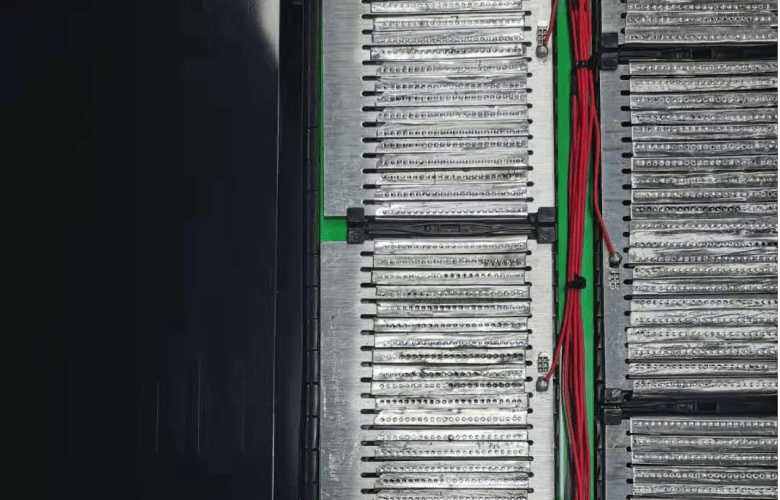

Core Parts
—–Bus Bar for high current
—–Laser welding
—–Insulating strip
—–Insulating plate
Battery capacity & voltage under 10 minutes full charge is almost equivalent to 1 hour full charge.
Non-flammable electrolyte is capable of fast charge.

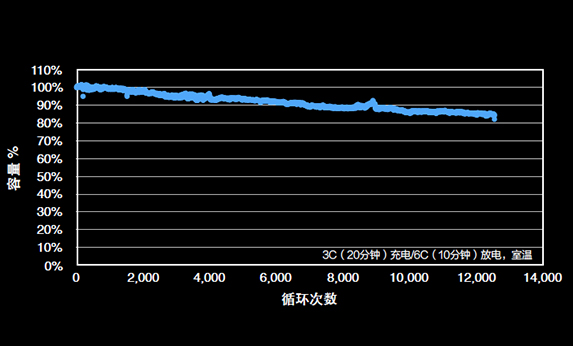

? Battery capacity remains 84% after 12000 cycles.
? Non-flammable electrolyte is featured with long life.
