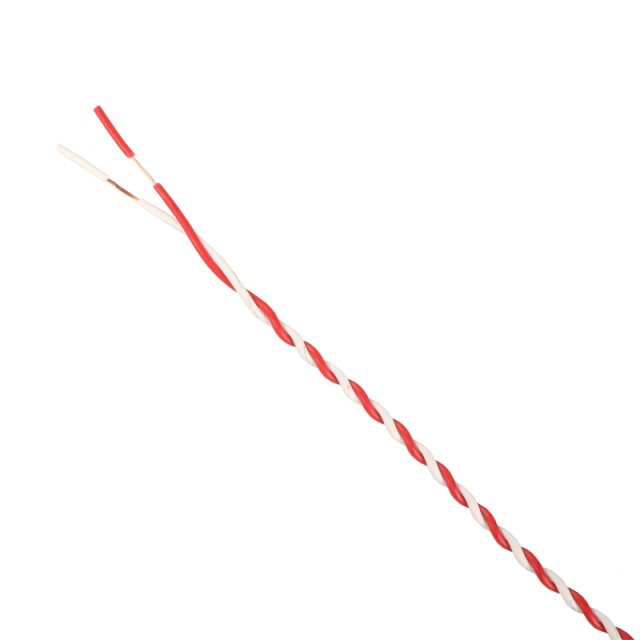

1. Stranded conductor, PVC insulated twisted pair
2. Rated temperature: 70°C
3. Rated voltage: 300/300V
4. Product standard: JB/T8734.3-2016
5. Application: Connecting wires for household appliances, instruments, and power lighting
Cores | acreage(mm2) | Construction(n/mm) | Nom. Thicknes(t/mm) | Insulation Diameter(mm) | Max.DC Resistance at20°C (Ω/KM) | Reference Weight(kg/km) |
2 | 0.5 | 28/0.15 | 0.8 | 2.55 | 39.0 | 24 |
2 | 0.75 | 42/0.15 | 0.8 | 2.75 | 26.0 | 30 |
