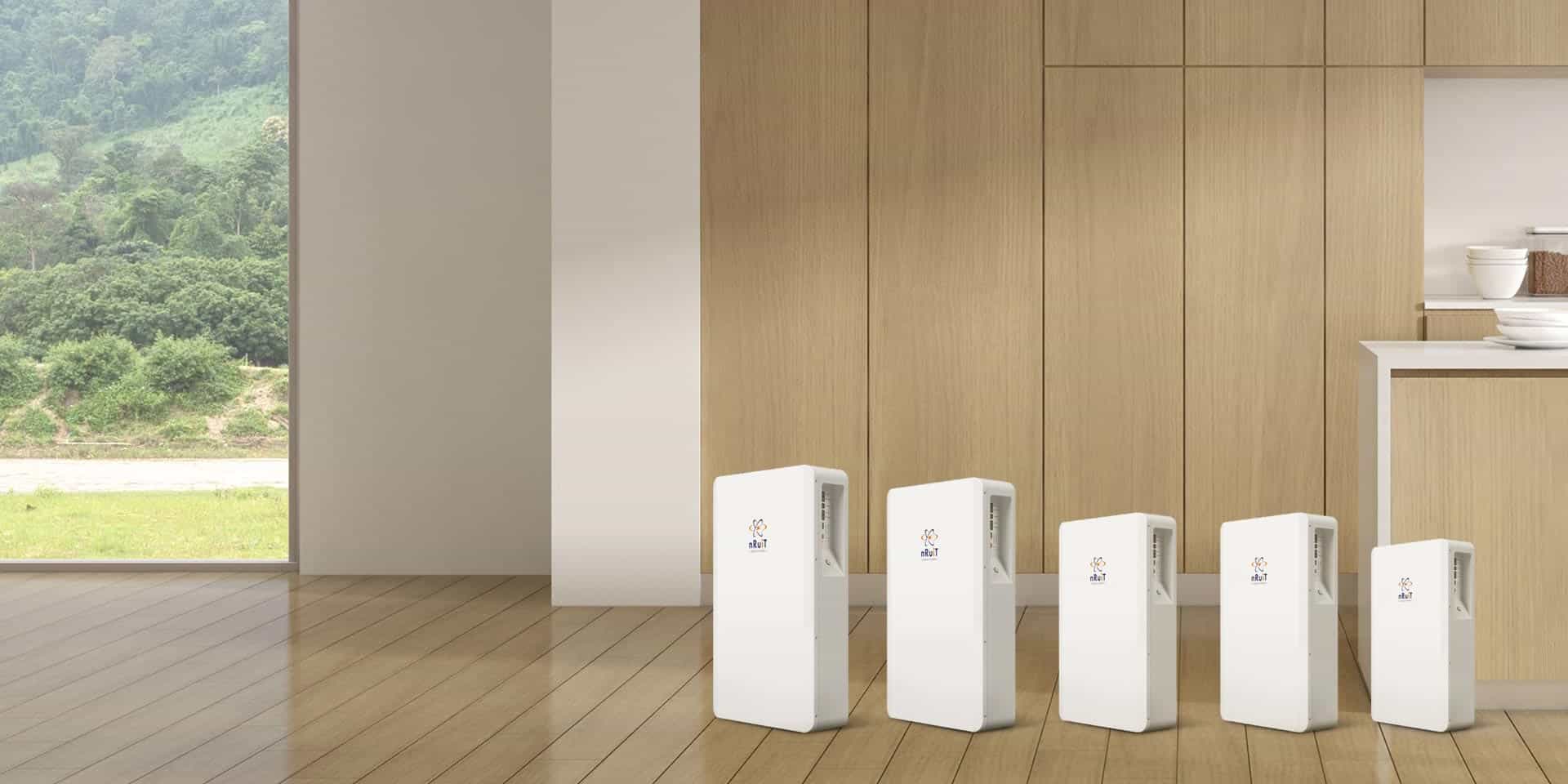

Powerporter is a lithium-ion battery that can store electrical energy and outputs DC current. Powerporter only maintains electrical connection with the inverter. The electrical energy generated by the PV is converted by the inverter Dc to DC and stored in the connected Powerporter. When Powerporter is needed, Powerporter’s electrical energy is converted by the inverter DC to AC and transmitted to the home grid to provide power for household appliances.
(Note: The actual Residential ESS may also include electrical equipment such as distribution boxes and metering meters)
| Battery data | |
| Rated voltage | 51.2V |
| Rated energy | 14.33kWh |
| Nominal capacity | 280Ah |
| Discharge voltage | 45~54V |
| Charge voltage | 51.5V~54V |
| Operating temperature | 0℃ ~ 45℃ (Charge),-20℃ ~ 45℃ (Discharge) |
| Continuous charge current | 140A |
| Peak charge current | 200A |
| Continuous discharge current | 140A |
| Peak discharge current | 200A |
| Rated discharge power | 7000W |
| Communication protocol | CAN2.0 / RS485 |
| General data | |
| IP protection level | IP31 |
| Extensibility | Support parallel connection (refer to the user manual) |
| DOD | 90% |
| Lnstallation method | Wall mounted or floor standing |
| Dimension | 980*460*240mm |
| Weight | 122kg |
| Authentication | UN, CE |
| Compatible inverter | GoodWe/Deye/Megarevo/Growatt/Lux Power/TBB/Victron/Srne/Must/Senergy/Voltronic /Aotai/Sofar/Sma, etc. |
UN38.3、CE、IEC62619
* When the temperature is below 0 ℃ or above 45℃, the performance will be limited.
