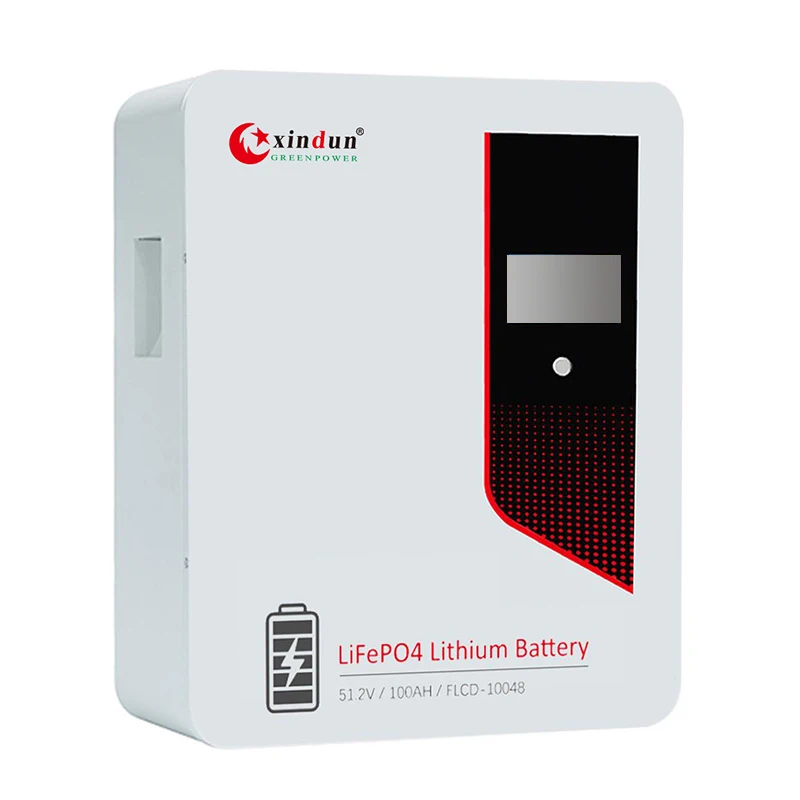

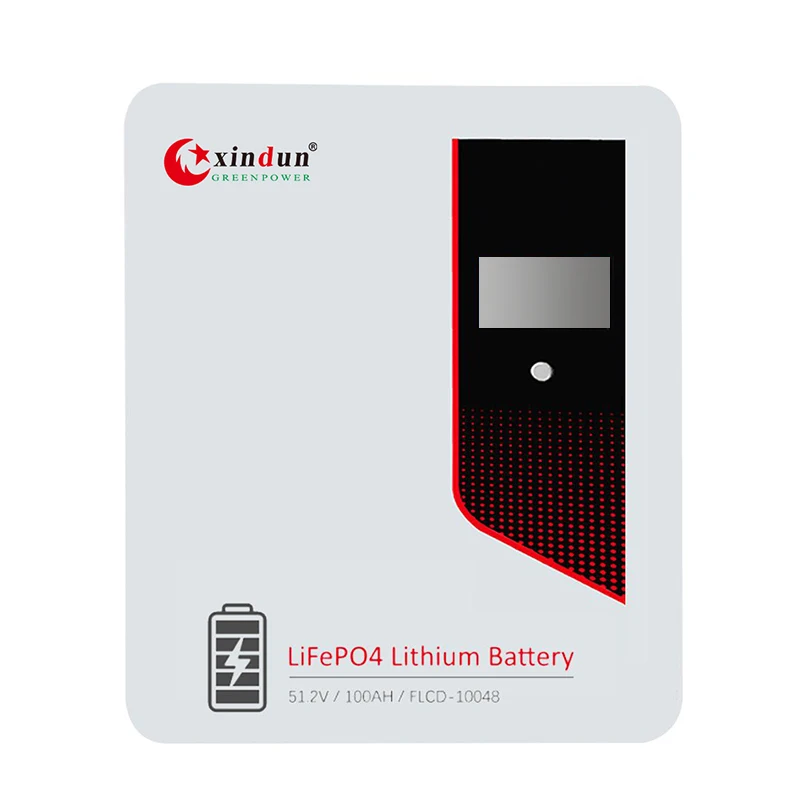

Power Wall 5Kw 51.2V 24 Volt 48V 200Ah 100Ah Lifepo4 Lithium Ion Battery Portable Solar Panel Power Batteries for Solar Systems

Guangdong XINDUN Power Technology Co., Ltd.

Guangdong

Summary

No.1601365270239

$410.00

Specifications

Color:

White

OEM/ODM

Capacity:

280AH

200 AH

100 Ah

Energy:

5 kWh

15 kWh

10 kWh

2.5 kWh

INQUIRY

Description Download

The Xindun High-Capacity 5kW 48V/51.2V 100Ah-200Ah LiFePO4 Battery offers reliable solar power storage with advanced BMS. It supports hybrid and off-grid systems, delivering stable energy with over 6000 cycles at 80% DOD. Designed for home and commercial use, its compact wall-mounted design simplifies installation. This battery provides efficient and dependable power management for various applications, ensuring long-lasting performance in any setup.

Key attributes

System Voltage

51.2 V / 25.6 V

Output Power Range

5~10 kWh

Grid connection

Hybrid grid, Off grid

Battery Type

Lithium Ion

System Type

Wall-mounted

Model Number

XD-XHS Lithium ion Battery

Brand Name

Xindun

Place of Origin

Guangdong, China

Dimension (L*W*H)

410*420*180mm~850*550*270mm

Weight

24kg~137kg

Communication Port

CAN, rs232, rs485

Protection Class

IP21

Cycle life

6000+ Cycle @ 80% DOD

OEM/ODM

Customization Supported

Max Discharge Current

100A/200A/customzied

Application

Solar Energy Storage Systems

Certification

UN38.3/ MSDS/CE/ROHS/ FCC

Product name

Portable Solar Panel Power Batteries For Solar Systems

Warranty

5 Years

BMS

Built-in BMS

Capacity

100Ah 200Ah 280Ah

Keywords

Lithium ion Lifepo4 Battery

Packaging and delivery

Selling Units

Single item

Product Description

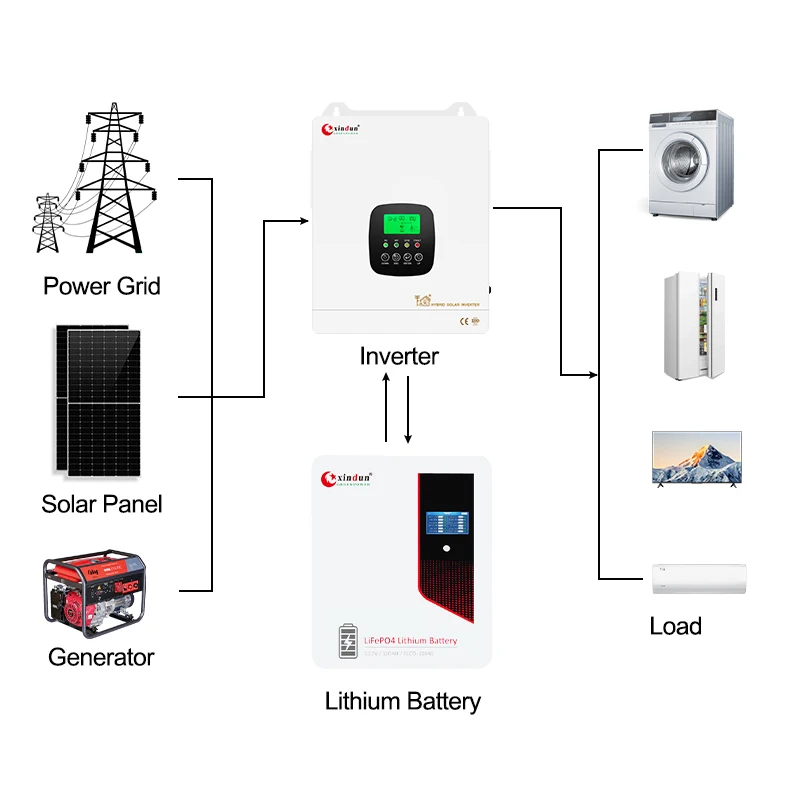

Wiring Diagram

Specification

Model	XHS-100256	XHS-200256	XHS- 100512	XHS- 200512	XHL- -280512
Standard valtage	25.6V	25.6V	51.2V	51.2V	51.2V
Standard capacity	100Ah	200Ah	100Ah	200Ah	280AH
Rated capacity	2.56KWh	5.12KWh	5.12KWh	10.24KWh	14.336KWh
Working valtage	21.6V-28.8V	21.6V-28.8V	43.2V-57.6V	43.2V-57.6V	/
Standard charging current	50A	100A	50A	100A	100A
Standard discharging current	100A	200A	100A	200A	200A
Suggested DOD	80%	80%	80%	80%	80%
Cycle life	>6000 cycles	>6000 cycles	>6000 cycles	>6000 cycles	>6000 cycles
IP Rating	IP21(IP21 optional)	IP21(IP21 optional)	IP21(IP21 optional)	IP21(IP21 optional)	IP30
Discharge operating temperature	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃
Charge operating temperature	0℃~45℃	0℃~45℃	0℃~45℃	0℃~45℃	0℃~60℃
Maximum parallel	15PCS	15PCS	15PCS	15PCS	15PCS
Interface	RS232/ CAN/ RS485( WIFI/ BT optional)	RS232/ CAN/ RS485( WIFI/ BT optional)	RS232/ CAN/ RS485( WIFI/ BT optional)	RS232/ CAN/ RS485( WIFI/ BT optional)	RS232/ CAN/ RS485(WIFI/ BT optional)
Display	LED touch screen	LED touch screen	LED touch screen	LED touch screen	LED touch screen
Waranty	5 Years	5 Years	5 Years	5 Years	10 Years
Certificate	UN38.3/ MSDS/CE/ROHS/ FCC	UN38.3/ MSDS/CE/ROHS/ FCC	UN38.3/ MSDS/CE/ROHS/ FCC	UN38.3/ MSDS/CE/ROHS/ FCC	CE ， FCC ， ROHS
NW.(kg)	24kg	48kg	48kg	91kg	/
GW. (kg)	31kg	55kg	55kg	109kg	137kg
Product size( mm)	410420180mm	540460200mm	540460200mm	790560200mm	850550270mm
Padeage size( mm)	530510280mm	620540300mm	620540300mm	850590270mm	/
