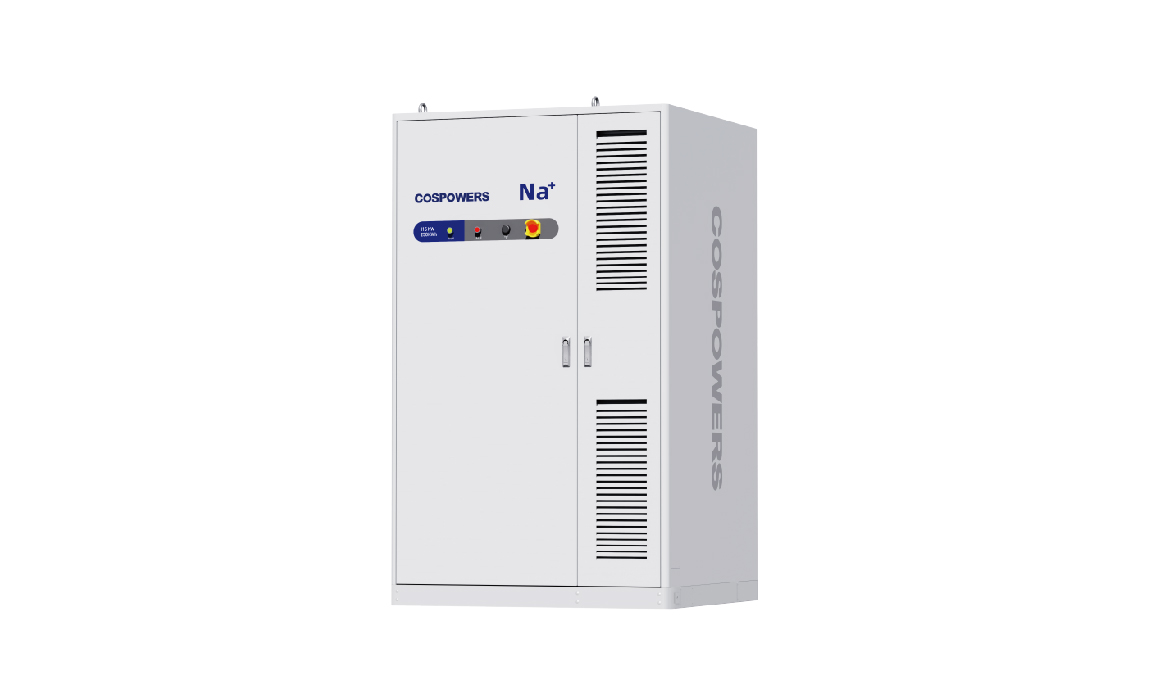

| Parameters/Model | PowerEco-100kW/200kWh | |
| DC side parameter | Max Voltage | 950V |
| Max Current | 171A | |
| Voltage Range | 650~950V | |
Max.Apparent Output | 115.5kVA | |
| AC grid connection parameter | Max.Input Active Power | 105kW |
| Nominal Voltage | 400Vac,3P3W+PE/3P4W+PE | |
| Max.Input Current | 167A | |
| Nominal Input Frequency | 50/60Hz | |
Nominal Voltage | 400Vac,3P3W+PE/3P4W+PE | |
AC off-grid parameter | Max Output Current | 167A |
| Nominal Frequency | 50/60Hz | |
| Cell capacity | 100Ah(LFP) | |
| Battery parameters | Capacity | 224kWh |
| Nominal Voltage | 748.8V | |
| Voltage Range | 655.2~819V | |
| C Rate | ≤0.5C | |
| HMI | 7 inch LCD touch screen | |
| System level parameters | Fire Safety | Aerosol fire fighting |
| Cooling Method | Air cooling | |
| Operating Temp. | -20~55℃ | |
| IP Degree | IP54 | |
| Dimension(W*D*H) | <1600*1100*2200mm | |
| Weight | <2700Kg | |
| Others | MPPT | 100kW(Optional) |
| STS | 200kW(Optional) | |
| Certification | IEC62619、CE-EMC、CE-LVD、CE-RED | |
